DESCRIPTION AND OPERATION

CIRCUIT FUNCTIONS . . . . . . . . . . . . . . . . . . . . . 4 CIRCUIT INFORMATION . . . . . . . . . . . . . . . . . . . 4 CONNECTOR INFORMATION . . . . . . . . . . . . . . . 7 ELECTROSTATIC DISCHARGE (ESD)

SENSITIVE DEVICES . . . . . . . . . . . . . . . . . . . . 8 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . 1 NOTES, CAUTIONS, and WARNINGS . . . . . . . . . 7 SECTION IDENTIFICATION . . . . . . . . . . . . . . . . . 5 SPLICE LOCATIONS . . . . . . . . . . . . . . . . . . . . . . 7 SYMBOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 TAKE OUTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 TERMINOLOGY . . . . . . . . . . . . . . . . . . . . . . . . . . 7 DIAGNOSIS AND TESTING

INTERMITTENT AND POOR CONNECTIONS . . . . 9

DESCRIPTION AND OPERATION

INTRODUCTION

Chrysler wiring diagrams are designed to provide information regarding the vehicles wiring content. In order to effectively use Chrysler wiring diagrams to diagnose and repair a Chrysler vehicle, it is important to understand all of their features and characteristics.

Diagrams are arranged such that the power (B+) side of the circuit is placed near the top of the page, and the ground (B-) side of the circuit is placed near the bottom of the page.

All switches, components, and modules are shown in the at rest position with the doors closed and the key removed from the ignition.

8W-01 GENERAL INFORMATION

INDEX

page page

TROUBLESHOOTING TESTS . . . . . . . . . . . . . . . . 9 TROUBLESHOOTING TOOLS . . . . . . . . . . . . . . . 8 TROUBLESHOOTING WIRING PROBLEMS . . . . 10 SERVICE PROCEDURES

CONNECTOR AND TERMINAL REPLACEMENT . 12 CONNECTOR REPLACEMENT . . . . . . . . . . . . . . 12 DIODE REPLACEMENT . . . . . . . . . . . . . . . . . . . 14 TERMINAL REPLACEMENT . . . . . . . . . . . . . . . . 13 TERMINAL/CONNECTOR REPAIR-MOLEX

CONNECTORS . . . . . . . . . . . . . . . . . . . . . . . . 11 TERMINAL/CONNECTOR REPAIR—THOMAS

AND BETTS CONNECTORS . . . . . . . . . . . . . . 11 WIRING REPAIR . . . . . . . . . . . . . . . . . . . . . . . . 10 SPECIAL TOOLS

WIRING/TERMINAL . . . . . . . . . . . . . . . . . . . . . . 15

Components are shown two ways. A solid line around a component indicates that the component is complete. A dashed line around a component indicates that the component being shown is not complete. Incomplete components have a reference number to indicate the page where the component is shown complete.

It is important to realize that no attempt is made on the diagrams to represent components and wiring as they appear on the vehicle. For example, a short piece of wire is treated the same as a long one. In addition, switches and other components are shown as simply as possible, with regard to function only.

CIRCUIT INFORMATION

Each wire shown in the diagrams contains a code which identifies the main circuit, part of the main circuit, gage of wire, and color (Fig. 1).

STANDARD

COLOR CODE COLOR

TRACER

COLOR

BL BLUE WT

BK BLACK WT

BR BROWN WT

DB DARK BLUE WT

DG DARK GREEN WT

GY GRAY BK

LB LIGHT BLUE BK

LG LIGHT GREEN BK

OR ORANGE BK

PK PINK BK or WT

RD RED WT

TN TAN WT

VT VIOLET WT

WT WHITE BK

YL YELLOW BK

* WITH TRACER

CIRCUIT FUNCTIONS

All circuits in the diagrams use an alpha/numeric code to identify the wire and its function. To identify which circuit code applies to a system, refer to the Circuit Identification Code Chart. This chart shows the main circuits only and does not show the secondary codes that may apply to some models.

CIRCUIT FUNCTION

A BATTERY FEED

B BRAKE CONTROLS

C CLIMATE CONTROLS

D DIAGNOSTIC CIRCUITS

E DIMMING ILLUMINATION CIRCUITS

F FUSED CIRCUITS

G MONITORING CIRCUITS (GAUGES)

H OPEN

I NOT USED

J OPEN

K POWERTRAIN CONTROL MODULE

L EXTERIOR LIGHTING

M INTERIOR LIGHTING

N NOT USED

O NOT USED

P POWER OPTION (BATTERY FEED)

Q POWER OPTIONS (IGNITION FEED)

R PASSIVE RESTRAINT

S SUSPENSION/STEERING

T TRANSMISSION/TRANSAXLE/ TRANSFER CASE

U OPEN

V SPEED CONTROL, WIPER/WASHER

W OPEN

X AUDIO SYSTEMS

Y OPEN

Z GROUNDS

SECTION IDENTIFICATION

The wiring diagrams are grouped into individual sections. If a component is most likely found in a particular group, it will be shown complete (all wires, connectors, and pins) within that group. For example, the Auto Shutdown Relay is most likely to be found in Group 30, so it is shown there complete. It can, however, be shown partially in another group if it contains some associated wiring.

GROUP TOPIC

8W-01 thru 8W-09 General Information and Diagram Overview

8W-10 thru 8W-19 Main Sources of Power and Vehicle Grounding

8W-20 thru 8W-29 Starting and Charging

8W-30 thru 8W-39 Powertrain/Drivetrain Systems

8W-40 thru 8W-49 Body Electrical items and A/C

8W-50 thru 8W-59 Exterior Lighting, Wipers, and Trailer Tow

8W-60 thru 8W-69 Power Accessories

8W-70 Splice Information

8W-80 Connector Pin Outs

8W-90 Connector Locations (including grounds)

8W-95 Splice Locations

SYMBOLS

International symbols are used throughout the wiring diagrams. These symbols are consistent with those being used around the world

TERMINOLOGY

This a list of terms with there definitions used in the wiring diagrams.

Built-Up-Export . . . . . . . . . . .Vehicles Built For Sale

In Markets Other Than North America Except-Built-Up-Export . . . . .Vehicles Built For Sale

In North America LHD . . . . . . . . . . . . . . . . . .Left Hand Drive Vehicles RHD. . . . . . . . . . . . . . . . .Right Hand Drive Vehicles ATX . . . .Automatic Transmission-Front Wheel Drive MTX . . . . .Manual Transmission-Front Wheel Drive AT. . . . . .Automatic Transmission-Rear Wheel Drive MT . . . . . . .Manual Transmission-Rear Wheel Drive SOHC . . . . . . . . . . . .Single Over Head Cam Engine DOHC . . . . . . . . . . . . .Dual Over Head Cam Engine

CONNECTOR INFORMATION

CAUTION: Not all connectors are serviced. Some connectors are serviced only with a harness. A typical example might be the Supplemental Restraint System connectors. Always check parts availability before attempting a repair.

IDENTIFICATION

In-line connectors are identified by a number, as follows:

• In-line connectors located on the engine compartment harness are C100 series numbers.

• Connectors located on the instrument panel harness are C200 series numbers.

• Connectors located on the body harness are C300 series numbers.

• Jumper harness connectors are C400 series numbers.

• Grounds and ground connectors are identified with a “G” and follow the same series numbering as the in-line connector. Component connectors are identified by the component name instead of a number (Fig. 2). Multiple connectors on a component use a C1, C2, etc. identifier (Fig. 3).

LOCATIONS

Section 8W-90 contains connector/ground location illustrations. The illustrations contain the connector name (or number)/ground number and component identification. Connector/ground location charts in Section 8W-90 reference the illustration number for components and connectors.

Section 8W-80 shows each connector and the circuits involved with that connector. The connectors are identified using the name/number on the Diagram pages.

SPLICE LOCATIONS

Splice Location charts in Section 8W-70 show the entire splice, and provide references to other sections the splice serves.

Section 8W-95 contains illustrations that show the general location of the splices in each harness. The illustrations show the splice by number, and provide a written location.

NOTES, CAUTIONS, and WARNINGS

Throughout this group additional important information is presented in three ways; Notes, Cautions, and Warnings.

NOTES are used to help describe how switches or components operate to complete a particular circuit. They are also used to indicate different conditions that may appear on the vehicle. For example, an up-to and after condition.

CAUTIONS are used to indicate information that could prevent making an error that may damage the vehicle.

WARNINGS provide information to prevent personal injury and vehicle damage. Below is a list of general warnings that should be followed any time a vehicle is being serviced.

WARNING: ALWAYS WEAR SAFETY GLASSES FOR EYE PROTECTION.

WARNING: USE SAFETY STANDS ANYTIME A PRO- CEDURE REQUIRES BEING UNDER A VEHICLE.

WARNING: BE SURE THAT THE IGNITION SWITCH ALWAYS IS IN THE OFF POSITION, UNLESS THE PROCEDURE REQUIRES IT TO BE ON.

WARNING: SET THE PARKING BRAKE WHEN WORKING ON ANY VEHICLE. AN AUTOMATIC TRANSMISSION SHOULD BE IN PARK. A MANUAL TRANSMISSION SHOULD BE IN NEUTRAL.

WARNING: OPERATE THE ENGINE ONLY IN A WELL-VENTILATED AREA.

WARNING: KEEP AWAY FROM MOVING PARTS WHEN THE ENGINE IS RUNNING, ESPECIALLY THE FAN AND BELTS.

WARNING: TO PREVENT SERIOUS BURNS, AVOID CONTACT WITH HOT PARTS SUCH AS THE RADIA- TOR, EXHAUST MANIFOLD(S), TAIL PIPE, CATA- LYTIC CONVERTER, AND MUFFLER.

WARNING: DO NOT ALLOW FLAME OR SPARKS NEAR THE BATTERY. GASES ARE ALWAYS PRESENT IN AND AROUND THE BATTERY.

WARNING: ALWAYS REMOVE RINGS, WATCHES, LOOSE HANGING JEWELRY, AND LOOSE CLOTH- ING.

TAKE OUTS

The abbreviation T/O is used in the component location section to indicate a point in which the wiring harness branches out to a component.

ELECTROSTATIC DISCHARGE (ESD) SENSITIVE DEVICES

All ESD sensitive components are solid state and a symbol (Fig. 4) is used to indicate this. When handling any component with this symbol comply with the following procedures to reduce the possibility of electrostatic charge build up on the body and inadvertent discharge into the component. If it is not known whether the part is ESD sensitive, assume that it is.

(1) Always touch a known good ground before handling the part. This should be repeated while handling the part and more frequently after sliding across a seat, sitting down from a standing position, or walking a distance.

(2) Avoid touching electrical terminals of the part, unless instructed to do so by a written procedure.

(3) When using a voltmeter, be sure to connect the ground lead first.

(4) Do not remove the part from its protective packing until it is time to install the part.

(5) Before removing the part from its package, ground the package to a known good ground on the vehicle.

DIAGNOSIS AND TESTING

TROUBLESHOOTING TOOLS

When diagnosing a problem in an electrical circuit there are several common tools necessary. These tools are listed and explained below.

• Jumper Wire - This is a test wire used to connect two points of a circuit. It can be used to bypass an open in a circuit.

WARNING: NEVER USE A JUMPER WIRE ACROSS A LOAD, SUCH AS A MOTOR, CONNECTED BETWEEN A BATTERY FEED AND GROUND.

• Voltmeter - Used to check for voltage on a circuit. Always connect the black lead to a known good ground and the red lead to the positive side of the circuit.

CAUTION: Most of the electrical components used in today's vehicle are solid state. When checking voltages in these circuits use a meter with a 10-megohm or greater impedance rating.

• Ohmmeter - Used to check the resistance between two points of a circuit. Low or no resistance in a circuit means good continuity.

CAUTION: - Most of the electrical components used in today's vehicle are Solid State. When checking resistance in these circuits use a meter with a 10- megohm or greater impedance rating. In addition, make sure the power is disconnected from the circuit. Circuits that are powered up by the vehicle electrical system can cause damage to the equipment and provide false readings.

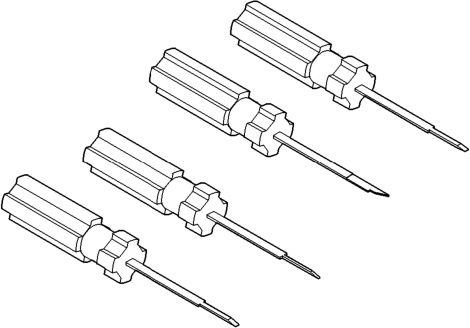

• Probing Tools - These tools are used for probing terminals in connectors (Fig. 5). Select the proper size tool from Special Tool Package 6807, and insert it into the terminal being tested. Use the other end of the tool to insert the meter probe.

INTERMITTENT AND POOR CONNECTIONS

Most intermittent electrical problems are caused by faulty electrical connections or wiring. It is also possible for a sticking component or relay to cause a problem. Before condemning a component or wiring assembly check the following items.

• Connectors are fully seated • Spread terminals, or terminal push out • Terminals in the wiring assembly are fully seated into the connector/component and locked in position

• Dirt or corrosion on the terminals. Any amount of corrosion or dirt could cause an intermittent problem

• Damaged connector/component casing exposing the item to dirt and moisture

• Wire insulation that has rubbed through causing a short to ground

• Some or all of the wiring strands broken inside of the insulation covering.

• Wiring broken inside of the insulation

TROUBLESHOOTING TESTS

Before beginning any tests on a vehicles electrical system use the Wiring Diagrams and study the circuit. Also refer to the Troubleshooting Wiring Problems in this section.

TESTING FOR VOLTAGE POTENTIAL

(1) Connect the ground lead of a voltmeter to a known good ground (Fig. 6).

(2) Connect the other lead of the voltmeter to the selected test point. The vehicle ignition may need to be turned ON to check voltage. Refer to the appropriate test procedure.

TESTING FOR CONTINUITY

(1) Remove the fuse for the circuit being checked or, disconnect the battery.

(2) Connect one lead of the ohmmeter to one side of the circuit being tested (Fig. 7).

(3) Connect the other lead to the other end of the circuit being tested. Low or no resistance means good continuity.

TESTING FOR A SHORT TO GROUND

(1) Remove the fuse and disconnect all items involved with the fuse. (2) Connect a test light or a voltmeter across the terminals of the fuse.

(3) Starting at the fuse block, wiggle the wiring harness about six to eight inches apart and watch the voltmeter/test lamp.

(4) If the voltmeter registers voltage or the test lamp glows, there is a short to ground in that general area of the wiring harness.

TESTING FOR A SHORT TO GROUND ON

FUSES POWERING SEVERAL LOADS

(1) Refer to the wiring diagrams and disconnect or isolate all items on the suspected fused circuits. (2) Replace the blown fuse. (3) Supply power to the fuse by turning ON the ignition switch or re-connecting the battery. (4) Start connecting the items in the fuse circuit one at a time. When the fuse blows the circuit with the short to ground has been isolated.

TESTING FOR A VOLTAGE DROP

(1) Connect the positive lead of the voltmeter to the side of the circuit closest to the battery (Fig. 8).

(2) Connect the other lead of the voltmeter to the other side of the switch or component.

(3) Operate the item. (4) The voltmeter will show the difference in voltage between the two points.

TROUBLESHOOTING WIRING PROBLEMS

When troubleshooting wiring problems there are six steps which can aid in the procedure. The steps are listed and explained below. Always check for nonfactory items added to the vehicle before doing any diagnosis. If the vehicle is equipped with these items, disconnect them to verify these add-on items are not the cause of the problem.

(1) Verify the problem. (2) Verify any related symptoms. Do this by performing operational checks on components that are in the same circuit. Refer to the wiring diagrams. (3) Analyze the symptoms. Use the wiring diagrams to determine what the circuit is doing, where the problem most likely is occurring and where the diagnosis will continue.

(4) Isolate the problem area. (5) Repair the problem. (6) Verify proper operation. For this step check for proper operation of all items on the repaired circuit. Refer to the wiring diagrams.

SERVICE PROCEDURES

WIRING REPAIR

When replacing or repairing a wire, it is important that the correct gage be used as shown in the wiring diagrams. The wires must also be held securely in place to prevent damage to the insulation.

(1) Disconnect battery negative cable. (2) Remove 1 inch of insulation from each end of the wire.

(3) Place a piece of heat shrink tubing over one side of the wire. Make sure the tubing will be long enough to cover and seal the entire repair area.

(4) Spread the strands of the wire apart on each part of the exposed wire (example 1) (Fig. 9).

(5) Push the two ends of wire together until the strands of wire are close to the insulation (example 2) (Fig. 9).

(6) Twist the wires together (example 3) (Fig. 9). (7) Solder the connection together using rosin core type solder only. Do not use acid core solder.

(8) Center the heat shrink tubing over the joint, and heat using a heat gun. Heat the joint until the tubing is tightly sealed and sealant comes out of both ends of the tubing.

(9) Secure the wire to the existing ones to prevent chafing or damage to the insulation.

(10) Connect battery and test all affected systems.

TERMINAL/CONNECTOR REPAIR-MOLEX CONNECTORS

(1) Disconnect battery. (2) Disconnect the connector from its mating half/ component.

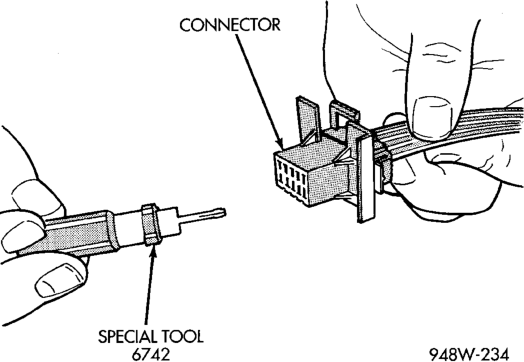

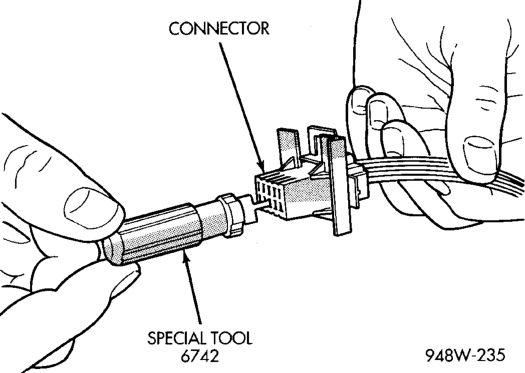

(3) Insert the terminal releasing special tool 6742 into the terminal end of the connector (Fig. 10).

(4) Using special tool 6742 release the locking fingers on the terminal (Fig. 11).

(5) Pull on the wire to remove it from the connector.

(6) Repair or replace the connector or terminal, as necessary.

TERMINAL/CONNECTOR REPAIR—THOMAS AND BETTS CONNECTORS

(1) Disconnect battery. (2) Disconnect the connector from its mating half/ component.

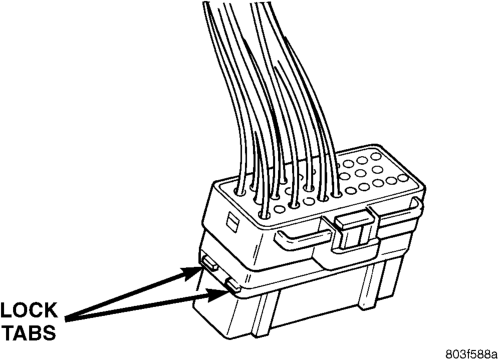

(3) Push in the two lock tabs on the side of the connector (Fig. 12).

Tabs

(4) Insert the probe end of special tool 6934 into the back of the connector cavity (Fig. 13).

(5) Grasp the wire and tool 6934 and slowly remove the wire and terminal from the connector.

(6) Repair or replace the terminal. (7) Install the wire and terminal in the connector. Fully seat the terminal in the connector.

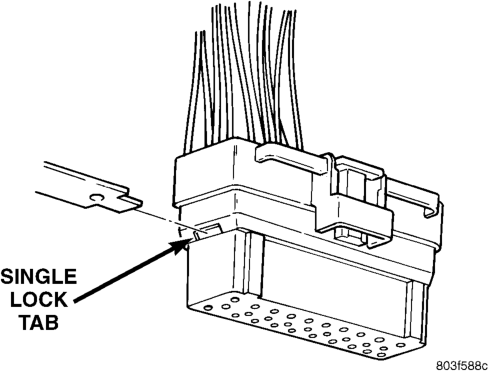

(8) Push in the single lock tab on the side of the connector (Fig. 14).

CONNECTOR REPLACEMENT

(1) Disconnect battery. (2) Disconnect the connector that is to be repaired from its mating half/component.

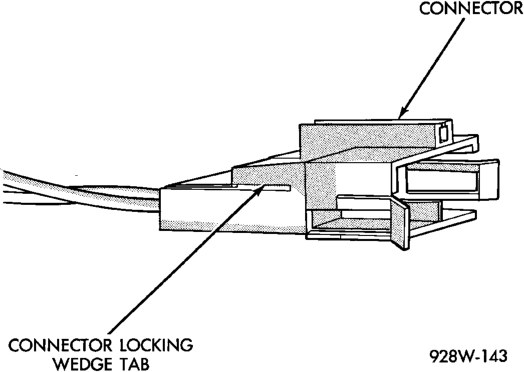

(3) Remove the connector locking wedge, if required (Fig. 15).

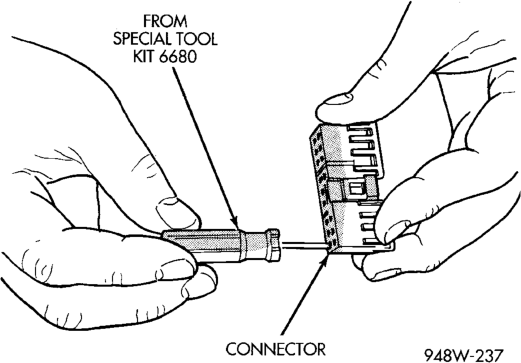

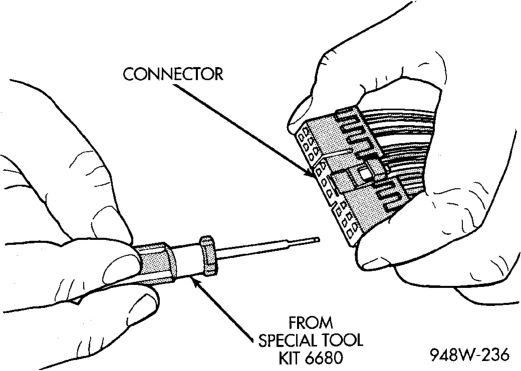

(4) Position the connector locking finger away from the terminal using the proper pick from special tool kit 6680. Pull on the wire to remove the terminal from the connector (Fig. 16) (Fig. 17).

(5) Reset the terminal locking tang, if it has one. (6) Insert the removed wire in the same cavity on the repair connector.

(7) Repeat steps four through six for each wire in the connector, being sure that all wires are inserted into the proper cavities. For additional connector pinout identification, refer to the wiring diagrams.

(8) Insert the connector locking wedge into the repaired connector, if required.

(9) Connect connector to its mating half/component.

(10) Connect battery and test all affected systems.

CONNECTOR AND TERMINAL REPLACEMENT

(1) Disconnect battery. (2) Disconnect the connector (that is to be repaired) from its mating half/component.

(3) Cut off the existing wire connector directly behind the insulator. Remove six inches of tape from the harness.

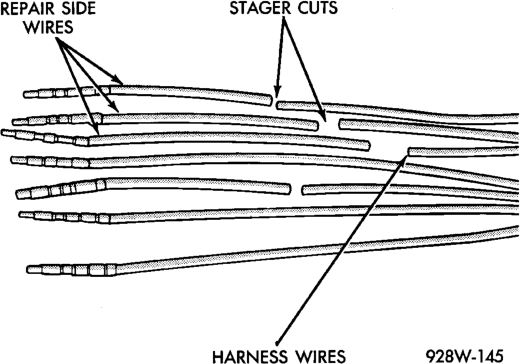

(4) Stagger cut all wires on the harness side at 1/2 inch intervals (Fig. 18). (5) Remove 1 inch of insulation from each wire on the harness side.

(6) Stagger cut the matching wires on the repair connector assembly in the opposite order as was done on the harness side of the repair. Allow extra length for soldered connections. Check that the overall length is the same as the original (Fig. 18).

(7) Remove 1 inch of insulation from each wire. (8) Place a piece of heat shrink tubing over one side of the wire. Be sure the tubing will be long enough to cover and seal the entire repair area.

(9) Spread the strands of the wire apart on each part of the exposed wires.

(10) Push the two ends of wire together until the strands of wire are close to the insulation.

(11) Twist the wires together. (12) Solder the connection together using rosin core type solder only. Do not use acid core solder.

(13) Center the heat shrink tubing over the joint and heat using a heat gun. Heat the joint until the tubing is tightly sealed and sealant comes out of both ends of the tubing.

(14) Repeat steps 8 through 13 for each wire. (15) Re-tape the wire harness starting 1-1/2 inches behind the connector and 2 inches past the repair.

(16) Re-connect the repaired connector. (17) Connect the battery, and test all affected systems.

TERMINAL REPLACEMENT

(1) Disconnect battery. (2) Disconnect the connector being repaired from its mating half. Remove connector locking wedge, if required (Fig. 19).

(3) Remove connector locking wedge, if required (Fig. 19).

(4) Position the connector locking finger away from the terminal using the proper pick from special tool kit 6680. Pull on the wire to remove the terminal from the connector (Fig. 20) (Fig. 21).

(5) Cut the wire 6 inches from the back of the connector.

(6) Remove 1 inch of insulation from the wire on the harness side.

(7) Select a wire from the terminal repair assembly that best matches the color wire being repaired.

(8) Cut the repair wire to the proper length and remove 1 inch of insulation.

(9) Place a piece of heat shrink tubing over one side of the wire. Make sure the tubing will be long enough to cover and seal the entire repair area.

(10) Spread the strands of the wire apart on each part of the exposed wires.

(11) Push the two ends of wire together until the strands of wire are close to the insulation.

(12) Twist the wires together. (13) Solder the connection together using rosin core type solder only. Do not use acid core solder.

(14) Center the heat shrink tubing over the joint and heat using a heat gun. Heat the joint until the tubing is tightly sealed and sealant comes out of both ends of the tubing.

(15) Insert the repaired wire into the connector. (16) Install the connector locking wedge, if required, and reconnect the connector to its mating half/component.

(17) Re-tape the wire harness starting 1-1/2 inches behind the connector and 2 inches past the repair.

(18) Connect battery, and test all affected systems.

DIODE REPLACEMENT

(1) Disconnect the battery. (2) Locate the diode in the harness, and remove the protective covering.

(3) Remove the diode from the harness, pay attention to the current flow direction (Fig. 22).

(4) Remove the insulation from the wires in the harness. Only remove enough insulation to solder in the new diode.

(5) Install the new diode in the harness, making sure current flow is correct. If necessary refer to the appropriate wiring diagram for current flow.

(6) Solder the connection together using rosin core type solder only. Do not use acid core solder.

(7) Tape the diode to the harness using electrical tape making, sure the diode is completely sealed from the elements.

(8) Re-connect the battery, and test affected systems.

SPECIAL TOOLS

WIRING/TERMINAL

Component Page A/C Compressor Clutch . . . . . . . . . . . . . . . . . .8W-42 A/C Compressor Clutch Relay . . . . . . . . . . . . .8W-42 A/C Heater Control . . . . . . . . . . . . . . . . . . . . .8W-42 A/C Pressure Switches. . . . . . . . . . . . . . . . . . .8W-42 Airbag Control Module. . . . . . . . . . . . . . . . . . .8W-43 Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-43 Ambient Temperature Sensor. . . . . . . . . . .8W-42, 45 Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-47 Ash Receiver Lamp . . . . . . . . . . . . . . . . . . . . .8W-44 Automatic Day/Night Mirror . . . . . . . . . . . . . .8W-44 Automatic Headlamp Light Sensor/

VTSS LED . . . . . . . . . . . . . . . . . . . . . . . . . .8W-45 Automatic Headlamp Relay . . . . . . . . . . . . . . .8W-50 Automatic Shut Down Relay . . . . . . . . . . . . . .8W-30 Automatic Temperature Control Module . . . . .8W-42 Back-Up Lamp Switch . . . . . . . . . . . . . . . .8W-44, 51 Back-Up Lamps . . . . . . . . . . . . . . . . . . . . . . . .8W-51 Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-20 Battery Temperature Sensor . . . . . . . . . . . . . .8W-30 Blend Door Actuator . . . . . . . . . . . . . . . . . . . .8W-42 Blower Motor . . . . . . . . . . . . . . . . . . . . . . . . . .8W-42 Blower Motor Resistor Block . . . . . . . . . . . . . .8W-42 Blower Power Module . . . . . . . . . . . . . . . . . . .8W-42 Body Control Module . . . . . . . . . . . . . . . . . . . .8W-45 Brake Pressure Switch . . . . . . . . . . . . . . . . . .8W-40 Brake Warning Lamp . . . . . . . . . . . . . . . . . . .8W-40 Camshaft Position Sensor . . . . . . . . . . . . . . . .8W-30 Cargo Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-44 Center High Mounted Stop Lamps . . . . . . . . .8W-51 Check Lamps . . . . . . . . . . . . . . . . . . . . . . . . . .8W-40 Cigar Lighter . . . . . . . . . . . . . . . . . . . . . . . . . .8W-41 Cigar Lighter Lamp . . . . . . . . . . . . . . . . . . . . .8W-44 Cigar Lighter Relay . . . . . . . . . . . . . . . . . . . . .8W-41 Cigar Lighter/Power Outlet . . . . . . . . . . . . . . .8W-41 Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . .8W-12 Clockspring No. 1 . . . . . . . . . . . . . . . . .8W-33, 41, 47 Clockspring No. 2 . . . . . . . . . . . . . . . . . . . . . .8W-43 Clutch Interlock Switch. . . . . . . . . . .8W-10, 21, 21-2 Clutch Interlock Switch Jumper . . . . . . . .8W-10, 21 Controller Anti-Lock Brake . . . . . . . . . . . . . . .8W-35 Coolant Level Sensor . . . . . . . . . . . . . . . . .8W-30, 46 Cooling Fan Motor . . . . . . . . . . . . . . . . . . . . . .8W-30 Courtesy Lamp Relay . . . . . . . . . . . . . . . . . . .8W-44 Courtesy Lamps. . . . . . . . . . . . . . . . . . . . . . . .8W-44 Crankshaft Position Sensor . . . . . . . . . . . . . . .8W-30 Cruise Switches . . . . . . . . . . . . . . . . . . . . .8W-30, 33 Cylinder Lock Switches . . . . . . . . . . . . . . . . . .8W-39 Data Link Connector . . . . . . . . . . . . . . . . . . . .8W-30 Daytime Running Lamp Module . . . . . . . . . . .8W-50 Diagnostic Connector . . . . . . . . . . . . . . . . . . . .8W-30 Dome/Reading Lamp . . . . . . . . . . . . . . . . . . . .8W-44 Door Ajar Switches. . . . . . . . . . . . . . . .8W-39, 44, 45 Door Lock Motors . . . . . . . . . . . . . . . . . . . . . .8W-61 Door Modules . . . . . . . . . . . . . . . . .8W-60, 61, 62, 63

Component Page Driver Seat Heater Control Module . . . . . . . . .8W-63 Duty Cycle Evap/Purge Solenoid . . . . . . . . . . .8W-30 Electronic Flasher . . . . . . . . . . . . . . . . . . . . . .8W-52 Electronic Vacuum Modulator . . . . . . . . . . . . .8W-30 Engine Coolant Temperature Sensor . . . . . . . .8W-30 Engine Starter Motor. . . . . . . . . . . . . . . . . . . .8W-21 Engine Starter Motor Relay. . . . . . . . . . . . . . .8W-21 Floor Console Lamps . . . . . . . . . . . . . . . . . . . .8W-44 Fog Lamp Relay. . . . . . . . . . . . . . . . . . . . . . . .8W-50 Fog Lamp Switch. . . . . . . . . . . . . . . . . . . . . . .8W-50 Fog Lamps . . . . . . . . . . . . . . . . . . . . . . . . .8W-50, 51 Four Wheel Drive Switch. . . . . . . . . . . . . . . . .8W-46 Fuel Heater . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30 Fuel Heater Relay . . . . . . . . . . . . . . . . . . . . . .8W-30 Fuel Injectors. . . . . . . . . . . . . . . . . . . . . . . . . .8W-30 Fuel Pump Module . . . . . . . . . . . . . . . . . . . . .8W-30 Fuel Pump Relay . . . . . . . . . . . . . . . . . . . . . . .8W-30 Fuel Sender Unit . . . . . . . . . . . . . . . . . . . . . . .8W-30 Fuses (JB) . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12 Fuses (PDC). . . . . . . . . . . . . . . . . . . . . . . . . . .8W-10 Fusible Link. . . . . . . . . . . . . . . . . . . . . . . .8W-10, 20 G Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-35 Gauges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-40 Generator. . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-20 Glove Box Lamp . . . . . . . . . . . . . . . . . . . . . . .8W-44 Glow Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30 Glow Plug Relay . . . . . . . . . . . . . . . . . . . . . . .8W-30 Grounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15 Headlamp Dimmer Switch. . . . . . . . . . . . . . . .8W-50 Headlamp Leveling Motors . . . . . . . . . . . . . . .8W-50 Headlamp Leveling Switch . . . . . . . . . . . . . . .8W-50 Headlamp Switch. . . . . . . . . . . . . . . . . . . . . . .8W-50 Headlamps. . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-50 Heated Seat Backs. . . . . . . . . . . . . . . . . . . . . .8W-63 Heated Seat Cushions . . . . . . . . . . . . . . . . . . .8W-63 Heated Seat Switch . . . . . . . . . . . . . . . . . . . . .8W-63 High Pressure Cut-Out Switch . . . . . . . . . . . .8W-30 High Speed Cooling Fan Relay . . . . . . . . . . . .8W-30 Hood Switch. . . . . . . . . . . . . . . . . . . . . . . . . . .8W-39 Horn Relay. . . . . . . . . . . . . . . . . . . . . . . . .8W-39, 41 Horn Switch. . . . . . . . . . . . . . . . . . . . . . . .8W-39, 41 Horns . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-39, 41 Idle Air Control Motor . . . . . . . . . . . . . . . . . . .8W-30 Ignition Coil. . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30 Ignition Relay . . . . . . . . . . . . . . . . . . . . . . . . .8W-30 Ignition Switch . . . . . . . . . . . . . . . . . . . . . . . .8W-10 Illumination Lamps . . . . . . . . . . . . . . . . . . . . .8W-40 In-Car Temperature Sensor . . . . . . . . . . . . . . .8W-42 Indicator Lamps. . . . . . . . . . . . . . . . . . . . . . . .8W-40 Instrument Cluster . . . . . . . . . . . . . . . . . . . . .8W-40 Intake Air Temperature Sensor . . . . . . . . . . . .8W-30 Intermittent Wiper Relay. . . . . . . . . . . . . . . . .8W-53 Intermittent Wiper Switch. . . . . . . . . . . . . . . .8W-53 Junction Block . . . . . . . . . . . . . . . . . . . . . . . . .8W-12

Graphic Display Module . . . . . . . . . . . . . . .8W-46 Vehicle Speed Control Servo . . . . . . . . . . . . . .8W-33 Vehicle Speed Control/Horn Switch . . . . . .8W-39, 41 Vehicle Speed Sensor . . . . . . . . . . . . . . . . .8W-31, 33 Visor/Vanity Lamps . . . . . . . . . . . . . . . . . . . . .8W-44 Volt Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-40 Warning Lamps . . . . . . . . . . . . . . . . . . . . . . . .8W-40 Water In Fuel Sensor. . . . . . . . . . . . . . . . . . . .8W-30 Wheel Speed Sensors . . . . . . . . . . . . . . . . . . . .8W-35 Windshield Washer Pump Motor . . . . . . . . . . .8W-53 Windshield Wiper Motor . . . . . . . . . . . . . . . . .8W-53 Wiper Fluid Level Sensor. . . . . . . . . . . . . .8W-46, 53

Component Page A/C Compressor Clutch. . . . . . . . . . . . . . . . .8W-10-8 A/C Compressor Clutch Relay . . . . . .8W-10-8, 19, 22 Automatic Headlamp Relay . . . . . . . . . . . .8W-10-15 Automatic Shutdown Relay . . . . . . .8W-10-19, 20, 22 Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-10-7 Blower Motor . . . . . . . . . . . . . . . . . . . . . . .8W-10-10 Blower Power Module . . . . . . . . . . . . . . . . .8W-10-10 Body Control Module . . . . . . . . . . . . . . . . .8W-10-19 Brake Pressure Switch . . . . . . . . . . . . . . . .8W-10-11 Circuit Breaker 1 . . . . . . . . . . . . . . . . . . . .8W-10-13 Circuit Breaker 2 . . . . . . . . . . . . . . . . . . . .8W-10-14 Circuit Breaker 3 . . . . . . . . . . . . . . . . . . . .8W-10-16 Clutch Interlock Switch. . . . . . . . . . . . . . . .8W-10-11 Clutch Interlock Switch Jumper . . . . . . . . .8W-10-11 Controller Anti-Lock Brake . . . . . . . . . . .8W-10-9, 14 Daytime Running Lamp Module . . . . . . . . .8W-10-15 Diagnostic Connector . . . . . . . . . . . . . . .8W-10-9, 19 Downstream Heated Oxygen Sensor . . . . . .8W-10-21 Duty Cycle Evap/Purge Solenoid. . . . . . . . .8W-10-19 Electronic Vacuum Modulator . . . . . . . . . . .8W-10-23 Engine Starter Motor . . . . . . . . . . . . . . . . .8W-10-10 Engine Starter Motor Relay . . . . . . . . .8W-10-10, 11 Fog Lamp Relay . . . . . . . . . . . . . . . . . .8W-10-17, 18 Fuel Heater Relay . . . . . . . . . . . . . . . . .8W-10-19, 22 Fuel Injector No. 1 . . . . . . . . . . . . . . . . . . .8W-10-21 Fuel Injector No. 2 . . . . . . . . . . . . . . . . . . .8W-10-21 Fuel Injector No. 3 . . . . . . . . . . . . . . . . . . .8W-10-21 Fuel Injector No. 4 . . . . . . . . . . . . . . . . . . .8W-10-21 Fuel Injector No. 5 . . . . . . . . . . . . . . . . . . .8W-10-21 Fuel Injector No. 6 . . . . . . . . . . . . . . . . . . .8W-10-21 Fuel Injector No. 7 . . . . . . . . . . . . . . . . . . .8W-10-21 Fuel Injector No. 8 . . . . . . . . . . . . . . . . . . .8W-10-21 Fuel Pump Module . . . . . . . . . . . . . . . .8W-10-17, 23 Fuel Pump Relay. . . . . . . . . . . . . . . . . .8W-10-17, 19 Fuse 1 (JB) . . . . . . . . . . . . . . . . . . . . . . . . .8W-10-13 Fuse 2 (JB) . . . . . . . . . . . . . . . . . . . . . . . . .8W-10-13 Fuse 2 (PDC) . . . . . . . . . . . . . . . . . . . . . .8W-10-7, 9 Fuse 3 (JB) . . . . . . . . . . . . . . . . . . . . . . . . .8W-10-13 Fuse 3 (PDC) . . . . . . . . . . . . . . . . . . . . . .8W-10-7, 8 Fuse 4 (JB) . . . . . . . . . . . . . . . . . . . . . . . . .8W-10-12 Fuse 4 (PDC) . . . . . . . . . . . . . . . . . . . . .8W-10-7, -22 Fuse 5 (JB) . . . . . . . . . . . . . . . . . . . . . . . . .8W-10-12 Fuse 5 (PDC) . . . . . . . . . . . . . . . . . . . . . .8W-10-7, 9 Fuse 6 (JB) . . . . . . . . . . . . . . . . . . . . . . . . .8W-10-12 Fuse 6 (PDC) . . . . . . . . . . . . . . . . . . . . . .8W-10-7, 9 Fuse 7 (JB) . . . . . . . . . . . . . . . . . . . . . . . . .8W-10-14 Fuse 7 (PDC). . . . . . . . . . . . . . . . . . . . . .8W-10-7, 10 Fuse 8 (JB) . . . . . . . . . . . . . . . . . . . . . . . . .8W-10-14 Fuse 8 (PDC) . . . . . . . . . . . . . . . . . . .8W-10-7, 10, 11 Fuse 9 (JB) . . . . . . . . . . . . . . . . . . . . . . . . .8W-10-14 Fuse 10 (JB) . . . . . . . . . . . . . . . . . . . . . . . . .8W-10-8

8W-10 POWER DISTRIBUTION

Component Page Fuse 10 (PDC). . . . . . . . . . . . . . . . . . . . .8W-10-7, 13 Fuse 11 (JB) . . . . . . . . . . . . . . . . . . . . . . . .8W-10-12 Fuse 11 (PDC). . . . . . . . . . . . . . . . . . . . .8W-10-7, 14 Fuse 12 (JB) . . . . . . . . . . . . . . . . . . . . . . . .8W-10-12 Fuse 13 (JB) . . . . . . . . . . . . . . . . . . . . . . . .8W-10-16 Fuse 13 (PDC). . . . . . . . . . . . . . . . . . . . .8W-10-7, 15 Fuse 14 (JB) . . . . . . . . . . . . . . . . . . . . . . . .8W-10-13 Fuse 14 (PDC). . . . . . . . . . . . . . . . . . . . .8W-10-7, 14 Fuse 15 (JB) . . . . . . . . . . . . . . . . . . . . . . . .8W-10-13 Fuse 15 (PDC). . . . . . . . . . . . . . . . . . . . .8W-10-7, 16 Fuse 16 (JB) . . . . . . . . . . . . . . . . . . . . . . . .8W-10-16 Fuse 16 (PDC) . . . . . . . . . . . . . . . . . .8W-10-7, 17, 18 Fuse 17 (JB) . . . . . . . . . . . . . . . . . . . . . . . .8W-10-15 Fuse 17 (PDC). . . . . . . . . . . . . . . . . . . . .8W-10-7, 17 Fuse 18 (JB) . . . . . . . . . . . . . . . . . . . . . . . .8W-10-13 Fuse 18 (PDC) . . . . . . . . . . . . . . . . .8W-10-12, 17, 18 Fuse 19 (PDC) . . . . . . . . . . . . . . . . . .8W-10-7, 17, 18 Fuse 20 (JB) . . . . . . . . . . . . . . . . . . . . . . . .8W-10-16 Fuse 20 (PDC) . . . . . . . . . . . . . . . . . .8W-10-7, 20, 22 Fuse 21 (JB) . . . . . . . . . . . . . . . . . . . . . . . .8W-10-16 Fuse 21 (PDC) . . . . . . . . . . . . . . . . . . . . . . .8W-10-8 Fuse 22 (JB) . . . . . . . . . . . . . . . . . . . . . . . .8W-10-12 Fusible Link . . . . . . . . . . . . . . . . . . . . . . .8W-10-7, 8 Generator . . . . . . . . . . . . . . . . . . . . . . . .8W-10-8, 23 Glow Plug Relay . . . . . . . . . . . . . . . . . . . . .8W-10-23 Headlamp Dimmer Switch . . . . . . . . . . . . .8W-10-15 Headlamp Switch . . . . . . . . . . . . . .8W-10-15, 17, 18 High Speed Cooling Fan Relay . . . . . . . . . . .8W-10-9 Horn No. 1 . . . . . . . . . . . . . . . . . . . . . . . . . .8W-10-9 Horn No. 2 . . . . . . . . . . . . . . . . . . . . . . . . . .8W-10-9 Horn Relay . . . . . . . . . . . . . . . . . . . . . . . . . .8W-10-9 Ignition Coil . . . . . . . . . . . . . . . . . . . . . . . .8W-10-21 Ignition Relay . . . . . . . . . . . . . . . . . . . . . . .8W-10-19 Ignition Switch . . . . . . . . . . . . .8W-10-10, 11, 12, 13 Junction Block . . .8W-10-8, 12, 13, 14, 15, 16, 17, 18 Leak Detection Pump . . . . . . . . . . . . . . . . .8W-10-19 Left Fog Lamp. . . . . . . . . . . . . . . . . . . .8W-10-17, 28 Low Speed Cooling Fan Relay. . . . . . . . . . . .8W-10-9 Mass Air Flow Module . . . . . . . . . . . . . . . .8W-10-23 MSA Controller . . . . . . . . . . . . . . . .8W-10-19, 22, 23 Power Distribution Center .8W-10-7, 8, 9, 10, 11, 12,

13, 14, 15, 16, 17, 18, 20, 22 Powertrain Control Module . . . .8W-10-18, 19, 20, 23 Rear Fog Lamp Relay . . . . . . . . . . . . . . . . .8W-10-13 Rear Window Defogger . . . . . . . . . . . . . . . . .8W-10-8 Rear Window Defogger Relay . . . . . . . . . . . .8W-10-8 Right Fog Lamp . . . . . . . . . . . . . . . . . .8W-10-17, 18 Transmission Control Relay . . . . . . . . . . . .8W-10-17 Transmission Solenoid Assembly. . . . . . . . .8W-10-17 Upstream Heated Oxygen Sensor . . . . . . . .8W-10-21

Component Page A/C Heater Control . . . . . . . . . . . . . . . . . . . . .8W-12-14 Aftermarket Trailer Tow Connector . . . . . . . . . .8W-12-12 Airbag Control Module . . . . . . . . . . . . . . . . .8W-12-9, 27 Automatic Day/Night Mirror. . . . . . . . . .8W-12-11, 21, 25 Automatic Headlamp Light Sensor/VTSS LED . .8W-12-12 Automatic Headlamp Relay . . . . . . . . . . . . . . .8W-12-28 Automatic Temperature Control Module . . . .8W-12-14, 20 Back-Up Lamp Switch . . . . . . . . . . . . . . . .8W-12-10, 21 Blend Door Actuator . . . . . . . . . . . . . . . . . . . .8W-12-14 Body Control Module . . . . .8W-12-8, 12, 13, 18, 26, 27, 28 Cargo Lamp. . . . . . . . . . . . . . . . . . . . . . . .8W-12-16, 26 Cigar Lighter . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-7 Cigar Lighter Relay. . . . . . . . . . . . . . . . . . . . . .8W-12-7 Cigar Lighter/Power Outlet . . . . . . . . . . . . . .8W-12-7, 20 Circuit Breaker 1 . . . . . . . . . . . . . . . . . . . . . . .8W-12-8 Circuit Breaker 2. . . . . . . . . . . . . . . . . . . . . . .8W-12-11 Circuit Breaker 3 . . . . . . . . . . . . . . . . . . . . . .8W-12-22 Clockspring . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-27 Controller Anti-Lock Brake. . . . . . . . . . . . . . . .8W-12-13 Courtesy Lamp Relay . . . . . . . . . . . . . . . . .8W-12-16, 26 Data Link Connector . . . . . . . . . . . . . . . . . . . .8W-12-12 Daytime Running Lamp Module . . . . . . . . . . . .8W-12-10 Dome/Reading Lamp. . . . . . . . . . . . . . . . . .8W-12-17, 25 Driver Door Module . . . . . . . . . . . . . . . . . . . . .8W-12-11 Driver Lumbar Switch . . . . . . . . . . . . . . . . . . .8W-12-22 Driver Power Seat Switch. . . . . . . . . . . . . . . . .8W-12-22 Driver Seat Heater Control Module . . . . . . .8W-12-14, 22 Electronic Flasher . . . . . . . . . . . . . . . . . . .8W-12-10, 15 Factory Trailer Tow Connector . . . . . . . . . . . . .8W-12-21 Fog Lamp Relay . . . . . . . . . . . . . . . . . . . . . . .8W-12-28 Four Wheel Drive Switch . . . . . . . . . . . . . . . . .8W-12-23 Fuse 1 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-7 Fuse 2 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-7 Fuse 3 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-8 Fuse 4 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-9 Fuse 5 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-9 Fuse 6 (JB). . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-10 Fuse 7 (JB). . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-12 Fuse 8 (JB). . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-12 Fuse 9 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-11 Fuse 10 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-13 Fuse 11 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-13 Fuse 12 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-14 Fuse 13 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-15 Fuse 14 (JB). . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-7 Fuse 15 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-24 Fuse 16 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-16 Fuse 17 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-18 Fuse 18 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-20 Fuse 18 (PDC) . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-9 Fuse 20 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-20 Fuse 21 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-20 Fuse 22 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-27 G303 . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-15, 26

8W-12 JUNCTION BLOCK

Component Page Glove Box Lamp . . . . . . . . . . . . . . . . . . . . . . .8W-12-16 Headlamp Dimmer Switch . . . . . . . . . . .8W-12-10, 20, 28 Headlamp Switch . . . . . . . . . . . . . . . . .8W-12-18, 24, 28 Horn Relay . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-27 Instrument Cluster . . . . . . . . . . . . . . . . .8W-12-9, 12, 21 Intermittent Wiper Relay . . . . . . . . . . . . . . . . .8W-12-8 Intermittent Wiper Switch . . . . . . . . . . . . . . . . .8W-12-8 Junction Block. . . . . . .8W-12-2, 7, 8, 9, 10, 11, 12, 13, 14,

15, 16, 18, 19, 20, 21, 22, 23, 24, 26, 27, 28 Key-In Switch/Halo Lamp . . . . . . . . . . . . . .8W-12-16, 26 Lamp Outage Module . . . . . . . . . . . . . . .8W-12-9, 19, 24 Left Back-Up Lamp . . . . . . . . . . . . . . . . . . . . .8W-12-21 Left Courtesy Lamp . . . . . . . . . . . . . . . . . .8W-12-16, 26 Left Fog Lamp . . . . . . . . . . . . . . . . . . . . . . . .8W-12-28 Left Visor/Vanity Lamp . . . . . . . . . . . . . . . .8W-12-17, 25 Liftglass Limit Switch . . . . . . . . . . . . . . . . . . .8W-12-12 Memory Seat Module . . . . . . . . . . . . . . . . . . . .8W-12-22 Overhead Console . . . . . . . . . . . . . . . . .8W-12-11, 17, 25 Park Lamp Relay . . . . . . . . . . . . . . . . . . . . . .8W-12-18 Park/Neutral Position Switch. . . . . . . . . . . .8W-12-10, 21 Passenger Door Module . . . . . . . . . . . . . . . . . .8W-12-11 Passenger Lumbar Switch . . . . . . . . . . . . . . . .8W-12-22 Passenger Power Seat Switch . . . . . . . . . . . . . .8W-12-22 Passenger Seat Heater Control Module . . . . .8W-12-14, 22 Power Amplifier . . . . . . . . . . . . . . . . . . . . .8W-12-12, 15 Power Antenna . . . . . . . . . . . . . . . . . . . . . . . .8W-12-15 Power Antenna Relay. . . . . . . . . . . . . . . . . . . .8W-12-15 Power Distribution Center . . . . . . . . . . . . . . . . .8W-12-9 Power Outlet . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-20 Radio . . . . . . . . . . . . . . . . . . . . . . . .8W-12-7, 15, 19, 20 Rear Fog Lamp Relay . . . . . . . . . . . . . . . . . . .8W-12-24 Rear Window Defogger. . . . . . . . . . . . . . . . . . .8W-12-13 Rear Window Defogger Relay . . . . . . . . . . . . . .8W-12-13 Rear Window Defogger Switch . . . . . . . . . . . . .8W-12-13 Rear Wiper Module . . . . . . . . . . . . . . . . . . . . .8W-12-12 Rear Wiper/Washer Switch . . . . . . . . . . . . . . . . .8W-12-8 Recirculation Door Actuator . . . . . . . . . . . . . . .8W-12-14 Right Back-Up Lamp . . . . . . . . . . . . . . . . . . . .8W-12-21 Right Courtesy Lamp . . . . . . . . . . . . . . . . .8W-12-16, 26 Right Fog Lamp . . . . . . . . . . . . . . . . . . . . . . .8W-12-28 Right Front Turn Signal Lamp . . . . . . . . . . . . .8W-12-21 Right Side Repeater. . . . . . . . . . . . . . . . . . . . .8W-12-21 Right Visor/Vanity Lamp . . . . . . . . . . . . . .8W-12-17, 25 Shift Interlock . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-9 Stop Lamp Switch . . . . . . . . . . . . . . . . . . . . . .8W-12-11 Sunroof Control Module . . . . . . . . . . . . . . . .8W-12-9, 25 Sunroof Switch . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-9 Switch Pod . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-14 Trailer Tow Circuit Breaker . . . . . . . . . . . . . . .8W-12-12 Turn Signal/Hazard Warning Switch. . . . . . .8W-12-15, 21 Underhood Lamp. . . . . . . . . . . . . . . . . . . . . . .8W-12-16 Vehicle Information Center/

Graphic Display Module . . . . .8W-12-10, 15, 19, 20, 23 Windshield Wiper Motor . . . . . . . . . . . . . . . . . .8W-12-8

Component Page A/C Compressor Clutch . . . . . . . . . . . . . . . . .8W-15-3, 4, 5 A/C Heater Control . . . . . . . . . . . . . . . . . . .8W-15-6, 7, 19 A/C High Pressure Switch. . . . . . . . . . . . . . . . . . .8W-15-4 Airbag Control Module . . . . . . . . . . . . . . . . . . . .8W-15-20 Ash Receiver Lamp . . . . . . . . . . . . . . . . . . . . . .8W-15-19 Automatic Day/Night Mirror . . . . . . . . . . . . . . . .8W-15-18 Automatic Temperature Control Module . . . . . . . .8W-15-6, 7 Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-2, 3 Blend Door Actuator. . . . . . . . . . . . . . . . . . . . . .8W-15-19 Blower Power Module . . . . . . . . . . . . . . . . . . . .8W-15-6, 7 Body Control Module . . . . . . . . . . . . . . . . . . . . .8W-15-20 Brake Pressure Switch . . . . . . . . . . . . . . . . . . .8W-15-6, 7 Center High Mounted Stop Lamp No. 1 . . . . . . . . .8W-15-11 Center High Mounted Stop Lamp No. 2 . . . . . . . . .8W-15-11 Center High Mounted Stop Lamp No. 3 . . . . . . . . .8W-15-11 Cigar Lighter . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-19 Cigar Lighter Relay . . . . . . . . . . . . . . . . . . . . . .8W-15-19 Cigar Lighter/Power Outlet . . . . . . . . . . . . . . . . .8W-15-19 Clockspring . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-20 Controller Anti-Lock Brake . . . . . . . . . . . . . . . .8W-15-6, 7 Coolant Level Sensor . . . . . . . . . . . . . . . . . . . . . .8W-15-4 Cooling Fan Motor . . . . . . . . . . . . . . . . . . . . . . .8W-15-10 Courtesy Lamp Relay . . . . . . . . . . . . . . . . . . . . .8W-15-18 Data Link Connector . . . . . . . . . . . . . . . . . . . .8W-15-2, 3 Daytime Running Lamp Module. . . . . . . . . . . . . . .8W-15-6 Diagnostic Connector . . . . . . . . . . . . . . . . . . . . .8W-15-10 Dome/Reading Lamp . . . . . . . . . . . . . . . . . . . . .8W-15-18 Downstream Heated Oxygen Sensor . . . . . . . . . . . .8W-15-4 Driver Door Courtesy Lamp. . . . . . . . . . . . . . . . .8W-15-16 Driver Door Module . . . . . . . . . . . . . . . . . . . . . .8W-15-16 Driver Front Cylinder Lock Switch . . . . . . . . . . . .8W-15-16 Driver Heated Seat Back . . . . . . . . . . . . . . . . . .8W-15-17 Driver Heated Seat Cushion . . . . . . . . . . . . . . . .8W-15-17 Driver Lumbar Switch . . . . . . . . . . . . . . . . . . . .8W-15-17 Driver Power Seat Switch . . . . . . . . . . . . . . . . . .8W-15-17 Driver Rear Power Window Switch . . . . . . . . . . . .8W-15-15 Driver Seat Heater Control Module. . . . . . . . . . . .8W-15-17 Electronic Flasher . . . . . . . . . . . . . . . . . . . . . . .8W-15-18 Electronic Vacuum Modulator . . . . . . . . . . . . . . . .8W-15-5 Engine Starter Motor Relay . . . . . . . . . . . . . . . . .8W-15-7 Factory Trailer Tow Connector . . . . . . . . . . . . . . .8W-15-11 Floor Console Lamps . . . . . . . . . . . . . . . . . . . . .8W-15-15 Four Wheel Drive Switch . . . . . . . . . . . . . . . . .8W-15-4, 5 Fuel Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-5 Fuel Heater Relay . . . . . . . . . . . . . . . . . . . . . . . .8W-15-7 Fuel Pump Module . . . . . . . . . . . . . . . . . . . . . .8W-15-14 Fuel Sender Unit. . . . . . . . . . . . . . . . . . . . . . . .8W-15-15 G100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-2, 3 G101 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-2, 3 G104 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-2, 3 G105 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-4 G106 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-4, 5 G107 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-6, 7 G108 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-6, 7 G109 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-8, 9 G110 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-10 G111. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-7 G300. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-13 G301. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-14 G302 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-15, 26 G303. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-20 Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-2 Glove Box Lamp . . . . . . . . . . . . . . . . . . . . . . . .8W-15-19 Headlamp Leveling Switch . . . . . . . . . . . . . . . . .8W-15-20 Headlamp Switch . . . . . . . . . . . . . . . . . . . . . . .8W-15-20 High Pressure Cut-Out Switch . . . . . . . . . . . . . . .8W-15-10 High Speed Cooling Fan Relay . . . . . . . . . . . . . . .8W-15-10 Horn No. 1 . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-4, 5 Horn No. 2 . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-4, 5 Instrument Cluster . . . . . . . . . . . . . . . . . . . .8W-15-19, 20

8W-15 GROUND DISTRIBUTION

Component Page Junction Block . . . . . . . . . . . . . . . . . . . . . . .8W-15-18, 19 Key-In Switch/Halo Lamp . . . . . . . . . . . . . . . . . .8W-15-19 Lamp Outage Module . . . . . . . . . . . . . . . . . . . . .8W-15-16 Left Back-Up Lamp . . . . . . . . . . . . . . . . . . . . . .8W-15-11 Left Fog Lamp . . . . . . . . . . . . . . . . . . . . . . . .8W-15-8, 9 Left Front Park Lamp . . . . . . . . . . . . . . . . . . .8W-15-8, 9 Left Front Side Marker Lamp . . . . . . . . . . . . . .8W-15-8, 9 Left Front Turn Signal Lamp . . . . . . . . . . . . . . .8W-15-8, 9 Left Headlamp . . . . . . . . . . . . . . . . . . . . . . . .8W-15-8, 9 Left License Lamp . . . . . . . . . . . . . . . . . . . . . . .8W-15-12 Left Rear Fog Lamp . . . . . . . . . . . . . . . . . . . . . .8W-15-11 Left Rear Side Marker Lamp . . . . . . . . . . . . . . . .8W-15-11 Left Rear Turn Signal Lamp . . . . . . . . . . . . . . . .8W-15-11 Left Side Repeater . . . . . . . . . . . . . . . . . . . . . .8W-15-8, 9 Left Tail/Stop Lamp . . . . . . . . . . . . . . . . . . . . . .8W-15-11 Left Visor/Vanity Lamp. . . . . . . . . . . . . . . . . . . .8W-15-18 Liftgate Ajar Switch . . . . . . . . . . . . . . . . . . . . . .8W-15-12 Liftgate Cylinder Lock Switch . . . . . . . . . . . . . . .8W-15-12 Liftglass Ajar Switch . . . . . . . . . . . . . . . . . . . . .8W-15-12 Liftglass Release Solenoid . . . . . . . . . . . . . . . . . .8W-15-12 Lower Hose Coolant Switch . . . . . . . . . . . . . . . . .8W-15-10 Mass Air Flow Module . . . . . . . . . . . . . . . . . . . . .8W-15-5 Memory Seat Module . . . . . . . . . . . . . . . . . . . . .8W-15-17 MSA Controller. . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-3 Overhead Console . . . . . . . . . . . . . . . . . . . . . . .8W-15-18 Passenger Door Courtesy Lamp . . . . . . . . . . . . . .8W-15-14 Passenger Door Module . . . . . . . . . . . . . . . . . . .8W-15-14 Passenger Front Cylinder Lock Switch. . . . . . . . . .8W-15-14 Passenger Heated Seat Back . . . . . . . . . . . . . . . .8W-15-15 Passenger Heated Seat Cushion . . . . . . . . . . . . . .8W-15-15 Passenger Lumbar Switch . . . . . . . . . . . . . . . . . .8W-15-15 Passenger Power Seat Switch . . . . . . . . . . . . . . .8W-15-15 Passenger Rear Power Window Switch. . . . . . . . . .8W-15-14 Passenger Seat Heater Control Module . . . . . . . . .8W-15-15 Power Amplifier . . . . . . . . . . . . . . . . . . . . . . . .8W-15-17 Power Outlet . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-19 Powertrain Control Module . . . . . . . . . . . . . . . .8W-15-2, 3 Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-17 Rear Washer Pump Motor . . . . . . . . . . . . . . . . .8W-15-8, 9 Rear Window Defogger . . . . . . . . . . . . . . . . . . . .8W-15-12 Rear Wiper Module . . . . . . . . . . . . . . . . . . . . . .8W-15-12 Right Back-Up Lamp . . . . . . . . . . . . . . . . . . . . .8W-15-13 Right Fog Lamp . . . . . . . . . . . . . . . . . . . . . . .8W-15-4, 5 Right Front Park Lamp. . . . . . . . . . . . . . . . . . .8W-15-4, 5 Right Front Side Marker Lamp . . . . . . . . . . . . .8W-15-4, 5 Right Front Turn Signal Lamp . . . . . . . . . . . . . .8W-15-4, 5 Right Headlamp . . . . . . . . . . . . . . . . . . . . . . .8W-15-4, 5 Right License Lamp . . . . . . . . . . . . . . . . . . . . . .8W-15-12 Right Rear Fog Lamp. . . . . . . . . . . . . . . . . . . . .8W-15-13 Right Rear Side Marker Lamp . . . . . . . . . . . . . . .8W-15-13 Right Rear Turn Signal Lamp . . . . . . . . . . . . . . .8W-15-13 Right Side Repeater . . . . . . . . . . . . . . . . . . . . .8W-15-4, 5 Right Tail/Stop Lamp . . . . . . . . . . . . . . . . . . . . .8W-15-13 Right Visor/Vanity Lamp. . . . . . . . . . . . . . . . . . .8W-15-18 Seat Belt Switch . . . . . . . . . . . . . . . . . . . . . . . .8W-15-15 Stop Lamp Switch . . . . . . . . . . . . . . . . . . . . .8W-15-9, 20 Sunroof Control Module . . . . . . . . . . . . . . . . . . .8W-15-18 Switch Pod. . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-19 Trailer Tow Left Turn Relay. . . . . . . . . . . . . . . . .8W-15-11 Trailer Tow Right Turn Relay. . . . . . . . . . . . . . . .8W-15-11 Trailer Tow Stop Lamp Relay . . . . . . . . . . . . . . . .8W-15-11 Underhood Lamp . . . . . . . . . . . . . . . . . . . . .8W-15-6, 7, 9 Upper Hose Coolant Switch . . . . . . . . . . . . . . . . .8W-15-10 Upstream Heated Oxygen Sensor . . . . . . . . . . . . . .8W-15-4 Vehicle Information Center/

Graphic Display Module . . . . . . . . . . . .8W-15-16, 19, 20 Vehicle Speed Control Servo. . . . . . . . . . . . . . . .8W-15-6, 7 Windshield Washer Pump Motor . . . . . . . . . . . . .8W-15-8, 9 Windshield Wiper Motor . . . . . . . . . . . . . . . . . .8W-15-8, 9 Wiper Fluid Level Sensor . . . . . . . . . . . . . . . . .8W-15-8, 9

Component Page Automatic Shutdown Relay. . . . . . . . . . . . . .8W-20-3 Battery . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-20-2, 3 Engine Starter Motor . . . . . . . . . . . . . . . .8W-20-2, 3 Fusible Link . . . . . . . . . . . . . . . . . . . . . . .8W-20-2, 3 G100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-20-2, 3 G101 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-20-2, 3

8W-20 CHARGING SYSTEM

Component Page Generator . . . . . . . . . . . . . . . . . . . . . . . . . .8W-20-, 3 Glow Plug Relay . . . . . . . . . . . . . . . . . . . . . .8W-20-3 Power Distribution Center . . . . . . . . . . . .8W-20-2, 3 Powertrain Control Module. . . . . . . . . . . .8W-20-2, 3 Transmission Control Relay . . . . . . . . . . . . .8W-20-2

Component Page Battery . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-21-2, 3 Clutch Interlock Switch . . . . . . . . . . . . . .8W-21-2, 3 Clutch Interlock Switch Jumper . . . . . . . . . .8W-21-2 Engine Starter Motor . . . . . . . . . . . . . . . .8W-21-2, 3 Engine Starter Motor Relay . . . . . . . . . . .8W-21-2, 3 Fuse 8 (PDC) . . . . . . . . . . . . . . . . . . . . . .8W-21-2, 3

8W-21 STARTING SYSTEM

Component Page G107 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-21-3 Ignition Switch . . . . . . . . . . . . . . . . . . . . .8W-21-2, 3 Park/Neutral Position Switch . . . . . . . . . . . .8W-21-2 Power Distribution Center . . . . . . . . . . . .8W-21-2, 3 Powertrain Control Module. . . . . . . . . . . . . .8W-21-2

Component Page A/C Compressor Clutch Relay . . . . . . . .8W-30-15, 27 A/C Low Pressure Switch . . . . . . . . . . .8W-30-15, 22 Airbag Control Module . . . . . . . . .8W-30-3, 4, 20, 21 Automatic Shutdown

Relay . . . . . . . . . . . . . .8W-30-6, 10, 16, 17, 18, 27 Automatic Temperature Control

Module . . . . . . . . . . . . . . . . . . .8W-30-3, 4, 20, 21 Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-26 Battery Temperature Sensor . . . . . . . . . . . .8W-30-11 Body Control Module. . . . . . . . . . .8W-30-3, 4, 20, 21 Camshaft Position Sensor . . . . . . . . . . . . . . .8W-30-7 Clockspring . . . . . . . . . . . . . . . . . . .8W-30-11, 13, 24 Controller Anti-Lock Brake . . . . . . . . . . .8W-30-2, 19 Coolant Level Sensor . . . . . . . . . . . . . . . . .8W-30-29 Cooling Fan Motor . . . . . . . . . . . . . . . .8W-30-30, 31 Crankshaft Position Sensor. . . . . . . . . . .8W-30-7, 24 Cruise Switch No. 1 . . . . . . . . . . . . . . . . . .8W-30-13 Cruise Switch No. 2 . . . . . . . . . . . . . . . . . .8W-30-13 Data Link Connector . . . . . .8W-30-2, 3, 4, 19, 20, 21 Diagnostic Connector. . . . . . . . . . . . . . .8W-30-30, 31 Downstream Heated Oxygen Sensor . . . . . .8W-30-10 Driver Door Module. . . . . . . . . . . .8W-30-3, 4, 20, 21 Duty Cycle Evap/Purge Solenoid. . . . . . . . . .8W-30-5 Electronic Vacuum Modulator . . . . . . . . . . .8W-30-28 Engine Coolant Temperature Sensor. . . .8W-30-8, 29 Fuel Heater. . . . . . . . . . . . . . . . . . . . . . . . .8W-30-28 Fuel Heater Relay. . . . . . . . . . . . . . . . . . . .8W-30-27 Fuel Injector No. 1 . . . . . . . . . . . . . . . .8W-30-16, 17 Fuel Injector No. 2 . . . . . . . . . . . . . . . .8W-30-16, 18 Fuel Injector No. 3 . . . . . . . . . . . . . . . .8W-30-16, 17 Fuel Injector No. 4 . . . . . . . . . . . . . . . .8W-30-16, 18 Fuel Injector No. 5 . . . . . . . . . . . . . . . .8W-30-16, 17 Fuel Injector No. 6 . . . . . . . . . . . . . . . .8W-30-16, 18 Fuel Injector No. 7 . . . . . . . . . . . . . . . . . . .8W-30-17 Fuel Injector No. 8 . . . . . . . . . . . . . . . . . . .8W-30-18 Fuel Pump Module . . . . . . . . . . . . .8W-30-11, 25, 26 Fuel Pump Relay. . . . . . . . . . . . . . . . . . . . .8W-30-11 Fuel Sender Unit . . . . . . . . . . . . . . . . . . . .8W-30-28 Fuse 2 (PDC). . . . . . . . . . . . . . . . . . . . .8W-30-30, 31 Fuse 4 (PDC) . . . . . . . . . . . . . . . . . . . . . . .8W-30-27 Fuse 7 (JB) . . . . . . . . . . . . . . . . . . . . . . .8W-30-2, 19 Fuse 16 (PDC) . . . . . . . . . . . . . . . . . . . .8W-30-11, 22 Fuse 17 (PDC). . . . . . . . . . . . . . . . . . . . . . .8W-30-14 Fuse 18 (PDC) . . . . . . .8W-30-5, 6, 11, 22, 27, 30, 31 Fuse 20 (PDC). . . . . . . . . . . . . . . . . . .8W-30-5, 6, 27 G104 . . . . . . . . . . . . . . . . . . . . . .8W-30-2, 14, 19, 22 G105 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-10 G106 . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-26, 28 G107 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-27 G110 . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-30, 31 G118 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-28

8W-30 FUEL/IGNITION SYSTEMS

Component Page G123 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-24 G301 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-11 G302 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-28 G303 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-12 Generator . . . . . . . . . . . . . . . . . . . . . . .8W-30-14, 23 Glow Plug . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-26 Glow Plug Relay . . . . . . . . . . . . . . . . . . . . .8W-30-26 High Pressure Cut-Out Switch . . . . . . .8W-30-30, 31 High Speed Cooling Fan Relay . . . . . . .8W-30-30, 31 Idle Air Control Motor . . . . . . . . . . . . . . . . .8W-30-9 Ignition Coil . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-6 Ignition Relay . . . . . . . . . . . . . . . . . . . .8W-30-30, 31 Instrument Cluster . . . . . . . . . . . .8W-30-3, 4, 20, 21 Intake Air Temperature Sensor. . . . . . . . . . .8W-30-8 Junction Block . . . . . . . . . . . . . . . . . . . .8W-30-2, 19 Leak Detection Pump . . . . . . . . . . . . . . . . . .8W-30-5 Low Speed Cooling Fan Relay. . . . . . . .8W-30-30, 31 Lower Hose Coolant Switch. . . . . . . . . .8W-30-30, 31 Manifold Absolute Pressure Sensor. . . . . .8W-30-7, 8 Mass Air Flow Module . . . . . . . . . . . . . . . .8W-30-26 Memory Seat Module. . . . . . . . . . .8W-30-3, 4, 20, 21 MSA Controller. .8W-30-19, 22, 23, 24, 25, 26, 27, 29 Needle Sensor . . . . . . . . . . . . . . . . . . . . . . .8W-30-24 Oil Pressure Sensor. . . . . . . . . . . . . . . .8W-30-12, 29 Output Shaft Speed Sensor. . . . . . . . . . . . .8W-30-12 Overdrive Pressure Switch . . . . . . . . . . . . . .8W-30-5 Overhead Console . . . . . . . . . . . . .8W-30-3, 4, 20, 21 Park/Neutral Position Switch . . . . . . . . . . .8W-30-12 Passenger Door Module . . . . . . . .8W-30-3, 4, 20, 21 Pedal Position Sensor . . . . . . . . . . . . . . . . .8W-30-23 Power Distribution Center . . . . . . . . .8W-30-5, 6, 10,

11, 14, 16, 17, 18, 22, 27, 30, 31 Powertrain Control Module . . .8W-30-2, 3, 4, 5, 6, 7,

8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19,

20, 21, 22, 23, 24, 27, 28, 29 Radio . . . . . . . . . . . . . . . . . . . . . . .8W-30-3, 4, 20, 21 Stop Lamp Switch . . . . . . . . . . . . . . . . .8W-30-12, 29 Throttle Position Sensor . . . . . . . . . . . . . .8W-30-7, 8 Transmission Control Relay . . . . . . . . . . . .8W-30-14 Transmission Solenoid Assembly. . . . . .8W-30-14, 15 Upper Hose Coolant Switch. . . . . . . . . .8W-30-30, 31 Upstream Heated Oxygen Sensor . . . . . . . .8W-30-10 Vehicle Information Center/Graphic Display Module. . . . . . . . . . . . . . . . .8W-30-3, 4, 20, 21, 28 Vehicle Speed Control Servo . . . . . . . . . .8W-30-5, 12 Vehicle Speed Sensor. . . . . . . . . . . . . . .8W-30-13, 24 Water In Fuel Sensor . . . . . . . . . . . . . . . . .8W-30-24

Component Page Fuse 5 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-31-5 Fuse 12 (JB) . . . . . . . . . . . . . . . . . . . . . . . . .8W-31-5 Fuse 17 (PDC) . . . . . . . . . . . . . . . . . . . . . . .8W-31-2 G303 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-31-5 Generator . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-31-2 Junction Block . . . . . . . . . . . . . . . . . . . . . . .8W-31-5 Output Shaft Speed Sensor. . . . . . . . . . . . . .8W-31-4 Overdrive Pressure Switch . . . . . . . . . . . . . .8W-31-5 Overdrive Solenoid Control. . . . . . . . . . . . . .8W-31-2 Power Distribution Center . . . . . . . . . . . . . .8W-31-2

8W-31 TRANSMISSION CONTROL SYSTEM

Component Page Powertrain Control Module . . . . . . . .8W-31-2, 3, 4, 5 Shift Interlock. . . . . . . . . . . . . . . . . . . . . . . .8W-31-5 Stop Lamp Switch. . . . . . . . . . . . . . . . . . . . .8W-31-5 Throttle Position Sensor . . . . . . . . . . . . . . . .8W-31-4 Torque Converter Clutch Solenoid Control . .8W-31-2 Transmission Control Relay . . . . . . . . . . . . .8W-31-2 Transmission Solenoid Assembly. . . . . . . .8W-31-2, 3 Underdrive Solenoid Control. . . . . . . . . . . . .8W-31-2 Vehicle Speed Sensor . . . . . . . . . . . . . . . . . .8W-31-4

Component Page Clockspring . . . . . . . . . . . . . . . . . . . . . . . .8W-33-4, 5 Cruise Switch No. 1 . . . . . . . . . . . . . . . . .8W-33-4, 5 Cruise Switch No. 2 . . . . . . . . . . . . . . . . .8W-33-4, 5 Fuse 5 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-33-3 Fuse 9 (JB) . . . . . . . . . . . . . . . . . . . . . . . .8W-33-2, 3 G107 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-33-2 G109 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-33-3 G303 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-33-2, 3

8W-33 VEHICLE SPEED CONTROL

Component Page Junction Block . . . . . . . . . . . . . . . . . . . . .8W-33-2, 3 MSA Controller . . . . . . . . . . . . . . . . . . . . .8W-33-3, 5 Powertrain Control Module . . . . . . . .8W-33-2, 3, 4, 5 Shift Interlock. . . . . . . . . . . . . . . . . . . . . . . .8W-33-3 Stop Lamp Switch. . . . . . . . . . . . . . . . . . .8W-33-2, 3 Vehicle Speed Control Servo . . . . . . . . . . . . .8W-33-2 Vehicle Speed Sensor . . . . . . . . . . . . . . . .8W-33-4, 5

Component Page Controller Anti-Lock Brake . . . . . . . . . .8W-35-2, 3, 4 Data Link Connector . . . . . . . . . . . . . . . . . .8W-35-2 Fuse 5 (PDC) . . . . . . . . . . . . . . . . . . . . . . . .8W-35-2 Fuse 9 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-35-3 Fuse 11 (JB) . . . . . . . . . . . . . . . . . . . . . . . . .8W-35-2 Fuse 14 (PDC) . . . . . . . . . . . . . . . . . . . . . . .8W-35-2 G Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-35-3 G108 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-35-2

8W-35 ANTI-LOCK BRAKES

Component Page Instrument Cluster . . . . . . . . . . . . . . . . . . . .8W-35-3 Junction Block . . . . . . . . . . . . . . . . . . . . .8W-35-2, 3 Left Front Wheel Speed Sensor . . . . . . . . . .8W-35-4 Left Rear Wheel Speed Sensor . . . . . . . . . . .8W-35-4 Power Distribution Center . . . . . . . . . . . . . .8W-35-2 Right Front Wheel Speed Sensor . . . . . . . . .8W-35-4 Right Rear Wheel Speed Sensor . . . . . . . . . .8W-35-4 Stop Lamp Switch. . . . . . . . . . . . . . . . . . . . .8W-35-3

Component Page Automatic Headlamp Light Sensor/

Vtss Led . . . . . . . . . . . . . . . . . . . . . . . . . .8W-39-3 Body Control Module. . . . . . . . . . .8W-39-2, 3, 4, 5, 6 Clockspring No. 1 . . . . . . . . . . . . . . . . . . . . .8W-39-6 Driver Front Cylinder Lock Switch. . . . . . . .8W-39-5 Driver Front Door Ajar Switch . . . . . . . . . . .8W-39-5 Driver Rear Door Ajar Switch. . . . . . . . . . . .8W-39-5 Engine Starter Motor Relay . . . . . . . . . . . . .8W-39-2 Fuse 11 (PDC). . . . . . . . . . . . . . . . . . . . . . . .8W-39-3 Fuse 13 (PDC) . . . . . . . . . . . . . . . . . . . . . . .8W-39-3 Fuse 17 (JB) . . . . . . . . . . . . . . . . . . . . . . . . .8W-39-3 Fuse 18 (PDC) . . . . . . . . . . . . . . . . . . . . . . .8W-39-2 Fuse 3 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-39-2 Fuse 6 (PDC) . . . . . . . . . . . . . . . . . . . . . . . .8W-39-6 Fuse 7 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-39-3 Fuse 8 (PDC) . . . . . . . . . . . . . . . . . . . . . . . .8W-39-2 G106 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-39-6 G300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-39-4, 5 G301 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-39-5

8W-39 VEHICLE THEFT SECURITY SYSTEM

Component Page G302 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-39-5 G303 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-39-4 Hood Switch . . . . . . . . . . . . . . . . . . . . . . . . .8W-39-4 Horn No. 1 . . . . . . . . . . . . . . . . . . . . . . . . . .8W-39-6 Horn No. 2 . . . . . . . . . . . . . . . . . . . . . . . . . .8W-39-6 Horn Relay . . . . . . . . . . . . . . . . . . . . . . . . . .8W-39-6 Horn Switch . . . . . . . . . . . . . . . . . . . . . . . . .8W-39-6 Ignition Switch . . . . . . . . . . . . . . . . . . . . . . .8W-39-2 Junction Block . . . . . . . . . . . . . . . . . . .8W-39-2, 3, 6 Liftgate Ajar Switch . . . . . . . . . . . . . . . . . . .8W-39-4 Liftgate Cylinder Lock Switch . . . . . . . . . . .8W-39-5 Liftglass Ajar Switch. . . . . . . . . . . . . . . . . . .8W-39-4 Park Lamp Relay . . . . . . . . . . . . . . . . . . . . .8W-39-3 Passenger Front Cylinder Lock Switch . . . . .8W-39-5 Passenger Front Door Ajar Switch . . . . . . . .8W-39-5 Passenger Rear Door Ajar Switch . . . . . . . . .8W-39-5 Power Distribution Center . . . . . . . . . .8W-39-2, 3, 6 Vehicle Speed Control/Horn Switch. . . . . . . .8W-39-6

Component Page ABS Warning Lamp . . . . . . . . . . . . . . . . . . .8W-40-5 Airbag Warning Lamp . . . . . . . . . . . . . . . . .8W-40-2 Body Control Module . . . . . . . . . . . . . . . .8W-40-4, 6 Brake Pressure Switch . . . . . . . . . . . . . . . . .8W-40-6 Brake Warning Lamp . . . . . . . . . . . . . . . . . .8W-40-5 Check Engine Lamp . . . . . . . . . . . . . . . . . . .8W-40-2 Check Gages Lamp . . . . . . . . . . . . . . . . . . . .8W-40-5 Controller Anti-Lock Brake. . . . . . . . . . . . . .8W-40-5 Cruise Lamp . . . . . . . . . . . . . . . . . . . . . . . . .8W-40-5 Data Link Connector . . . . . . . . . . . . . . . . . .8W-40-3 Daytime Running Lamp Module . . . . . . . . . .8W-40-6 Engine Coolant Temperature Gauge . . . . . . .8W-40-3 Fuel Gauge . . . . . . . . . . . . . . . . . . . . . . . . . .8W-40-3 Fuse 5 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-40-5 Fuse 7 (JB) . . . . . . . . . . . . . . . . . . . . . . . .8W-40-2, 5 G108 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-40-6 G109 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-40-4

8W-40 INSTRUMENT CLUSTER

Component Page G303 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-40-2, 5 Headlamp Switch . . . . . . . . . . . . . . . . . . . . .8W-40-4 High Beam Indicator Lamp . . . . . . . . . . . . .8W-40-5 Ignition Switch . . . . . . . . . . . . . . . . . . . . . . .8W-40-6 Illumination Lamps . . . . . . . . . . . . . . . . . . .8W-40-4 Instrument Cluster . . . . . . . . . . . . . .8W-40-2, 3, 4, 5 Junction Block . . . . . . . . . . . . . . . . . . .8W-40-2, 4, 5 Left Front Turn Signal Lamp . . . . . . . . . . . .8W-40-4 Left Turn Signal Indicator Lamp . . . . . . . . .8W-40-4 Low Fuel Warning Lamp . . . . . . . . . . . . . . .8W-40-2 Oil Pressure Gauge. . . . . . . . . . . . . . . . . . . .8W-40-3 Right Turn Signal Indicator Lamp . . . . . . . .8W-40-4 Seat Belt Warning Lamp . . . . . . . . . . . . . . .8W-40-2 Speedometer . . . . . . . . . . . . . . . . . . . . . . . . .8W-40-3 Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . .8W-40-3 Turn Signal/Hazard Warning Switch . . . . . .8W-40-4 Volt Meter. . . . . . . . . . . . . . . . . . . . . . . . . . .8W-40-3

Component Page Body Control Module . . . . . . . . . . . . . . . .8W-41-2, 3 Cigar Lighter . . . . . . . . . . . . . . . . . . . . . . . .8W-41-4 Cigar Lighter Relay . . . . . . . . . . . . . . . . .8W-41-3, 4 Cigar Lighter/Power Outlet . . . . . . . . . . . . .8W-41-3 Clockspring. . . . . . . . . . . . . . . . . . . . . . . . . .8W-41-2 Fuse 2 (JB) . . . . . . . . . . . . . . . . . . . . . . . .8W-41-3, 4 Fuse 6 (PDC) . . . . . . . . . . . . . . . . . . . . . . . .8W-41-2 Fuse 14 (JB) . . . . . . . . . . . . . . . . . . . . . . .8W-41-3, 4 Fuse 21 (JB) . . . . . . . . . . . . . . . . . . . . . . .8W-41-3, 4 G106 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-41-2

8W-41 HORN/CIGAR LIGHTER

Component Page G303 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-41-3, 4 Horn No. 1 . . . . . . . . . . . . . . . . . . . . . . . . . .8W-41-2 Horn No. 2 . . . . . . . . . . . . . . . . . . . . . . . . . .8W-41-2 Horn Relay . . . . . . . . . . . . . . . . . . . . . . . . . .8W-41-2 Horn Switch . . . . . . . . . . . . . . . . . . . . . . . . .8W-41-2 Junction Block . . . . . . . . . . . . . . . . . . .8W-41-2, 3, 4 Power Distribution Center . . . . . . . . . . . . . .8W-41-2 Power Outlet. . . . . . . . . . . . . . . . . . . . . . . . .8W-41-4 Vehicle Speed Control/Horn Switch. . . . . . . .8W-41-2

Component Page A/C Compressor Clutch . . . . . . . . . . . . .8W-42-10, 11 A/C Compressor Clutch Relay . . . . . . . .8W-42-10, 11 A/C Heater Control . . . . . . . . . . . . . . . . . .8W-42-2, 5 A/C High Pressure Switch. . . . . . . . . . .8W-42-12, 13 A/C Low Pressure Switch . . . . . . . . . . .8W-42-12, 13 Ambient Temperature Sensor . . . . . . . . . . . .8W-42-6 Automatic Shutdown Relay. . . . . . . . . . . . .8W-42-11 Automatic Temperature Control

Module . . . . . . . . . . . . . . . . .8W-42-2, 3, 4, 6, 8, 9 Blend Door Actuator . . . . . . . . . . . . . . .8W-42-6, 7, 8 Blower Motor . . . . . . . . . . . . . . . . . . . . . .8W-42-2, 5 Blower Motor Resistor Block. . . . . . . . . . .8W-42-2, 5 Blower Power Module . . . . . . . . . . . . . . . . . .8W-42-3 Body Control Module . . . . . . . . . . . . . .8W-42-4, 5, 6 Data Link Connector . . . . . . . . . . . . . . . . . .8W-42-9 Fuse 3 (PDC). . . . . . . . . . . . . . . . . . . . . . . .8W-42-11 Fuse 7 (PDC) . . . . . . . . . . . . . . . . . . . . . .8W-42-2, 3 Fuse 12 (JB) . . . . . . . . . . . . . . . . . . . . .8W-42-5, 7, 9

8W-42 AIR CONDITIONING/HEATER

Component Page Fuse 18 (PDC). . . . . . . . . . . . . . . . . . . . . . .8W-42-10 Fuse 20 (JB) . . . . . . . . . . . . . . . . . . . . . . . . .8W-42-2 Fuse 20 (PDC). . . . . . . . . . . . . . . . . . . . . . .8W-42-11 Fuse 21 (PDC) . . . . . . . . . . . . . . . . . . . .8W-42-10, 11 G104 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-42-11 G105 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-42-10 G106 . . . . . . . . . . . . . . . . . . . . . . . .8W-42-10, 11, 12 G107 . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-42-2, 4, 7 G111 . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-42-2, 4, 7 G303 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-42-7 In-Car Temperature Sensor . . . . . . . . . . . . .8W-42-6 Junction Block . . . . . . . . . . . . . . . . .8W-42-2, 5, 7, 9 Mode Door Actuator . . . . . . . . . . . . . . . . .8W-42-6, 8 MSA Controller . . . . . . . . . . . . . . . . . . . . . .8W-42-13 Power Distribution Center. . . . . . .8W-42-2, 3, 10, 11 Powertrain Control Module . . . . . . . . . .8W-42-12, 13 Recirculation Door Actuator . . . . . . . . . . . . .8W-42-9 Solar Sensor . . . . . . . . . . . . . . . . . . . . . . . . .8W-42-6

Component Page Airbag Control Module . . . . . . . . . . . . . . .8W-43-2, 3 Airbag Warning Lamp . . . . . . . . . . . . . . . . .8W-43-3 Clockspring. . . . . . . . . . . . . . . . . . . . . . . . . .8W-43-2 Driver Airbag . . . . . . . . . . . . . . . . . . . . . . . .8W-43-2 Fuse 4 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-43-2 Fuse 7 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-43-3

8W-43 AIRBAG SYSTEM

Component Page Fuse 22 (JB) . . . . . . . . . . . . . . . . . . . . . . . . .8W-43-2 G303 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-43-2, 3 Instrument Cluster . . . . . . . . . . . . . . . . . . . .8W-43-3 Junction Block . . . . . . . . . . . . . . . . . . . . .8W-43-2, 3 Passenger Airbag . . . . . . . . . . . . . . . . . . . . .8W-43-2

Component Page A/C Heater Control . . . . . . . . . . . . . . . . . . .8W-44-12 Ash Receiver Lamp . . . . . . . . . . . . . . . .8W-44-11, 12 Automatic Day/Night Mirror. . . . . . . . . . . . .8W-44-6 Automatic Temperature Control Module . . .8W-44-12 Back-Up Lamp Switch . . . . . . . . . . . . . . . . .8W-44-7 Body Control Module . . . . . .8W-44-2, 5, 9, 11, 12, 13 Cargo Lamp . . . . . . . . . . . . . . . . . . . . . . . . .8W-44-5 Cigar Lighter Lamp . . . . . . . . . . . . . . . . . .8W-44-12 Cigar Lighter/Power Outlet. . . . . . . . . . . . .8W-44-12 Circuit Breaker 2 . . . . . . . . . . . . . . . . . . . .8W-44-10 Courtesy Lamp Relay . . . . . . . . . .8W-44-2, 3, 4, 5, 9 Dome/Reading Lamp. . . . . . . . . . . . . . . . . . .8W-44-3 Driver Door Courtesy Lamp . . . . . . . . . . . .8W-44-10 Driver Door Module . . . . . . . . . . . . . . . . . .8W-44-10 Driver Front Door Ajar Switch . . . . . . . . . .8W-44-13 Driver Outside Power Mirror . . . . . . . . . . . .8W-44-6 Driver Rear Door Ajar Switch . . . . . . . . . . .8W-44-13 Floor Console Lamps. . . . . . . . . . . . . . . . . .8W-44-11 Fuse 6 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-44-6 Fuse 16 (JB) . . . . . . . . . . . . . . . . .8W-44-2, 3, 4, 5, 9 G107 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-44-2 G109 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-44-2 G300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-44-13 G301 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-44-10 G302 . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-44-10, 11 G303 . . . . . . . . . . . . . . . . . . .8W-44-2, 7, 8, 9, 11, 12

8W-44 INTERIOR LIGHTING

Component Page Glove Box Lamp . . . . . . . . . . . . . . . . . . . . . .8W-44-2 Headlamp Switch . . . . . . . . . . . . . . . . . . . .8W-44-11 Instrument Cluster . . . . . . . . . . . . . . . . . . .8W-44-11 Junction Block . . . . . . .8W-44-2, 3, 4, 5, 6, 7, 8, 9, 10 Key-In Switch/Halo Lamp. . . . . . . . . . . . . . .8W-44-2 Left Courtesy Lamp . . . . . . . . . . . . . . . . .8W-44-2, 9 Left Visor/Vanity Lamp. . . . . . . . . . . . . . . . .8W-44-5 Liftgate Ajar Switch . . . . . . . . . . . . . . . . . .8W-44-13 Liftglass Ajar Switch. . . . . . . . . . . . . . . . . .8W-44-13 Mercury Switch. . . . . . . . . . . . . . . . . . . . . . .8W-44-2 Overhead Console . . . . . . . . . . . . . . . . . . . . .8W-44-4 Park/Neutral Position Switch . . . . . . . . . . . .8W-44-8 Passenger Door Courtesy Lamp . . . . . . . . .8W-44-10 Passenger Door Module . . . . . . . . . . . . . . .8W-44-10 Passenger Front Door Ajar Switch . . . . . . .8W-44-13 Passenger Rear Door Ajar Switch . . . . . . . .8W-44-13 Powertrain Control Module. . . . . . . . . . . . . .8W-44-8 Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-44-9 Right Courtesy Lamp . . . . . . . . . . . . . . . .8W-44-2, 9 Right Visor/Vanity Lamp . . . . . . . . . . . . . . .8W-44-5 Switch Pod . . . . . . . . . . . . . . . . . . . . . . . . .8W-44-11 Underhood Lamp . . . . . . . . . . . . . . . . . . . . .8W-44-2 Universal Garage Door Opener. . . . . . . . . . .8W-44-5 Vehicle Information Center/

Graphic Display Module . . . . . . . . . . . . .8W-44-12

Component Page A/C Heater Control . . . . . . . . . . . . . . . . . . . .8W-45-9 Ambient Temperature Sensor . . . . . . . . . . . .8W-45-9 Ash Receiver Lamp . . . . . . . . . . . . . . . . . . .8W-45-10 Automatic Headlamp Light Sensor/

Vtss Led . . . . . . . . . . . . . . . . . . . . . . . . . .8W-45-4 Automatic Headlamp Relay . . . . . . . . . . . . .8W-45-5 Automatic Temperature Control Module. . . .8W-45-9 Body Control Module . .8W-45-2, 3, 4, 5, 6, 7, 8, 9, 10 Brake Pressure Switch . . . . . . . . . . . . . . . . .8W-45-9 Cargo Lamp . . . . . . . . . . . . . . . . . . . . . . . .8W-45-10 Circuit Breaker 1 . . . . . . . . . . . . . . . . . . . . .8W-45-7 Clockspring. . . . . . . . . . . . . . . . . . . . . . . . . .8W-45-7 Courtesy Lamp Relay . . . . . . . . . . . . . . . . . .8W-45-3 Data Link Connector . . . . . . . . . . . . . . . . . .8W-45-2 Daytime Running Lamp Module . . . . . . . . . .8W-45-5 Driver Front Cylinder Lock Switch. . . . . . . .8W-45-8 Driver Front Door Ajar Switch . . . . . . . . . . .8W-45-8 Driver Rear Door Ajar Switch. . . . . . . . . . . .8W-45-8 Floor Console Lamps. . . . . . . . . . . . . . . . . .8W-45-10 Fog Lamp Relay . . . . . . . . . . . . . . . . . . . . . .8W-45-5 Fog Lamp Switch . . . . . . . . . . . . . . . . . . . . .8W-45-6 Fuse 3 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-45-2 Fuse 3 (PDC) . . . . . . . . . . . . . . . . . . . . . . . .8W-45-3 Fuse 6 (PDC) . . . . . . . . . . . . . . . . . . . . . . . .8W-45-3 Fuse 7 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-45-4 Fuse 17 (JB) . . . . . . . . . . . . . . . . . . . . . . . . .8W-45-4 Fuse 18 (PDC) . . . . . . . . . . . . . . . . . . . . . . .8W-45-2

8W-45 BODY CONTROL MODULE

Component Page G300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-45-11 G302 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-45-4 G303 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-45-2, 6 Headlamp Dimmer Switch . . . . . . . . . . . . . .8W-45-5 Headlamp Switch . . . . . . . . . . . . . . . . . . . . .8W-45-6 Hood Switch . . . . . . . . . . . . . . . . . . . . . . . .8W-45-10 Horn Relay . . . . . . . . . . . . . . . . . . . . . . . . . .8W-45-3 Instrument Cluster . . . . . . . . . . . . . . . . . . .8W-45-10 Intermittent Wiper Relay . . . . . . . . . . . . . . .8W-45-7 Intermittent Wiper Switch . . . . . . . . . . . . . .8W-45-7 Junction Block. . . . . . . . . . . . . . . .8W-45-2, 3, 4, 5, 7 Key-In Switch/Halo Lamp. . . . . . . . . . . . . . .8W-45-4 Liftgate Ajar Switch . . . . . . . . . . . . . . . . . .8W-45-11 Liftgate Cylinder Lock Switch . . . . . . . . . . .8W-45-8 Liftglass Ajar Switch. . . . . . . . . . . . . . . . . .8W-45-11 Park Brake Switch . . . . . . . . . . . . . . . . . . . .8W-45-9 Park Lamp Relay . . . . . . . . . . . . . . . . . . . . .8W-45-4 Passenger Front Cylinder Lock Switch . . . . .8W-45-8 Passenger Front Door Ajar Switch . . . . . . . .8W-45-8 Passenger Rear Door Ajar Switch . . . . . . . . .8W-45-8 Power Distribution Center . . . . . . . . . . . .8W-45-2, 3 Rear Window Defogger Relay . . . . . . . . . . . .8W-45-3 Rear Window Defogger Switch . . . . . . . . . . .8W-45-9 Rear Wiper Module . . . . . . . . . . . . . . . . . . .8W-45-11 Seat Belt Switch . . . . . . . . . . . . . . . . . . . . . .8W-45-4 Switch Pod . . . . . . . . . . . . . . . . . . . . . . . . .8W-45-10

Component Page Body Control Module . . . . . . . . . . . . . . . .8W-46-2, 5 Coolant Level Sensor . . . . . . . . . . . . . . . . . .8W-46-4 Electronic Flasher. . . . . . . . . . . . . . . . . . . . .8W-46-4 Four Wheel Drive Switch . . . . . . . . . . . . . . .8W-46-3 Fuse 6 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-46-2 Fuse 15 (PDC) . . . . . . . . . . . . . . . . . . . . . . .8W-46-2 Fuse 17 (JB) . . . . . . . . . . . . . . . . . . . . . . . . .8W-46-4 Fuse 20 (JB) . . . . . . . . . . . . . . . . . . . . . . . . .8W-46-2 G105 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-46-3 G106 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-46-3, 4 G109 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-46-4

8W-46 MESSAGE CENTER

Component Page G118 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-46-4 G303 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-46-2 Headlamp Switch . . . . . . . . . . . . . . . . . . . . .8W-46-4 Junction Block . . . . . . . . . . . . . . . . . . .8W-46-2, 3, 4 Lamp Outage Module . . . . . . . . . . . . . . . . . .8W-46-4 Power Distribution Center . . . . . . . . . . . . . .8W-46-2 Powertrain Control Module. . . . . . . . . . . . . .8W-46-4 Turn Signal/Hazard Warning Switch . . . . . .8W-46-4 Vehicle Information Center/

Graphic Display Module . . . . . . . .8W-46-2, 3, 4, 5 Wiper Fluid Level Sensor . . . . . . . . . . . . . . .8W-46-4

Component Page Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-47-2 Body Control Module. . . . . . . . . . . . . . . .8W-47-2, 11 Clockspring . . . . . . . . . . . . . . . . . . . . . . . . .8W-47-11 Driver Front Door Speaker . . . . . . . . . .8W-47-4, 5, 7 Driver Rear Door Speaker. . . . . . . . . .8W-47-6, 7, 10 Fuse 1 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-47-2 Fuse 7 (JB) . . . . . . . . . . . . . . . . . . . . . . . .8W-47-8, 9 Fuse 13 (JB) . . . . . . . . . . . . . . . . . . . . . . . . .8W-47-3 Fuse 17 (JB) . . . . . . . . . . . . . . . . . . . . . . . . .8W-47-2 Fuse 20 (JB) . . . . . . . . . . . . . . . . . . . . . . . . .8W-47-2 G303 . . . . . . . . . . . . . . . . . . . . . .8W-47-2, 3, 8, 9, 11 Junction Block . . . . . . . . . . . . . . . . .8W-47-2, 3, 8, 9

8W-47 AUDIO SYSTEM

Component Page Left Instrument Panel Speaker. . . . . . . . .8W-47-4, 5 Park Lamp Relay . . . . . . . . . . . . . . . . . . . . .8W-47-2 Passenger Front Door Speaker . . . . . . .8W-47-4, 5, 7 Passenger Rear Door Speaker . . . . . . .8W-47-6, 7, 10 Power Amplifier. . . . . . . .8W-47-3, 4, 5, 6, 7, 8, 9, 10 Power Antenna . . . . . . . . . . . . . . . . . . . . . . .8W-47-3 Power Antenna Relay . . . . . . . . . . . . . . . . . .8W-47-3 Radio. . . . . . . . . . . . . . . . . . . . . . .8W-47-2, 3, 7, 8, 9 Rear Speaker . . . . . . . . . . . . . . . . . . . . . . .8W-47-10 Remote Radio Switch No. 1. . . . . . . . . . . . .8W-47-11 Remote Radio Switch No. 2. . . . . . . . . . . . .8W-47-11 Right Instrument Panel Speaker . . . . . . .8W-47-4, 5

Component Page Body Control Module . . . . . . . . . . . . . . . . . .8W-48-2 Fuse 10 (JB) . . . . . . . . . . . . . . . . . . . . . . . . .8W-48-2 G300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-48-2 G303 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-48-2

8W-48 REAR WINDOW DEFOGGER

Component Page Junction Block . . . . . . . . . . . . . . . . . . . . . . .8W-48-2 Rear Window Defogger . . . . . . . . . . . . . . . . .8W-48-2 Rear Window Defogger Relay . . . . . . . . . . . .8W-48-2 Rear Window Defogger Switch . . . . . . . . . . .8W-48-2

Component Page Automatic Day/Night Mirror. . . . . . . . . . . . .8W-49-2 Courtesy Lamp Relay . . . . . . . . . . . . . . . . . .8W-49-3 Data Link Connector . . . . . . . . . . . . . . . . . .8W-49-2 Fuse 6 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-49-2

8W-49 OVERHEAD CONSOLE

Component Page Fuse 16 (JB) . . . . . . . . . . . . . . . . . . . . . . .8W-49-2, 3 G303 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-49-3 Junction Block . . . . . . . . . . . . . . . . . . . . .8W-49-2, 3 Overhead Console . . . . . . . . . . . . . . . . . . .8W-49-2, 3

Component Page Automatic Headlamp Light Sensor/

Vtss Led . . . . . . . . . . . . . . . . . . . . . . . . . .8W-50-6 Automatic Headlamp Relay . . . . . . . . . . . . .8W-50-2 Body Control Module . . . . .8W-50-2, 3, 4, 5, 6, 7, 8, 9 Brake Pressure Switch . . . . . . . . . . . . . . . . .8W-50-5 Circuit Breaker. . . . . . . . . . . . . . . . . . . . . . .8W-50-6 Daytime Running Lamp Module . . . . . . . .8W-50-3, 5 Fog Lamp Relay . . . . . . . . . . . . . . . . . . . . . .8W-50-7 Fog Lamp Switch . . . . . . . . . . . . . . . . . . . . .8W-50-8 Fuse 6 (JB) . . . . . . . . . . . . . . . . . . . . . . .8W-50-5, 12 Fuse 13 (PDC). . . . . . . . . . . . . . . . . . . . . .8W-50-2, 5 Fuse 17 (JB) . . . . . . . . . . . . . . . . . . . . . . .8W-50-8, 9 Fuse 18 (JB) . . . . . . . . . . . . . . . . . . . . . . . . .8W-50-2 Fuse 19 (PDC) . . . . . . . . . . . . . . . . . . . . . . .8W-50-7 G106 . . . . . . . . . . . . . . . . . . . . . . . .8W-50-3, 4, 7, 11 G107 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-50-5 G109 . . . . . . . . . . . . . . . . . . . . . . . . . .8W-50-4, 7, 10 G303 . . . . . . . . . . . . . . . . . . . . . . . . . .8W-50-6, 8, 12 Headlamp Dimmer Switch . . . . . . . . . . . . . .8W-50-2 Headlamp Leveling Switch . . . . . . . . . . . . .8W-50-12 Headlamp Switch . . . . . . . . . . . . . . . . .8W-50-2, 6, 8

8W-50 FRONT LIGHTING

Component Page Instrument Cluster . . . . . . . . . . . . . . . .8W-50-10, 11 Junction Block . . . . . . . . . .8W-50-2, 5, 7, 8, 9, 11, 12 Left Fog Lamp . . . . . . . . . . . . . . . . . . . . . . .8W-50-7 Left Front Park Lamp. . . . . . . . . . . . . . . . .8W-50-10 Left Front Side Marker Lamp. . . . . . . . . . .8W-50-10 Left Front Turn Signal Lamp . . . . . . . . . . .8W-50-10 Left Headlamp . . . . . . . . . . . . . . . . . . . . .8W-50-3, 4 Left Headlamp Leveling Motor . . . . . . . . . .8W-50-12 Left Side Repeater . . . . . . . . . . . . . . . . . . .8W-50-10 Park Brake Switch . . . . . . . . . . . . . . . . . . . .8W-50-5 Park Lamp Relay . . . . . . . . . . . . . . . . . . .8W-50-8, 9 Power Distribution Center . . . . . . . . . .8W-50-2, 5, 7 Right Fog Lamp . . . . . . . . . . . . . . . . . . . . . .8W-50-7 Right Front Park Lamp. . . . . . . . . . . . . . . .8W-50-11 Right Front Side Marker Lamp. . . . . . . . . .8W-50-11 Right Front Turn Signal Lamp . . . . . . . . . .8W-50-11 Right Headlamp . . . . . . . . . . . . . . . . . . . .8W-50-3, 4 Right Headlamp Leveling Motor . . . . . . . . .8W-50-12 Right Side Repeater . . . . . . . . . . . . . . . . . .8W-50-11 Turn Signal/Hazard Warning Switch. . .8W-50-10, 11

Component Page Aftermarket Trailer Tow Connector . . . . .8W-51-4, 6 Back-Up Lamp Switch . . . . . . . . . . . . . . . . .8W-51-5 Body Control Module . . . . . . . . . . . . . . . . . .8W-51-2 Center High Mounted Stop Lamp No. 1 . . . .8W-51-5 Center High Mounted Stop Lamp No. 2 . . . .8W-51-5 Center High Mounted Stop Lamp No. 3 . . . .8W-51-5 Factory Trailer Tow Connector . . . . . . . . . . .8W-51-6 Fuse 5 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-51-2 Fuse 6 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-51-5 Fuse 9 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-51-2 Fuse 15 (JB) . . . . . . . . . . . . . . . . . . . . . . . . .8W-51-7 Fuse 17 (JB) . . . . . . . . . . . . . . . . . . . . . . .8W-51-2, 7 G300 . . . . . . . . . . . . . . . . . . . . . . .8W-51-3, 4, 5, 6, 7 G302 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-51-5, 6 G303 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-51-7 Headlamp Switch . . . . . . . . . . . . . . . . . . .8W-51-2, 7 Junction Block . . . . . . . . . . . . . . . . .8W-51-2, 5, 6, 7

8W-51 REAR LIGHTING

Component Page Lamp Outage Module . . . . . . . .8W-51-2, 3, 4, 5, 6, 7 Left Back-Up Lamp . . . . . . . . . . . . . . . . . . .8W-51-6 Left License Lamp . . . . . . . . . . . . . . . . . . . .8W-51-6 Left Rear Fog Lamp . . . . . . . . . . . . . . . . . . .8W-51-7 Left Rear Side Marker Lamp . . . . . . . . . . . .8W-51-3 Left Tail/Stop Lamp . . . . . . . . . . . . . . . . .8W-51-3, 4 Park Lamp Relay . . . . . . . . . . . . . . . . . . . . .8W-51-2 Park/Neutral Position Switch . . . . . . . . . . . .8W-51-5 Rear Fog Lamp Relay . . . . . . . . . . . . . . . . . .8W-51-7 Right Back-Up Lamp . . . . . . . . . . . . . . . . . .8W-51-6 Right License Lamp . . . . . . . . . . . . . . . . . . .8W-51-6 Right Rear Fog Lamp . . . . . . . . . . . . . . . . . .8W-51-7 Right Rear Side Marker Lamp . . . . . . . . . . .8W-51-3 Right Tail/Stop Lamp . . . . . . . . . . . . . . . .8W-51-3, 4 Stop Lamp Switch. . . . . . . . . . . . . . . . . . . . .8W-51-2 Trailer Tow Stop Lamp Relay . . . . . . . . . . . .8W-51-4 Vehicle Information Center/

Graphic Display Module . . . . . . . . . . . . . .8W-51-5

Component Page Aftermarket Trailer Tow Connector . . . . . . .8W-52-7 Electronic Flasher. . . . . . . . . . . . . . . . . . .8W-52-2, 5 Fuse 6 (JB) . . . . . . . . . . . . . . . . . . . . . . . .8W-52-2, 5 Fuse 8 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-52-7 Fuse 13 (JB) . . . . . . . . . . . . . . . . . . . . . . . . .8W-52-2 G106 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-52-4 G109 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-52-3 G300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-52-6, 7 G302 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-52-6, 7 G303 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-52-2 Instrument Cluster . . . . . . . . . . . . . . . . . . . .8W-52-2 Junction Block. . . . . . . . . . . . . . . .8W-52-2, 3, 4, 5, 7 Left Front Park Lamp . . . . . . . . . . . . . . . . .8W-52-3 Left Front Side Marker Lamp. . . . . . . . . . . .8W-52-3

8W-52 TURN SIGNALS

Component Page Left Front Turn Signal Lamp . . . . . . . . . . . .8W-52-3 Left Rear Turn Signal Lamp. . . . . . . . . . .8W-52-6, 7 Left Side Repeater . . . . . . . . . . . . . . . . . . . .8W-52-3 Park Lamp Relay . . . . . . . . . . . . . . . . . . .8W-52-3, 4 Right Front Park Lamp . . . . . . . . . . . . . . . .8W-52-4 Right Front Side Marker Lamp . . . . . . . . . .8W-52-4 Right Front Turn Signal Lamp . . . . . . . . . . .8W-52-4 Right Rear Turn Signal Lamp. . . . . . . . . .8W-52-6, 7 Right Side Repeater . . . . . . . . . . . . . . . . . . .8W-52-4 Trailer Tow Left Turn Relay . . . . . . . . . . . . .8W-52-6 Trailer Tow Right Turn Relay . . . . . . . . . . . .8W-52-6 Turn Signal/Hazard Warning Switch . . . .8W-52-2, 5 Vehicle Information Center/

Graphic Display Module . . . . . . . . . . . .8W-52-2, 5

Component Page Body Control Module . . . . . . . . . . . . . . . .8W-53-2, 3 Circuit Breaker 1 . . . . . . . . . . . . . . . . . . . . .8W-53-2 Fuse 3 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-53-4 Fuse 8 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-53-4 G109 . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-53-2, 3, 5 G300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-53-5 Intermittent Wiper Relay . . . . . . . . . . . . . . .8W-53-3 Intermittent Wiper Switch . . . . . . . . . . . .8W-53-2, 3 Junction Block . . . . . . . . . . . . . . . . . . . . .8W-53-2, 4 Liftgate Ajar Switch . . . . . . . . . . . . . . . . . . .8W-53-5

8W-53 WIPERS

Component Page Liftglass Ajar Switch. . . . . . . . . . . . . . . . . . .8W-53-5 Rear Washer Pump Motor. . . . . . . . . . . . . . .8W-53-5 Rear Wiper Module. . . . . . . . . . . . . . . . . . . .8W-53-4 Rear Wiper Motor Control . . . . . . . . . . . . . .8W-53-4 Rear Wiper/Washer Switch . . . . . . . . . . . . . .8W-53-4 Vehicle Information Center/

Graphic Display Module . . . . . . . . . . . . . .8W-53-5 Windshield Washer Pump Motor. . . . . . . . . .8W-53-2 Windshield Wiper Motor . . . . . . . . . . . . . .8W-53-2, 3 Wiper Fluid Level Sensor . . . . . . . . . . . . . . .8W-53-5

Component Page Aftermarket Trailer Tow Connector . . . . . . .8W-54-4 Back-Up Lamp Switch . . . . . . . . . . . . . . . . .8W-54-2 Factory Trailer Tow Connector . . . . . . . . .8W-54-2, 3 Fuse 8 (JB) . . . . . . . . . . . . . . . . . . . . . . . .8W-54-2, 4 G302 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-54-3 Junction Block . . . . . . . . . . . . . . . . . . . . .8W-54-2, 4 Lamp Outage Module . . . . . . . . . . . . . .8W-54-2, 3, 4

8W-54 TRAILER TOW

Component Page Park/Neutral Position Switch . . . . . . . . . . . .8W-54-2 Trailer Brake Provision. . . . . . . . . . . . . . . . .8W-54-2 Trailer Tow Circuit Breaker . . . . . . . . . . . . .8W-54-2 Trailer Tow Left Turn Relay . . . . . . . . . . . . .8W-54-3 Trailer Tow Right Turn Relay . . . . . . . . . . . .8W-54-3 Trailer Tow Stop Lamp Relay . . . . . . . . . .8W-54-2, 3 Turn Signal/Hazard Warning Switch . . . .8W-54-3, 4

Component Page Body Control Module . . . . . . . . . . . . . . . .8W-60-2, 3 Circuit Breaker 2 . . . . . . . . . . . . . . . . . . .8W-60-2, 3 Driver Door Module . . . . . . . . . . . . . . . . .8W-60-2, 4 Driver Front Power Window Motor. . . . . . . .8W-60-2 Driver Rear Power Window Motor . . . . . . . .8W-60-4 Driver Rear Power Window Switch. . . . . . . .8W-60-4 G301 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-60-3, 4

8W-60 POWER WINDOWS

Component Page G302 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-60-2, 4 Junction Block . . . . . . . . . . . . . . . . . . . . .8W-60-2, 3 Passenger Door Module. . . . . . . . . . . . . . .8W-60-3, 4 Passenger Front Power Window Motor . . . . .8W-60-3 Passenger Rear Power Window Motor . . . . .8W-60-4 Passenger Rear Power Window Switch . . . . .8W-60-4

Component Page Body Control Module . . . . . . . . . . . . . . . .8W-61-2, 3 Circuit Breaker 2 . . . . . . . . . . . . . . . . . . .8W-61-2, 3 Driver Door Module . . . . . . . . . . . . . . . . . . .8W-61-2 Driver Front Door Lock Motor . . . . . . . . . . .8W-61-2 Driver Rear Door Lock Motor . . . . . . . . . . . .8W-61-4 Fuse 8 (JB) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-61-5 G300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-61-5 G301 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-61-3 G302 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-61-2

8W-61 POWER DOOR LOCKS

Component Page Junction Block . . . . . . . . . . . . . . . . . . .8W-61-2, 3, 5 Liftgate Lock Motor . . . . . . . . . . . . . . . . . . .8W-61-4 Liftglass Limit Switch . . . . . . . . . . . . . . . . .8W-61-5 Liftglass Push Button . . . . . . . . . . . . . . . . . .8W-61-5 Liftglass Release Solenoid. . . . . . . . . . . . . . .8W-61-5 Passenger Door Module . . . . . . . . . . . . . . . .8W-61-3 Passenger Front Door Lock Motor . . . . . . . .8W-61-4 Passenger Rear Door Lock Motor . . . . . . . . .8W-61-4

Component Page Automatic Day/Night Mirror. . . . . . . . . . . . .8W-62-3 Circuit Breaker 2 . . . . . . . . . . . . . . . . . . . . .8W-62-2 Driver Door Module . . . . . . . . . . . . . . . . .8W-62-2, 3 Driver Outside Power Mirror . . . . . . . . . . . .8W-62-3 G301 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-62-2

8W-62 POWER MIRRORS

Component Page G302 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-62-2 Junction Block . . . . . . . . . . . . . . . . . . . . . . .8W-62-2 Passenger Door Module. . . . . . . . . . . . . . .8W-62-2, 4 Passenger Outside Power Mirror . . . . . . . . .8W-62-4

Component Page Circuit Breaker 3 . . . . .8W-63-2, 3, 4, 8, 9, 10, 13, 14 Driver Door Module . . . . . . . . . . . . . . . . . .8W-63-15 Driver Heated Seat Back . . . . . . . . . . . . . .8W-63-11 Driver Heated Seat Cushion . . . . . . . . . . . .8W-63-11 Driver Lumbar Motor . . . . . . . . . . . . . . . . . .8W-63-3 Driver Lumbar Sensor/Motor . . . . . . . . . .8W-63-5, 6 Driver Lumbar Switch . . . . . . . . . . . . . . .8W-63-2, 3 Driver Power Seat Front Riser Motor . . .8W-63-7, 10 Driver Power Seat Front Riser

Motor Sensor. . . . . . . . . . . . . . . . . . . . .8W-63-6, 7 Driver Power Seat Horizontal Motor. . . .8W-63-6, 10 Driver Power Seat Horizontal

Motor Sensor . . . . . . . . . . . . . . . . . . . . . .8W-63-6 Driver Power Seat Rear Riser Motor. . . .8W-63-7, 10 Driver Power Seat Rear Riser

Motor Sensor. . . . . . . . . . . . . . . . . . . . .8W-63-6, 7 Driver Power Seat Recliner Motor . . . . .8W-63-6, 10 Driver Power Seat Recliner

Motor Sensor . . . . . . . . . . . . . . . . . . . . . .8W-63-6 Driver Power Seat Switch . . . . . . . . . . . .8W-63-8, 10 Driver Seat Heater Control Module. . . .8W-63-11, 14

8W-63 POWER SEAT

Component Page Fuse 12 (JB) . . . . . . . . . . . . . . . . . . . . .8W-63-13, 14 G301 . . . . . . . . . . . . . . . . . . . . .8W-63-2, 3, 8, 10, 11 G302 . . . . . . . . . . . . . . . . . . . . . . . . . .8W-63-4, 9, 12 G303 . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-63-13, 14 Heated Seat Switch . . . . . . . . . .8W-63-11, 12, 13, 14 Junction Block . . . . . . .8W-63-2, 3, 4, 8, 9, 10, 13, 14 Memory Seat Module. . . . . . . .8W-63-2, 5, 6, 7, 8, 15 Memory Set Switch. . . . . . . . . . . . . . . . . . .8W-63-15 Passenger Door Module. . . . . . . . . . . . . . . .8W-63-15 Passenger Heated Seat Back. . . . . . . . . . . .8W-63-12 Passenger Heated Seat Cushion . . . . . . . . .8W-63-12 Passenger Lumbar Motor . . . . . . . . . . . . . . .8W-63-4 Passenger Lumbar Switch . . . . . . . . . . . . . .8W-63-4 Passenger Power Seat Front Riser Motor . . .8W-63-9 Passenger Power Seat Horizontal Motor . . .8W-63-9 Passenger Power Seat Rear Riser Motor. . . .8W-63-9 Passenger Power Seat Recliner Motor . . . . .8W-63-9 Passenger Power Seat Switch . . . . . . . . . . . .8W-63-9 Passenger Seat Heater Control

Module . . . . . . . . . . . . . . . . . . . . . . .8W-63-12, 13

Component Page Circuit Breaker 1 . . . . . . . . . . . . . . . . . . . . .8W-64-2 G303 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-64-2 Junction Block . . . . . . . . . . . . . . . . . . . . . . .8W-64-2 Sliding Roof Motor . . . . . . . . . . . . . . . . . . . .8W-64-3

8W-64 POWER SUNROOF

Component Page Sliding Roof Position Switch . . . . . . . . . . . . .8W-64-3 Sunroof Control Module . . . . . . . . . . . . . .8W-64-2, 3 Sunroof Switch . . . . . . . . . . . . . . . . . . . . . . .8W-64-2

Component Page S100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-10-20 S101 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-10-19 S102. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-11 S103 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-50-9 S104. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-4, 5 S105 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-28 S106 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-10-9 S107. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-50-3, 4 S108. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-50-3, 4 S109. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-8, 9 S110. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-50-12 S111. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-50-12 S112. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-50-12 S113. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-50-12 S114. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-50-12 S115. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-50-12 S117 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-40-6 S119. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-10 S120 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-53-3 S121. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-8, 9 S122 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-8 S124. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-6, 7 S125. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-6, 7 S126 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-2 S127 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-70-2 S128 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-10-21, 23 S129 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-10-21, 23 S130. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-3, 4 S131 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-33-4 S132 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-70-2 S133 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-7 S134 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-5 S135 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-70-3 S136. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-70-4, 6 S137. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-10-7, 8 S138 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-10-19 S140 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-24 S141 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-70-7 S142 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-19 S144 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-25 S145 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-52-3 S146 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-52-4 S149 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-8 S149 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-9 S150 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-10 S151 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-31 S152. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-4, 5 S153 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-30, 31 S154 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-30, 31 S170 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-20-3 S171 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-24 S172 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-4 S173 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-70-7 S174 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-21 S175 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-70-6 S178 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-19 S180 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-52-3 S183 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-30 S200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-2 S201 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-12 S202 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-20 S203. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-3, 20 S204. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-4, 21 S205 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-20 S206 (Gas) . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-31-5 S206 (Diesel). . . . . . . . . . . . . . . . . . . . . . . . . . .8W-33-3 S207 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-8 S209. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-44-11 S210 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-10-10, 11 S211 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-70-6

8W-70 SPLICE INFORMATION

Component Page S212 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-10 S214 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-44-12 S215 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-9 S216 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-19 S218 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-14 S219 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-42-6 S220 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-19 S221. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-42-2, 5 S222. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-42-6, 8 S223 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-42-8 S226. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-6, 7 S300. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-47-4, 5 S301. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-47-4, 5 S302 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-20 S303 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-45-9 S304 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-15 S305 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-39-5 S306. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-4, 21 S307. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-3, 20 S308 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-61-4 S309 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-17 S310 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-61-4 S311. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-21 S312 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-70-5 S314 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-16 S315 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-12 S316 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-13 S317 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-14 S318 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-12 S319. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-47-4, 5 S320 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-9 S321 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-17 S322 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-18 S323. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-11 S324 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-16 S325 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-14 S326 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-61-4 S327 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-61-4 S328 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-12 S329. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-45-11 S330. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-11 S331 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-54-2 S332 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-48-2 S333 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-14 S334 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-25 S335. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-47-4, 5 S336 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-12 S337 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-70-5 S340 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-52-7 S343. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-11 S400 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-70-4 S401 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-63-6 S402 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-17 S403 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-22 S404 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-63-12 S405 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-12-22 S406 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-15 S407. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-63-11 S412 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-51-3 S416. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-11 S417 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-13 S418 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-51-6 S419 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-15-12 S420 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-30-28 S421 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-51-3 S430. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-47-11 S431. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-33-4, 5 S432. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-47-11 S433. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-33-4, 5

Component Page A/C Compressor Clutch . . . . . . . . . . . . . . . . .8W-80-4 A/C Heater Control-C1. . . . . . . . . . . . . . . . . .8W-80-4 A/C Heater Control-C2. . . . . . . . . . . . . . . . . .8W-80-5 A/C High Pressure Switch . . . . . . . . . . . . . . .8W-80-5 A/C Low Pressure Switch. . . . . . . . . . . . . . . .8W-80-5 Aftermarket Trailer Tow Connector . . . . . . . .8W-80-5 Airbag Control Module. . . . . . . . . . . . . . . . . .8W-80-6 Ambient Temperature Sensor. . . . . . . . . . . . .8W-80-6 Ash Receiver Lamp . . . . . . . . . . . . . . . . . . . .8W-80-6 Automatic Day/Night Mirror . . . . . . . . . . . . .8W-80-6 Automatic Headlamp Light Sensor/

VTSS LED. . . . . . . . . . . . . . . . . . . . . . . . .8W-80-6 Automatic Temperature Control Module . . . .8W-80-7 Back-Up Lamp Switch . . . . . . . . . . . . . . . . . .8W-80-7 Battery Temperature Sensor . . . . . . . . . . . . .8W-80-7 Blend Door Actuator . . . . . . . . . . . . . . . . . . .8W-80-8 Blower Motor. . . . . . . . . . . . . . . . . . . . . . . . .8W-80-8 Blower Motor Resistor Block . . . . . . . . . . . . .8W-80-8 Blower Power Module . . . . . . . . . . . . . . . . . .8W-80-9 Body Control Module-C1 . . . . . . . . . . . . . . . .8W-80-9 Body Control Module-C2 . . . . . . . . . . . . . . .8W-80-10 Body Control Module-C3 . . . . . . . . . . . . . . .8W-80-11 Brake Pressure Switch. . . . . . . . . . . . . . . . .8W-80-11 C102 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-11 C131 (Diesel) . . . . . . . . . . . . . . . . . . . . . . . .8W-80-11 C131 (Diesel) . . . . . . . . . . . . . . . . . . . . . . . .8W-80-12 C131 (Gas) (LHD) . . . . . . . . . . . . . . . . . . . .8W-80-12 C131 (Gas) (RHD) . . . . . . . . . . . . . . . . . . . .8W-80-12 C132 (Gas) (LHD) . . . . . . . . . . . . . . . . . . . .8W-80-13 C132 (Gas) (RHD) . . . . . . . . . . . . . . . . . . . .8W-80-13 C144 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-14 C150 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-14 C159 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-14 C160 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-14 C170 (Diesel) . . . . . . . . . . . . . . . . . . . . . . .8W-80-14 C170 (Except Built-Up-Export). . . . . . . . . . .8W-80-15 C170 (Gas) (Built-Up-Export). . . . . . . . . . . .8W-80-15 C171 (Built-Up-Export) (Max Cooling) . . . . .8W-80-15 C182 (Diesel) . . . . . . . . . . . . . . . . . . . . . . . .8W-80-15 C206 (Automatic Temperature Control) . . . .8W-80-16 C206 (Manual A/C-Heater). . . . . . . . . . . . . .8W-80-16 C212 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-17 C231 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-17 C233 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-17 C234 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-18 C235 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-18 C236 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-19 C300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-19 C301 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-19 C302 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-19 C304 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-20 C305 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-20 C307 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-21 C309 (LHD) . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-21 C309 (RHD) . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-21 C316 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-22 C320 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-22

Component Page C321 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-22 C322 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-23 C323 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-23 C324 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-23 C325 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-23 C326 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-23 C328 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-24 C329 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-24 C330 (LHD) . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-24 C330 (RHD) . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-24 C331 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-24 C334 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-25 C335 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-25 C343 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-25 C345 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-26 C351 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-26 C353 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-26 C359 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-27 C364 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-27 C371 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-27 C372 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-27 Camshaft Position Sensor . . . . . . . . . . . . . .8W-80-28 Cargo Lamp. . . . . . . . . . . . . . . . . . . . . . . . .8W-80-28 Center High Mounted Stop Lamp No. 1 . . . .8W-80-28 Center High Mounted Stop Lamp No. 2 . . . .8W-80-28 Center High Mounted Stop Lamp No. 3 . . . .8W-80-29 Cigar Lighter (RHD) . . . . . . . . . . . . . . . . . .8W-80-29 Cigar Lighter/Power Outlet (LHD) . . . . . . . .8W-80-29 Clockspring - C1 . . . . . . . . . . . . . . . . . . . . .8W-80-29 Clockspring - C2 . . . . . . . . . . . . . . . . . . . . .8W-80-29 Clockspring - C3 . . . . . . . . . . . . . . . . . . . . .8W-80-29 Clutch Interlock Switch (M/T) . . . . . . . . . . .8W-80-30 Clutch Interlock Switch Jumper (A/T) . . . . .8W-80-30 Controller Anti-Lock Brake . . . . . . . . . . . . .8W-80-30 Coolant Level Sensor . . . . . . . . . . . . . . . . . .8W-80-30 Cooling Fan Motor (Max Cooling). . . . . . . . .8W-80-30 Crankshaft Position Sensor (Diesel) . . . . . . .8W-80-31 Crankshaft Position Sensor (Gas). . . . . . . . .8W-80-31 Cruise Switch No. 1 . . . . . . . . . . . . . . . . . . .8W-80-31 Cruise Switch No. 2 . . . . . . . . . . . . . . . . . . .8W-80-31 Data Link Connector . . . . . . . . . . . . . . . . . .8W-80-31 Daytime Running Lamp Module . . . . . . . . .8W-80-31 Diagnostic Connector (Max Cooling). . . . . . .8W-80-32 Dome/Reading Lamp . . . . . . . . . . . . . . . . . .8W-80-32 Downstream Heated Oxygen Sensor. . . . . . .8W-80-32 Driver Door Courtesy Lamp. . . . . . . . . . . . .8W-80-32 Driver Door Module- C1 . . . . . . . . . . . . . . .8W-80-32 Driver Door Module- C2 . . . . . . . . . . . . . . .8W-80-33 Driver Front Cylinder Lock Switch . . . . . . .8W-80-33 Driver Front Door Lock Motor . . . . . . . . . . .8W-80-33 Driver Front Door Speaker . . . . . . . . . . . . .8W-80-33 Driver Heated Seat Back . . . . . . . . . . . . . . .8W-80-33 Driver Heated Seat Cushion . . . . . . . . . . . .8W-80-33 Driver Lumbar Motor. . . . . . . . . . . . . . . . . .8W-80-33 Driver Lumbar Sensor/Motor . . . . . . . . . . . .8W-80-34 Driver Lumbar Switch . . . . . . . . . . . . . . . . .8W-80-34 Driver Outside Power Mirror . . . . . . . . . . . .8W-80-34

(Memory) . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-34 Driver Power Seat Horizontal Motor . . . . . .8W-80-35 Driver Power Seat Horizontal Motor Sensor

(Memory) . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-35 Driver Power Seat Rear Riser Motor . . . . . .8W-80-35 Driver Power Seat Rear Riser Motor Sensor

(Memory) . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-35 Driver Power Seat Recliner Motor . . . . . . . .8W-80-35 Driver Power Seat Recliner Motor Sensor

(Memory) . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-36 Driver Power Seat Switch . . . . . . . . . . . . . .8W-80-36 Driver Power Window Motor . . . . . . . . . . . .8W-80-36 Driver Rear Door Lock Motor. . . . . . . . . . . .8W-80-36 Driver Rear Door Speaker . . . . . . . . . . . . . .8W-80-36 Driver Rear Power Window Motor . . . . . . . .8W-80-37 Driver Rear Power Window Switch . . . . . . .8W-80-37 Driver Seat Heater Control Module (LHD). .8W-80-37 Driver Seat Heater Control Module (RHD). .8W-80-37 Duty Cycle Evap/Purge Solenoid . . . . . . . . .8W-80-38 Electronic Vacuum Modulator (Diesel) . . . . .8W-80-38 Engine Coolant Temperature Sensor

(2.5L/5.9L) . . . . . . . . . . . . . . . . . . . . . . .8W-80-38 Engine Coolant Temperature Sensor

(4.0L). . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-38 Engine Coolant Temperature Sensor

(Diesel) . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-38 Engine Starter Motor. . . . . . . . . . . . . . . . . .8W-80-39 Factory Trailer Tow Connector . . . . . . . . . . .8W-80-39 Floor Console Lamps . . . . . . . . . . . . . . . . . .8W-80-39 Four Wheel Drive Switch. . . . . . . . . . . . . . .8W-80-39 Fuel Heater . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-40 Fuel Injector No. 1. . . . . . . . . . . . . . . . . . . .8W-80-40 Fuel Injector No. 2. . . . . . . . . . . . . . . . . . . .8W-80-40 Fuel Injector No. 3. . . . . . . . . . . . . . . . . . . .8W-80-40 Fuel Injector No. 4. . . . . . . . . . . . . . . . . . . .8W-80-40 Fuel Injector No. 5. . . . . . . . . . . . . . . . . . . .8W-80-40 Fuel Injector No. 6. . . . . . . . . . . . . . . . . . . .8W-80-41 Fuel Injector No. 7 (5.2L/5.9L) . . . . . . . . . . .8W-80-41 Fuel Injector No. 8 (5.2L/5.9L) . . . . . . . . . . .8W-80-41 Fuel Pump Module (Diesel) . . . . . . . . . . . . .8W-80-41 Fuel Pump Module (Gas) . . . . . . . . . . . . . . .8W-80-42 Fuel Sender Unit (Diesel). . . . . . . . . . . . . . .8W-80-42 Fuel Timing Solenoid (Diesel) . . . . . . . . . . .8W-80-42 G Switch . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-43 Generator (Diesel) . . . . . . . . . . . . . . . . . . . .8W-80-43 Generator (Gas) . . . . . . . . . . . . . . . . . . . . . .8W-80-43 Glove Box Lamp . . . . . . . . . . . . . . . . . . . . .8W-80-43 Glow Plug Relay (Diesel) . . . . . . . . . . . . . . .8W-80-43 Headlamp Leveling Switch

(Built-Up-Export). . . . . . . . . . . . . . . . . . .8W-80-44 Headlamp Switch. . . . . . . . . . . . . . . . . . . . .8W-80-44 High Pressure Cut-Out Switch

(Max Cooling) . . . . . . . . . . . . . . . . . . . . .8W-80-45 High Speed Blower Motor Relay . . . . . . . . .8W-80-45 High Speed Cooling Fan Relay

(Max Cooling) . . . . . . . . . . . . . . . . . . . . .8W-80-45 Horn No. 1. . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-45 Horn No. 2. . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-45 Idle Air Control Motor (2.5L) . . . . . . . . . . . .8W-80-46

(Except Built-Up-Export) . . . . . . . . . . . . .8W-80-52 Left Airbag Sensor . . . . . . . . . . . . . . . . . . . .8W-80-52 Left Back-Up Lamp . . . . . . . . . . . . . . . . . . .8W-80-53 Left Courtesy Lamp. . . . . . . . . . . . . . . . . . .8W-80-53 Left Fog Lamp . . . . . . . . . . . . . . . . . . . . . . .8W-80-53 Left Front Park Lamp . . . . . . . . . . . . . . . . .8W-80-53 Left Front Side Marker Lamp . . . . . . . . . . .8W-80-53 Left Front Turn Signal Lamp. . . . . . . . . . . .8W-80-54 Left Front Wheel Speed Sensor . . . . . . . . . .8W-80-54 Left Headlamp (Built-Up-Export). . . . . . . . .8W-80-54 Left Headlamp (Except Built-Up-Export) . . .8W-80-54 Left Headlamp Leveling Motor. . . . . . . . . . .8W-80-54 Left Instrument Panel Speaker . . . . . . . . . .8W-80-55 Left License Lamp . . . . . . . . . . . . . . . . . . . .8W-80-55 Left Park Lamp . . . . . . . . . . . . . . . . . . . . . .8W-80-55 Left Park/Turn Signal Marker . . . . . . . . . . .8W-80-55 Left Rear Fog Lamp (Built-Up-Export). . . . .8W-80-55 Left Rear Side Marker Lamp

(Except Built-Up-Export) . . . . . . . . . . . . .8W-80-56 Left Rear Turn Signal Lamp . . . . . . . . . . . .8W-80-56 Left Rear Wheel Speed Sensor . . . . . . . . . . .8W-80-56 Left Side Repeater . . . . . . . . . . . . . . . . . . . .8W-80-56 Left Tail/Stop Lamp. . . . . . . . . . . . . . . . . . .8W-80-57 Left Visor/Vanity Lamp . . . . . . . . . . . . . . . .8W-80-57 Liftgate Ajar Switch. . . . . . . . . . . . . . . . . . .8W-80-57 Liftgate Cylinder Lock Switch . . . . . . . . . . .8W-80-57 Liftgate Lock Motor . . . . . . . . . . . . . . . . . . .8W-80-57 Liftglass Ajar Switch . . . . . . . . . . . . . . . . . .8W-80-58 Liftglass Limit Switch . . . . . . . . . . . . . . . . .8W-80-58 Liftglass Push Button . . . . . . . . . . . . . . . . .8W-80-58 Liftglass Release Solenoid . . . . . . . . . . . . . .8W-80-58 Low Speed Cooling Fan Relay

(Max Cooling) . . . . . . . . . . . . . . . . . . . . .8W-80-58 Lower Hose Coolant Switch

(Max Cooling) . . . . . . . . . . . . . . . . . . . . .8W-80-58

(LHD) . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-68 Passenger Seat Heater Control Module

(RHD) . . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-68 Pedal Position Sensor (Diesel) . . . . . . . . . . .8W-80-68 Power Amplifier - C1 (Limited Plus). . . . . . .8W-80-69 Power Amplifier - C1 (Premium) . . . . . . . . .8W-80-70 Power Amplifier - C2 (Limited Plus). . . . . . .8W-80-69 Power Amplifier - C2 (Premium) . . . . . . . . .8W-80-70 Power Outlet . . . . . . . . . . . . . . . . . . . . . . . .8W-80-71 Powertrain Control Module- C1 . . . . . . . . . .8W-80-71 Powertrain Control Module- C2 . . . . . . . . . .8W-80-72 Powertrain Control Module- C3 . . . . . . . . . .8W-80-73 Powertrain Control Module- C4 (Diesel). . . .8W-80-74 Radio- C1. . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-75 Radio- C2. . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-75 Radio- C3. . . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-75 Rear Speaker. . . . . . . . . . . . . . . . . . . . . . . .8W-80-75 Rear Washer Pump Motor . . . . . . . . . . . . . .8W-80-76

(Automatic Temperature Control). . . . . . .8W-80-76 Remote Radio Switch No. 1 . . . . . . . . . . . . .8W-80-76 Remote Radio Switch No. 2 . . . . . . . . . . . . .8W-80-76 Right Airbag Sensor. . . . . . . . . . . . . . . . . . .8W-80-77 Right Back-Up Lamp . . . . . . . . . . . . . . . . . .8W-80-77 Right Courtesy Lamp. . . . . . . . . . . . . . . . . .8W-80-77 Right Fog Lamp. . . . . . . . . . . . . . . . . . . . . .8W-80-77 Right Front Park Lamp . . . . . . . . . . . . . . . .8W-80-77 Right Front Side Marker Lamp . . . . . . . . . .8W-80-78 Right Front Turn Signal Lamp. . . . . . . . . . .8W-80-78 Right Front Wheel Speed Sensor . . . . . . . . .8W-80-78 Right Headlamp . . . . . . . . . . . . . . . . . . . . .8W-80-78 Right Headlamp (Except Built-Up-Export) . .8W-80-78 Right Headlamp Leveling Motor . . . . . . . . .8W-80-78 Right Instrument Panel Speaker . . . . . . . . .8W-80-79 Right License Lamp. . . . . . . . . . . . . . . . . . .8W-80-79 Right Park/Turn Signal Marker . . . . . . . . . .8W-80-79 Right Rear Fog Lamp (Built-Up-Export). . . .8W-80-79 Right Rear Side Marker Lamp

(Built-Up-Export). . . . . . . . . . . . . . . . . . .8W-80-80 Right Rear Turn Signal Lamp . . . . . . . . . . .8W-80-80 Right Rear Wheel Speed Sensor. . . . . . . . . .8W-80-80 Right Side Repeater. . . . . . . . . . . . . . . . . . .8W-80-81 Right Tail/Stop Lamp. . . . . . . . . . . . . . . . . .8W-80-81 Right Visor/Vanity Lamp . . . . . . . . . . . . . . .8W-80-81 Seat Belt Switch . . . . . . . . . . . . . . . . . . . . .8W-80-81 Shift Interlock . . . . . . . . . . . . . . . . . . . . . . .8W-80-81 Solar Sensor . . . . . . . . . . . . . . . . . . . . . . . .8W-80-81 Stop Lamp Switch . . . . . . . . . . . . . . . . . . . .8W-80-82 Sunroof Control Module . . . . . . . . . . . . . . . .8W-80-82 Switch Pod. . . . . . . . . . . . . . . . . . . . . . . . . .8W-80-82 Throttle Position Sensor . . . . . . . . . . . . . . .8W-80-83 Trailer Tow Circuit Breaker . . . . . . . . . . . . .8W-80-83 Trailer Tow Left Turn Relay. . . . . . . . . . . . .8W-80-83 Trailer Tow Right Turn Relay. . . . . . . . . . . .8W-80-83 Trailer Tow Stop Lamp Relay. . . . . . . . . . . .8W-80-84 Transmission Solenoid Assembly . . . . . . . . .8W-80-84 Underhood Lamp . . . . . . . . . . . . . . . . . . . . .8W-80-84 Upper Hose Coolant Switch

(Max Cooling) . . . . . . . . . . . . . . . . . . . . .8W-80-84 Upstream Heated Oxygen Sensor. . . . . . . . .8W-80-84 Vehicle Information Center/

Graphic Display Module. . . . . . . . . . . . . .8W-80-85 Vehicle Speed Control Servo. . . . . . . . . . . . .8W-80-85 Vehicle Speed Sensor (Gas) . . . . . . . . . . . . .8W-80-85 Vehicle Speed Sensor (Diesel). . . . . . . . . . . .8W-80-86 Water In Fuel Sensor (Diesel) . . . . . . . . . . .8W-80-86 Windshield Washer Pump Motor . . . . . . . . .8W-80-86 Windshield Wiper Motor . . . . . . . . . . . . . . .8W-80-86 Wiper Fluid Level Sensor. . . . . . . . . . . . . . .8W-80-86

DESCRIPTION AND OPERATION

INTRODUCTION

This section provides illustrations identifying component and connector locations in the vehicle. A connector index is provided. Use the wiring diagrams in each section for connector number identification. Refer to the index for the proper figure number.

Connector Name/Number

Color Location Fig.

A/C Compressor Clutch

BK Near Compressor

6,9, 12

A/C Heater Control

BK Rear of Switch N/S

A/C High Pressure Switch

BK Near A/C Compressor

6,8, 12

A/C Low Pressure Switch

BK Right Rear Corner of Engine Compartment

2

After Market Trailer Tow Connector

BK Left Rear Quarter Panel

N/S

Airbag Control Module

YL Below Center Floor Console, Near Park Brake

20

Ambient Temperature Sensor

BK On Radiator Center Support

1

Auto Headlamp Light Sensor VTSS LED

BK Top of Instrument Panel, Between Steering Column and Center Floor Console

15

Automatic Day/Night Rearview Mirror

BK Behind Rear View Mirror

19

Automatic Temperature Control Module

BK Left Side of HVAC Housing

N/S

Back-Up Lamp Switch

BK Right Side of Transmission

14

8W-90 CONNECTOR LOCATIONS

CONNECTOR/GROUND LOCATIONS (LHD)

For items that are not shown in this section N/S is placed in the Fig. column.

Connector Name/Number

Color Location Fig.

Battery Temperature Sensor

BK Below Battery Tray

4

Blend Air Door Motor

BK On Bottom of HVAC Unit

N/S

Blend Air Actuator

BK On Bottom of HVAC Unit

N/S

Blower Motor NAT Right Side of HVAC

N/S

Blower Motor Resistor Block

BK Right Side of HVAC

N/S

Blower Motor Switch

BK On HVAC Unit N/S

Blower Power Module

BK On HVAC Unit N/S

Body Control Module C1

BK Lower Left of Instrument Panel

17

Body Control Module C2

WT Lower Left of Instrument Panel

17

Body Control Module C3

BK Lower Left of Instrument Panel

17

Brake Pressure Switch

BK Right Fender Side Shield, Near Brake Master Cylinder

3

Brake Shift Interlock

BK Top of Brake Pedal

N/S

C102 BK Rear of Left Headlamp

1

Connector Name/Number

Color Location Fig.

C131 BK Right Rear Corner of Engine Compartment, Near PCM

2

C132 BK Right Rear Corner of Engine Compartment, Near PCM

2

C144 BK Below PDC 6,13

C150 BK Rear of Right Headlamp

1

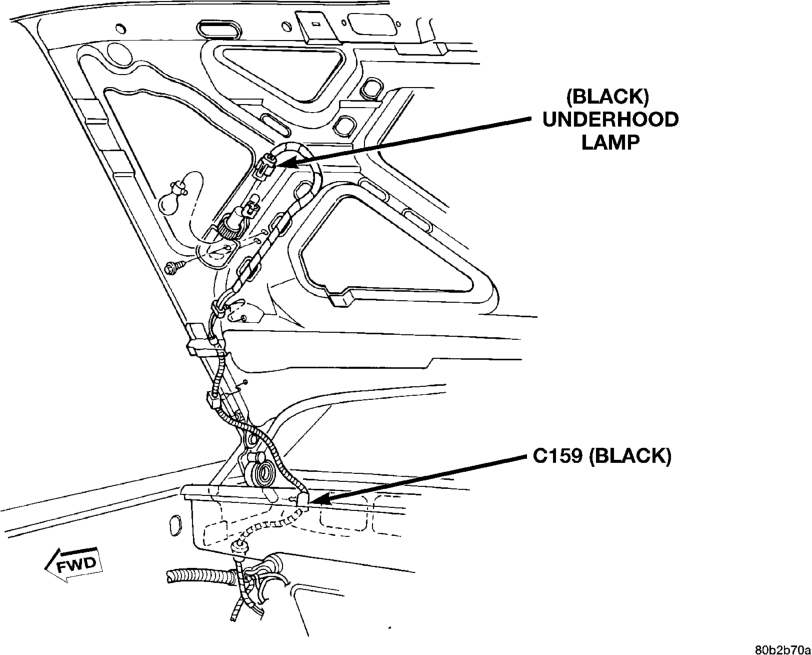

C159 BK Right Rear Corner of Engine Compartment

25

C160 BK Right Corner of Instrument Panel

16

C170 BK Near PDC N/S

C182 BK Under Rear Seat

N/S

C206 BK On Front of HVAC Unit

16

C212 RD Center of Instrument Panel

14

C231 BK Right End of Instrument Panel

N/S

C233 BK Lower Left of Instrument Panel, In Connector Bracket

17

C234 WT Lower Left of Instrument Panel, In Connector Bracket

17

C235 BK Lower Left of Instrument Panel, In Connector Bracket

17

Connector Name/Number

Color Location Fig.

C236 WT Lower Left of Instrument Panel, In Connector Bracket

17

C300 YL Lower Left of Instrument Panel

17

C301 NAT Lower Left of Instrument Panel, In Connector Bracket

17

C302 WT Lower Left of Instrument Panel, In Connector Bracket

17

C304 GY Lower Left of Instrument Panel

N/S

C305 BK Lower Left of Instrument Panel, In Connector Bracket

17

C307 BK Lower Left of Instrument Panel

17

C309 GY In Left Rear Door

23

C320 GY Right Rear Quarter Panel, Near Bottom of Liftgate Opening

20

C321 BK In Liftgate 25

C322 GN In Liftgate 25

C323 GY In Liftgate 25

C324 BK In Liftgate 25

C325 BK In Liftgate 25

C326 GY In Liftgate 25

C328 GY Left Rear Quarter Panel, Near Bottom of Liftgate Opening

21

Connector Name/Number

Color Location Fig.

C329 BK Below Left Rear Passenger Seat

21

C330 GY In Right Rear Door

23

C331 BK Left Rear Quarter Panel

24

C334 BK In Left Front Door

22

C335 BK Below Left Rear Passenger Seat

20

C343 BK In Left Rear Door

23

C345 BK In Right Rear Door

23

C351 GY In Right Front Door

22

C353 BK In Left Front Door

22

C359 BK In Liftgate 25

C364 BK In Liftgate 25

C372 BK Right Rear Quarter Panel

24

C380 BK Left Rear Quarter Panel

N/S

Camshaft Position Sensor

BK Near Distributor 5, 9

Cargo Lamp BK Rear of Cargo Lamp

21

Center High Mounted Stop Lamp Bulb No. 1

BK At Lamp N/S

Center High Mounted Stop Lamp Bulb No. 2

BK At Lamp N/S

Center High Mounted Stop Lamp Bulb No. 3

BK At Lamp N/S

Cigar Lighter BK Rear of Cigar Lighter

15

Clockspring YL Below Steering Column

3

Connector Name/Number

Color Location Fig.

Controller Anti-Lock Brake

BK At Anti-Lock Brake Controller

N/S

Coolant Switch-Upper Hose (5.2L/ 5.9L)

BK Upper Radiator Hose

11

Coolant Switch-Lower Hose (5.2L/ 5.9L)

BK Lower Radiator Hose

11

Cooling Fan BK At Fan 11

Cooling Fan Relay

BK Right Fender Side Shield

11

Crankshaft Position Sensor

BK Right Rear of Engine 4.0L Engine Rear of Engine 5.2L Engine Rear of Engine 2.5L

5,9, 14

Data Link Connector

BK Lower Left of Instrument Panel

15

Daytime Running Lamp Module

BK Right Fender Side Shield, Below PDC

2

Dome/Reading Lamp

NAT Behind Dome Lamp

19

Downstream Heated Oxygen Sensor

BK Above Rear of Catalytic Converter

7,10

Driver Door Module C1

WT In Left Front Door

22

Driver Heated Seat Back

BK Under Driver's Seat

N/S

Driver Heated Seat Cushion

BK Under Driver's Seat

N/S

Driver Lumbar Motor

BK Under Driver's Seat

N/S

Driver Power Seat Front Riser Motor

RD Under Driver's Seat

N/S

Driver Power Seat Front Riser Motor Sensor

BK Under Driver's Seat

N/S

Driver Power Seat Horizontal Motor

BK Under Driver's Seat

N/S

Connector Name/Number

Color Location Fig.

Driver Power Seat Horizontal Motor Sensor

BK Under Driver's Seat

N/S

Driver Power Seat Lumbar Motor Sensor

BK Under Driver's Seat

N/S

Driver Power Seat Lumbar Switch

BK Under Driver's Seat

N/S

Driver Power Seat Rear Riser Motor

RD Under Driver's Seat

N/S

Driver Power Seat Rear Riser Motor Sensor

BK Under Driver's Seat

N/S

Driver Power Seat Recliner Motor

BK Under Driver's Seat

N/S

Driver Power Seat Recliner Motor Sensor

BK Under Driver's Seat

N/S

Driver Power Seat Switch

GN Under Driver's Seat

N/S

Driver Seat Heater Control Module

BK Under Driver's Seat

N/S

Duty Cycle EVAP/Purge Solenoid

BK Front of Left Fender Side Shield

3

Electric Vacuum Modulator

BK Under PDC 13

Engine Coolant Level Sensor

BK Right Rear Corner of Engine Compartment

2

Engine Coolant Temperature Sensor

BK On Thermostat Housing Rear of Generator

5,8, 12

Engine Oil Pressure Sensor

BK Near Distributor (Gas) Left Side of Engine (Diesel)

5,9, 13

Engine Speed Sensor

BK Top of Transmission

14

Engine Starter Motor

BK At Starter Motor 6, 8

Engine Starter Motor Jumper

At Starter Motor 13

Connector Name/Number

Color Location Fig.

Factory Trailer Tow Connector

BK On Trailer Hitch 24

Floor Console Lamps

BK Left Side of Center Floor Console

20

Four-Wheel Drive Switch

BK Left Front of Transfer Case

7, 10,14

Fuel Heater BK At Fuel Heater/Filter

12

Fuel Injector #1 GY At Injector 5,9

Fuel Injector #2 GY At Injector 5,8

Fuel Injector #3 GY At Injector 5,9

Fuel Injector #4 GY At Injector 5,8

Fuel Injector #5 GY At Injector 5,9

Fuel Injector #6 GY At Injector 5,8

Fuel Injector #7 GY At Injector 9

Fuel Injector #8 GY At Injector 8

Fuel Pump (Diesel)

BK At Pump 12

Fuel Pump Module

BK Near Fuel Tank 20, 21

G100 Right Fender Side Shield

2

G101 Right Side of Engine Block 4.0L Engine Below Generator 5.2L Engine Right Front of Engine 2.5L

6,8, 13

G103 Right Side of Engine Block 4.0L Engine Below Generator 5.2L Engine

6, 8

G104 Right Side of Engine Block 4.0L Engine

6

G104 Below Generator 5.2L Engine

8

G104 Below A/C Compressor Diesel Engine

12

Connector Name/Number

Color Location Fig.

G105 Right Rear of Engine 4.0L Engine front of Left cylinder Head 5.2L Engine

5, 9

G106 Right Fender Side Shield

2

G107 Right Fender Side Shield

2

G108 Front of Left Fender Side Shield

3

G109 Front of Left Fender Side Shield

3

G110 Right Fender Side Shield

11

G300 Right Rear Quarter Panel

20

G301 Rear of Passenger's Seat

20

G302 On Floor Pan Rear of Driver's Seat

21

G303 On Floor Pan Rear of Driver's Seat

21

G-Switch BK Below Right Rear Passenger Seat

20

Generator BK At Generator 6,8

Glove Box Lamp

BK At Glove Box Lamp

15

Glow Plug BK Left Side of Engine

12

Glow Plug Relay

BK At PDC (Diesel Engine)

N/S

Graphic Display Module/Vehicle Information Center

BK Rear of Vehivle Information Center (VIC)

15

Headlamp Leveling Switch

BK At Switch 15

Headlamp Switch

BK Rear of Headlamp Switch

15

Connector Name/Number

Color Location Fig.

High Speed Blower Motor Relay

BK Right Side of HVAC

N/S

Horn No. 1 BK At Horn, Lower Right Front of Vehicle

1

Horn No. 2 BK At Horn, Lower Right Front of Vehicle

1

Idle Air Control Motor

BK On Throttle Body

5, 9

Ignition Coil BK Right Front of Engine

5, 8

Ignition Relay BK In PDC N/S

Ignition Switch BK On Steering Column

18

In-Car Temperature Sensor

BK Center, Top of Instrument Panel

14

Instrument Cluster

BK Rear of Instrument Cluster

15

Intake Air Temperature Sensor

GY On Intake Manifold

5, 8

Junction Block - C1

BK Behind Right Kick Panel

16

Junction Block - C2

BK Behind Right Kick Panel

16

Junction Block - C3

BK Behind Right Kick Panel

16

Junction Block - C4

BL* Behind Right Kick Panel

16

Junction Block - C5

YL Behind Right Kick Panel

16

Junction Block - C6

GY Behind Right Kick Panel

16

Junction Block - C7

GN Behind Right Kick Panel

16

Junction Block - C8

BK Behind Right Kick Panel

16

Junction Block - C9

BK Behind Right Kick Panel

16

Junction Block - C10

BK Behind Right Kick Panel

16

Connector Name/Number

Color Location Fig.

Junction Block Body Connector - C13

BK Behind Right Kick Panel

N/S

Junction Block Body Connector - C14

BK Behind Right Kick Panel

N/S

Key-In Switch/Halo Lamp

GY On Steering Column, Near Ignition Switch

17

Lamp Outage Module C1

BK Left Rear Quarter Panel, Near Bottom of Liftgate Opening

21

Lamp Outage Module C2

BK Left Rear Quarter Panel, Near Bottom of Liftgate Opening

21

Left Back-Up Lamp

BK At Lamp N/S

Left Courtesy Lamp

BK At Lamp 15

Left Front Door Courtesy Lamp

BK In Left Front Door

22

Left Front Fog Lamp

BK Left Fog Lamp N/S

Left Front Cylinder Lock Switch

BK In Left Front Door

22

Left Front Power Door Lock Motor

BK In Left Front Door

22

Left Front Door Ajar Switch

BK At Switch 21

Left Front Door Speaker

BK In Left Front Door

22

Left Front Park Lamp

WT At Lamp N/S

Left Front Power Window Motor

BK In Left Front Door

22

Left Front Side Marker Lamp

GY At Lamp N/S

Left Front Turn Signal Lamp

BK At Lamp N/S

Connector Name/Number

Color Location Fig.

Left Front Wheel Speed Sensor

BK Left Rear Corner of Engine Compartment

3

Left Headlamp BK Rear of Headlamp

1

Left Headlamp Leveling Motor

BK At Headlamp 1

Left Instrument Panel Speaker

BK Rear of Left Instrument Panel Speaker

15

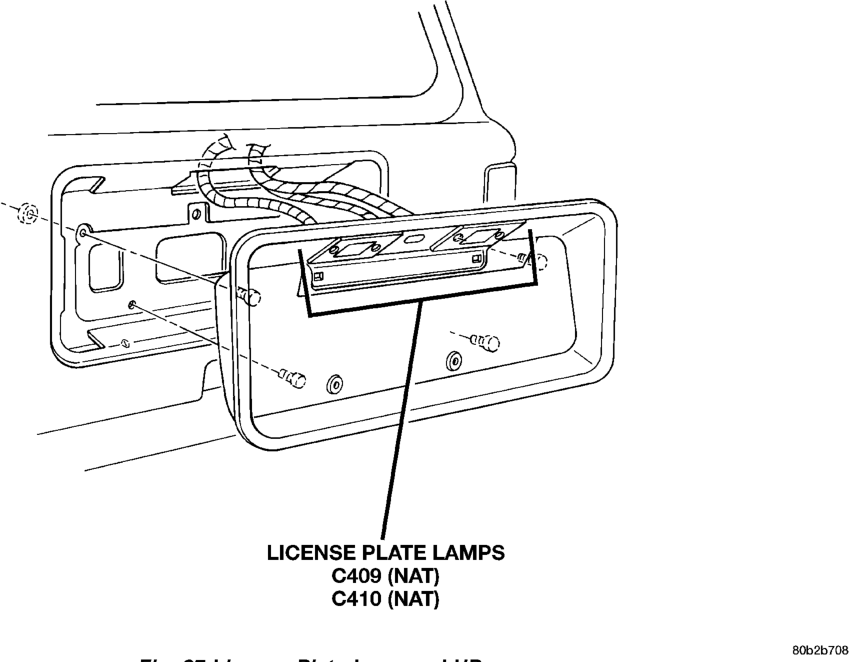

Left License Lamp

NAT In Liftgate Behind License Plate Lamps

27

Left Rear Door Ajar Switch

BK At Switch 21

Left Rear Door Lock Motor

BK In Left Rear Door

23

Left Rear Door Speaker

BK In Left Rear Door

23

Left Rear Power Window Motor

BK In Left Rear Door

23

Left Rear Power Window switch

BL In Left Rear Door

23

Left Rear Side Marker Lamp

NAT At Lamp N/S

Left Rear Turn Signal Lamp

BK At Lamp N/S

Left Rear Wheel Speed Sensor

BK Below Right Rear Passenger Seat

20

Left Side Repeater Lamp

BK At Lamp N/S

Left Tail/Stop Lamp

BK At Lamp N/S

Left Visor/Vanity Mirror

BK Top of Left A-Pillar

19

Liftgate Ajar Switch

BK In Liftgate 25

Liftgate Cylinder Lock Switch

BK In Liftgate 25

Liftgate Lock Motor

BK In Liftgate 25

Liftglass Ajar Switch

BK In Liftgate 25

Liftglass Limit Switch

NAT In Liftgate 25

Connector Name/Number

Color Location Fig.

Liftglass Push Button

BK In Liftgate 25

Liftglass Release Solenoid

BK In Liftgate 25

Low Washer Fluid Level Sensor

BK Below Battery Tray

4

Manifold Absolute Pressure Sensor

BK On Throttle Body

5, 9

Mass Airflow Sensor

BK At Air Cleaner N/S

Memory Seat Module Connector C1

BK At Driver's Seat N/S

Memory Seat Module Connector C2

BK At Driver's Seat N/S

Mini Overhead Console

GY Under Passenger's Seat

N/S

Mode Door Motor

BK Left Side of HVAC

N/S

MSA Controller BK At Controller N/S

Multi-Function Switch

BK On Steering Column

18

Needle Movement Sensor

BK In #1 Injector 12

Output Shaft Speed Sensor

BK Left Side of Transmission

7, 10

Overdrive Switch

BK At Switch 15

Overhead Console

RD Center of Headliner, Above Rear View Mirror

18

Overhead Console Junction Block

BK Behind Right Kick Panel, At Junction Block

15

Park Brake Switch

BK At Park Brake Lever

20

Park/Neutral Position Switch

BK Left Side of Transmission

7, 10

Connector Name/Number

Color Location Fig.

Passenger Airbag

YL Behind Passenger Airbag

14

Passenger Door Module C1

WT In Right Front Door

N/S

Passenger Heated Seat Back

GN Under Passenger's Seat

N/S

Passenger Heated Seat Cushion

BK Under Passenger's Seat

N/S

Passenger Lumbar Motor

BK Under Passenger's Seat

N/S

Passenger Lumbar Switch

WT Under Passenger's Seat

N/S

Passenger Power Seat Front Riser Motor

RD Under Passenger's Seat

N/S

Passenger Power Seat Horizontal Motor

BK Under Passenger's Seat

N/S

Passenger Power Seat Rear Riser Motor

RD Under Passenger's Seat

N/S

Passenger Power Seat Recliner Motor

BK Under Passenger's Front Seat

N/S

Passenger Power Seat Switch

BK Under Passenger's Front Seat

N/S

Passenger Seat Heater Control Module

GY Under Passenger's Seat

N/S

Pedal Position Sensor

BK At Throttle Pedal

N/S

Power Amplifier C1

WT Below Right Rear Passenger Seat

20

Power Amplifier C2

WT Below Right Rear Passenger Seat

20

Power Antenna Motor

BK At Junction Block

N/S

Power Outlet BK Rear of Power Outlet

15

Connector Name/Number

Color Location Fig.

Powertrain Control Module C1

BK Right Rear Corner of Engine Compartment At PCM

2

Powertrain Control Module C2

WT Right Rear Corner of Engine Compartment At PCM

2

Powertrain Control Module C3

GY Right Rear Corner of Engine Compartment At PCM

2

Radio C1 GY Rear of Radio 15

Radio C2 BK Rear of Radio 15

Radio C3 BK Rear of Radio 15

Rear Speaker BK Rear Door 23

Rear Washer Pump Motor

BK lBottom of Windshield Washer Fluid Reservoir

4

Rear Wiper Motor

BK In Liftgate 24

Rear Wiper/ Washer Switch

BK Behind Rear Wiper Switch

15

Recirculation Door Motor

YL Top of HVAC N/S

Right Back-Up Lamp

BK At Lamp N/S

Right Courtesy Lamp

BK Right Courtesy Lamp

15

Right Door Courtesy Lamp

BK In Right Front Door

22

Right Front Door Ajar Switch

WT At Switch 22

Right Front Fog Lamp

BK Rear of Fog Lamp

1

Right Front Cylinder Lock Switch

BK In Right Front Door

22

Right Front Power Door Lock Motor

BK In Right Front Door

22

Right Front Door Speaker

BK In Right Front Door

22

Connector Name/Number

Color Location Fig.

Right Front Park Lamp

WT At Lamp N/S

Right Front Power Window Motor

BK In Right Front Door

22

Right Front Turn Signal Lamp

BK At Lamp N/S

Right Front Wheel Speed Sensor

BK Right Rear Corner of Engine Compartment

2

Right Headlamp BK Right Fog Lamp

1

Right Headlamp Leveling Motor

BK At Headlamp 1

Right Instrument Panel Speaker

BK Top Right of Instrument Panel

15

Right License Lamp

NAT In Liftgate, Behind License Plate Lamps

27

Right Rear Door Ajar Switch

BK At Switch N/S

Right Rear Door Lock Motor

BK In Right Rear Door

23

Right Rear Door Speaker

BK In Right Rear Door

23

Right Rear Fog Lamp

BK At Lamp N/S

Right Rear Power Window Motor

BK In Right Rear Door

23

Right Rear Power Window Switch

BL In Right Rear Door

23

Right Rear Side Marker Lamp

NAT At Lamp N/S

Right Rear Speaker

BK At Speaker N/S

Right Rear Turn Signal Lamp

BK At Lamp N/S

Right Rear Wheel Speed Sensor

RD Below Right Rear Passenger Seat

20

Right Side Repeater Lamp

BK At Lamp N/S

Right Tail/Stop Lamp

BK At Lamp N/S

Connector Name/Number

Color Location Fig.

Right Visor/ Vanity Mirror

BK Top of Right A-Pillar

19

Seat Belt Switch BK Near Bottom of Driver's Seat Belt Clasp

20

Shift Interlock BK Steering Column, On Shift Cable

N/S

Solar Sensor RD Above Glove Box

15

Stop Lamp Switch

GY Top of Brake Pedal Arm

17

Sunroof Control Module

BK Rear of Sunroof N/S

Sunroof Motor BK Rear of Sun Roof

N/S

Sunroof Switch NAT Center of Headliner, Above Rear View Mirror

19

Switch Pod BK Rear of Overdrive Switch

15

Throttle Position Sensor

BK On Throttle Body

5, 9

Trailer Tow Circuit Breaker

BK Right Rear Quarter Panel

24

Trailer Tow Left Turn Relay

BK Right Rear Quarter Panel

24

Trailer Tow Right Turn Relay

BK Right Rear Quarter Panel

24

Connector Name/Number

Color Location Fig.

Trailer Tow Stop Lamp Relay

BK Right Rear Quarter Panel

24

Transmission Solenoid Assembly

BK Left Side of Transmission

7, 10

Underhood Lamp

BK On Underside of Hood

26

Upstream Heated Oxygen Sensor

GY Right Front of Transmission (5.2L/5.9L) Rear of Power Steering Pump (4.0L)

5,10

Vehicle Speed Control Servo

BK Right Fender Side Shield

2

Vehicle Speed Control/Horn Switch

NAT On Steering Column

18

Vehicle Speed Sensor

BK Rear of Transfer Case

7, 10,14

Water in Fuel Separater

BK At Fuel Heater / Filter

12

Windshield Washer Pump Motor

BK Bottom of Windshield Washer Fluid Reservoir

4

Windshield Wiper Motor

BK Center of Cowl 4

CONNECTOR/GROUND LOCATIONS (RHD)

For items that are not shown in this section N/S is placed in the Fig. column.

Connector Name/Number

Color Location Fig.

A/C Heater Control C1

BK Rear of Switch N/S

A/C Heater Control C2

BK Rear of Switch N/S

A/C High Pressure Switch

BK Near A/C Compressor

5

A/C Low Pressure Switch

BK Right Rear Corner of Engine Compartment (4.0L) Near T/O for Left Fog Lamp (Diesel) Not Shown

2

After Market Trailer Tow Connector

BK Left Rear Quarter Panel

N/S

Airbag Control Module

BK Below Center Floor Console, Near Park Brake

15

Ambient Temperature Sensor

BK On Radiator Center Support

1

Ash Receiver Lamp

At Lamp 11

Auto Headlamp Light Sensor/ VTSS LED

BK Top of Instrument Panel, Left Side

11

Automatic Temperature Control Module

BK Left Side of HVAC Housing

12

Battery Temperature Sensor

BK Below Battery Tray

3

Blend Air Door Motor

BK On Bottom of HVAC Unit

N/S

Blend Air Actuator

BK On Bottom of HVAC Unit

N/S

Blower Motor NAT Right Side of HVAC

N/S

Connector Name/Number

Color Location Fig.

Blower Motor Resistor Block

BK Right Side of HVAC

N/S

Blower Motor Switch

BK On HVAC Unit N/S

Blower Power Module

BK On HVAC Unit N/S

Body Control Module C1

BK Lower Right of Instrument Panel

N/S

Body Control Module C2

WT Lower Right of Instrument Panel

N/S

Body Control Module C3

BK Lower Left of Instrument Panel

N/S

Brake Pressure Switch

BK Near Brake Master Cylinder

3

C102 BK Rear of Left HeadLamp

1

C131 BK Right Rear Corner of Engine Compartment, Near PCM

2

C132 BK Right Rear Corner of Engine Compartment, Near PCM

2

C144 BK Near PDC 9

C150 BK Rear of Right HeadLamp

1

C160 BK Left Corner of Instrument Panel

N/S

C170 Front Right of Engine Compartment

N/S

C171 Front Right of Engine Compartment

N/S

C182 Near G-Switch T/O

N/S
