Connector Name/Number
Color Location Fig.
C206 BK On Front of HVAC Unit
N/S
C212 RD Center of Instrument Panel
N/S
C231 BK Right End of Instrument Panel
N/S
C233 BK Lower Left Instrument Panel, In Connector Bracket
12
C234 WT Lower Left Instrument Panel, In Connector Bracket
12
C235 BK Lower Left Instrument Panel, In Connector Bracket
12
C236 WT Lower Left Instrument Panel, In Connector Bracket
12
C300 YL Lower Instrument Panel
11
C301 NAT Lower Instrument Panel, In Connector Bracket
11
C302 WT Lower Instrument Panel, In Connector Bracket
11
C304 GY Near Blower Motor T/O
N/S
C305 BK Lower Instrument Panel, In Connector Bracket
N/S
Connector Name/Number
Color Location Fig.
C307 BK Lower Instrument Panel
11
C309 GY In Left Rear Door
18
C316 BK Left Rear Quarter
16
C320 GY Right Rear Quarter Panel, Near Bottom of Liftgate Opening
15
C321 BK In Liftgate 20
C322 GN In Liftgate 20
C323 GY In Liftgate 20
C324 BK In Liftgate 20
C325 BK In Liftgate 20
C326 GY In Liftgate 20
C328 GY Left Rear Quarter Panel, Near Bottom of Liftgate Opening
16
C329 BK Below Left Rear Seat
15
C330 GY In Right Rear Door
18
C334 BK In Right Front Door
17
C335 BK Under Left Rear Passenger Seat
16
C343 BK In Left Rear Door
18
C345 BK In Right Rear Door
18
C351 GY In Left Front Door
17
C353 BK In Right Front Door
17
C359 BK In Liftgate 20
C362 BK In Liftgate 20
C364 BK In Liftgate 20
C372 BK Left Rear Quarter Panel
19
Camshaft Position Sensor
BK Near Distributor 5, 9
Connector Name/Number
Color Location Fig.
Cargo Lamp BK Rear of Cargo Lamp
16
Center High Mounted Stop Lamp Bulb No. 1
BK At Lamp N/S
Center High Mounted Stop Lamp Bulb No. 2
BK At Lamp N/S
Center High Mounted Stop Lamp Bulb No. 3
BK At Lamp N/S
Cigar Lighter BK Rear of Cigar Lighter
11
Cigar Lighter Lamp
At Lamp 11
Clockspring C1 At Clockspring Column Side
N/S
Clockspring C2 At Clockspring Column Side
N/S
Clutch Interlock Switch
Left Side of Steering Column
11
Controller Anti-Lock Brake C1
BK At Anti-Lock Brake Controller
N/S
Crankshaft Position Sensor
BK Right Rear of Engine 4.0L Engine Rear of Engine 5.2L Engine
5, 9
Data Link Connector
BK Lower Right Instrument Panel
N/S
Daytime Running Lamp Module
BK Right Fender Side Shield, Below PDC
N/S
Dome/Reading Lamp
NAT Behind Dome Lamp
14
Downstream Heated Oxygen Sensor
BK Above Rear of Catalytic Converter
7, 10
Driver Door Module C1
WT In Right Front Door
17
Driver Door Module C2
BK In Driver's Door N/S
Connector Name/Number
Color Location Fig.
Driver Door Module C3
BK In Driver's Door N/S
Driver Heated Seat Back
BK Under Driver's Seat
N/S
Driver Heated Seat Cushion
BK Under Driver's Seat
N/S
Driver Lumbar Motor
BK Under Driver's Seat
N/S
Driver Power Seat Front Riser Motor
RD Under Driver's Seat
N/S
Driver Power Seat Front Riser Motor Sensor
BK Under Driver's Seat
N/S
Driver Power Seat Horizontal Motor
BK Under Driver's Seat
N/S
Driver Power Seat Horizontal Motor Sensor
BK Under Driver's Seat
N/S
Driver Lumbar Sensor/Motor
BK Under Driver's Seat
N/S
Driver Power Seat Lumbar Switch
BK Under Driver's Seat
N/S
Driver Power Seat Rear Riser Motor
RD Under Driver's Seat
N/S
Driver Power Seat Rear Riser Motor Sensor
BK Under Driver's Seat
N/S
Driver Power Seat Recliner Motor
BK Under Driver's Seat
N/S
Driver Power Seat Recliner Motor Sensor
BK Under Driver's Seat
N/S
Driver Power Seat Switch
GN Under Driver's Seat
N/S
Driver Seat Heater Control Module
BK Under Driver's Seat
N/S
Driver Side Airbag
YL Lower Instrument Panel
N/S
Duty Cycle EVAP/Purge Solenoid
BK Front of Left Fender Side Shield
4
Connector Name/Number
Color Location Fig.
Engine Coolant Level Sensor
BK Top of Reserve Tank
3
Engine Coolant Temperature Sensor
BK On Thermostat Housing Rear of Generator
5, 8
Engine Starter Motor
BK At Starter Motor 6,8
Factory Trailer Tow Connector
BK On Trailer Hitch 22
Floor Console Lamps
BK Left Side of Center Floor Console
15
Four-Wheel Drive Switch
BK Left Front of Transfer Case
7, 10
Fuel Heater BK At Fuel Heater/Filter
8
Fuel Injector #1 GY At Injector 5
Fuel Injector #2 GY At Injector 5
Fuel Injector #3 GY At Injector 5
Fuel Injector #4 GY At Injector 5
Fuel Injector #5 GY At Injector 5
Fuel Injector #6 GY At Injector 5
Fuel Pump Module
BK Near Fuel Tank 15, 16
G100 Right Fender Side Shield
2
G101 Right Side of Engine Block 4.0L Engine
6
G104 Right Side of Engine Block 4.0L Engine
N/S
G104 Below A/C Compressor Diesel Engine
8
G105 Right Rear of Engine 4.0L Engine
5, 9
G106 Right Fender Side Shield
2,3
G107 Right Fender Side Shield
2,3
G108 Front of Left Fender Side Shield
4
Connector Name/Number
Color Location Fig.
G109 Front of Left Fender Side Shield
4
G110 Near Headlamp Leveling Motor
N/S
G300 Right Rear Quarter Panel
15
G301 Rear of Driver's Seat
15
G302 On Floor Pan Rear of Seat
16
G303 On Floor Pan Rear of Seat
16
G-Switch BK Below Right Rear Seat
15
Generator BK At Generator 6
Glove Box Lamp
BK At Glove Box Lamp
12
Glow Plug Relay
BK At PDC (Diesel Engine)
N/S
Graphic Display Module/Vehicle Information Center
BK Rear of Vehicle Information Center (VIC)
12
Headlamp Leveling Switch
BK At Switch 12
Headlamp Switch
BK Rear of Headlamp Switch
11
High Speed Blower Motor Relay
BK Right Side of HVAC
N/S
Horn No. 1 BK At Horn, Lower Right Front of Vehicle
1
Horn No. 2 BK At Horn, Lower Right Front of Vehicle
1
Idle Air Control Motor
BK On Throttle Body
5
Ignition Coil BK Right Front of Engine
5
Ignition Switch BK On Steering Column
13
In-Car Temperature Sensor
BK Center, Top of Instrument Panel
15
Connector Name/Number
Color Location Fig.
Instrument Cluster
BK Rear of Instrument Cluster
11
Intake Air Temperature Sensor
GY On Intake Manifold
5
Junction Block - C1
RD Behind Left Kick Panel
N/S
Junction Block - C2
BK Behind Left Kick Panel
N/S
Junction Block - C3
BL Behind Left Kick Panel
N/S
Junction Block - C4
TN Behind Left Kick Panel
N/S
Junction Block - C5
RD Behind Left Kick Panel
N/S
Junction Block - C6
BK Behind Left Kick Panel
N/S
Junction Block - C7
BL Behind Left Kick Panel
N/S
Junction Block - C8
YL Behind Left Kick Panel
N/S
Junction Block - C9
BK Behind Left Kick Panel
N/S
Junction Block - C10
LT GN Behind Left Kick Panel
N/S
Junction Block Body Connector - C13
TN Behind Left Kick Panel
N/S
Junction Block Body Connector - C14
BK Behind Left Kick Panel
N/S
Key-In Switch/Halo Lamp
GY On Steering Column, Near Ignition Switch
13
Lamp Outage Module C1
BK Left Rear Quarter Panel, Near Bottom of Liftgate Opening
16
Lamp Outage Module C2
BK Left Rear Quarter Panel, Near Bottom of Liftgate Opening
16
Left Back-Up Lamp
BK At Lamp N/S
Connector Name/Number
Color Location Fig.
Left Courtesy Lamp
BK At Lamp 11
Left Door Courtesy Lamp
BK In Left Front Door
17
Left Fog Lamp BK Left Fog Lamp N/S
Left Front Cylinder Lock Switch
BK In Left Front Door
17
Left Front Door Ajar Switch
At Left B-Pillar 16
Left Front Door Lock Motor
BK In Left Front Door
17
Left Front Door Speaker
BK In Left Front Door
17
Left Front Park Lamp
WT At Lamp N/S
Left Front Power Window Motor
BK In Left Front Door
17
Left Front Side Marker Lamp
GY At Lamp N/S
Left Front Turn Signal Lamp
BK At Lamp N/S
Left Front Wheel Speed Sensor
BK Left Rear Corner of Engine Compartment
N/S
Left Headlamp BK Rear of Headlamp
1
Left Headlamp Leveling Motor
BK At Headlamp 1
Left Instrument Panel Speaker
BK Rear of Left Instrument Panel Speaker
11

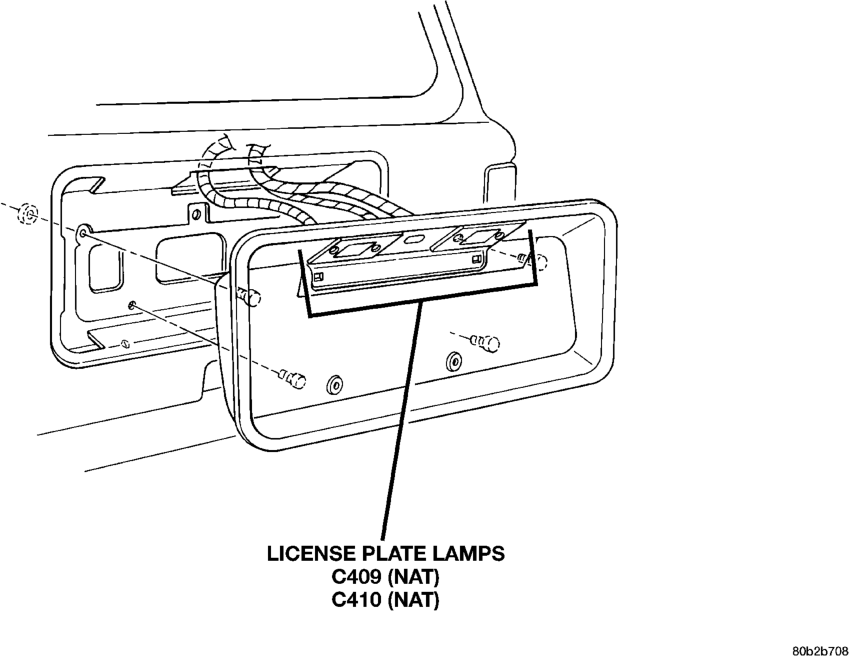

Left License Lamp
NAT In Liftgate Behind License Plate Lamps
22
Left Rear Door Ajar Switch
Rear of Left Door
16
Left Rear Door Lock Motor
BK In Left Rear Door
18
Left Rear Door Speaker
BK In Left Rear Door
18
Left Rear Power Window Motor
BK In Left Rear Door
18
Left Rear Power Window switch
BL In Left Rear Door
18
Connector Name/Number
Color Location Fig.
Left Rear Side Marker Lamp
NAT At Lamp N/S
Left Rear Turn Signal Lamp
BK At Lamp N/S
Left Rear Wheel Speed Sensor
BK Below Left Rear Passenger Seat
15
Left Side Repeater Lamp
BK At Lamp N/S
Left Tail/Stop Lamp
BK At Lamp N/S
Left Visor/Vanity Mirror
BK Top of Left A-Pillar
14
Liftgate Ajar Switch
BK In Liftgate 20
Liftgate Cylinder Lock Switch
BK In Liftgate 20
Liftgate Lock Motor
BK In Liftgate 20
Liftglass Ajar Switch
BK In Liftgate 20
Liftglass Limit Switch
NAT In Liftgate 20
Liftglass Push Button
BK In Liftgate 20
Liftglass Release Solenoid
BK In Liftgate 20
Low Washer Fluid Level Sensor
BK At Washer Reservoir
4
Manifold Absolute Pressure Sensor
BK On Throttle Body
5
Memory Seat Module Connector C1
BK At Driver's Seat N/S
Memory Seat Module Connector C2
BK At Driver's Seat N/S
Mini Overhead Console
GY Under Front Seat
N/S
Mode Door Motor
BK Left Side of HVAC
N/S
Multi-Function Switch
BK On Steering Column
13
Connector Name/Number
Color Location Fig.
Oil Pressure Sensor
BK Near Distributor 5, 9
Output Shaft Speed Sensor
BK Left Side of Transmission
7, 10
Overhead Console
RD Center of Headliner, Above Rear View Mirror
14
Overhead Console Junction Block
BK Behind Kick Panel, At Junction Block
N/S
Park Brake Switch
At Park Brake 15
Park/Neutral Position Switch
BK Left Side of Transmission
7, 10
Passenger Airbag
YL Behind Passenger Airbag
11
Passenger Door Module
WT In Left Front Door
17
Passenger Heated Seat Back
GN Under Passenger's Seat
N/S
Passenger Heated Seat Cushion
BK Under Passenger's Seat
N/S
Passenger Lumbar Motor
BK Under Passenger's Seat
N/S
Passenger Lumbar Switch
WT Under Passenger's Seat
N/S
Passenger Power Seat Front Riser Motor
RD Under Passenger's Seat
N/S
Passenger Power Seat Horizontal Motor
BK Under Passenger's Seat
N/S
Passenger Power Seat Rear Riser Motor
RD Under Passenger's Seat
N/S
Passenger Power Seat Recliner Motor
BK Under Passenger's Front Seat
N/S
Passenger Power Seat Switch
BK Under Passenger's Front Seat
N/S
Connector Name/Number
Color Location Fig.
Passenger Seat Heater Control Module
GY Under Passenger's Seat
N/S
Pedal Position Sensor
Lower Right of Instrument Panel
N/S
Power Amplifier C1
WT Below Right Rear Passenger Seat
15
Power Amplifier C2
WT Below Right Rear Passenger Seat
15
Power Antenna Motor
BK At Antenna N/S
Power Distribution Center
Right of Engine Compartment
2
Power Outlet BK Rear of Power Outlet
11
Powertrain Control Module C1
BK Right Rear Corner of Engine Compartment At PCM
3
Powertrain Control Module C2
WT Right Rear Corner of Engine Compartment At PCM
3
Powertrain Control Module C3
GY Right Rear Corner of Engine Compartment At PCM
3
Radio C1 GY Rear of Radio 11
Radio C2 BK Rear of Radio 11
Rear Washer Pump Motor
BK Bottom of Windshield Washer Fluid Reservoir
4
Rear Wiper Motor
BK In Liftgate 20
Rear Wiper/ Washer Switch
BK Behind Rear Wiper Switch
11
Recirculation Door Motor
YL Top of HVAC N/S
Right Back-Up Lamp
BK At Lamp N/S
Connector Name/Number
Color Location Fig.
Right Courtesy Lamp
BK Right Courtesy Lamp
12
Right Door Courtesy Lamp
BK In Right Front Door
17
Right Fog Lamp BK Rear of Fog Lamp
1
Right Front Cylinder Lock Switch
BK In Right Front Door
N/S
Right Front Door Ajar Switch
At Right B-Pillar N/S
Right Front Door Lock Motor
BK In Right Front Door
17
Right Front Door Speaker
BK In Right Front Door
17
Right Front Park Lamp
WT At Lamp N/S
Right Front Power Window Motor
BK In Right Front Door
17
Right Front Side Marker Lamp
GY At Lamp N/S
Right Front Turn Signal Lamp
BK At Lamp N/S
Right Front Wheel Speed Sensor
BK Right Rear Corner of Engine Compartment
2
Right Headlamp BK Rear od HeadLamp
1
Right Headlamp Leveling Motor
BK At Headlamp 1,2
Right Instrument Panel Speaker
BK Top Right of Instrument Panel
11
Right License Lamp
NAT In Liftgate, Behind License Plate Lamps
22
Right Rear Door Ajar Switch
Rear of Door N/S
Right Rear Door Lock Motor
BK In Right Rear Door
18
Right Rear Door Speaker
BK In Right Rear Door
18
Connector Name/Number
Color Location Fig.
Right Rear Power Window Motor
BK In Right Rear Door
18
Right Rear Power Window Switch
BL In Right Rear Door
18
Right Rear Side Marker Lamp
NAT At Lamp N/S
Right Rear Turn Signal Lamp
BK At Lamp N/S
Right Rear Wheel Speed Sensor
RD Below Right Rear Passenger Seat
15
Right Side Repeater Lamp
BK At Lamp N/S
Right Tail/Stop Lamp
BK At Lamp N/S
Right Visor/ Vanity Mirror
BK Top of Right A-Pillar
14
Seat Belt Switch BK Near Bottom of Driver's Seat Belt Clasp
N/S
Shift Interlock BK Steering Column, On Shift Cable
12
Solar Sensor RD Above Glove Box
11
Stop Lamp Switch
GY Top of Brake Pedal Arm
12
Sunroof Control Module
BK Rear of Sunroof N/S
Sunroof Motor BK Rear of Sun Roof
N/S
Sunroof Switch NAT Center of Headliner, Above Rear View Mirror
14
Switch Pod BK Rear of Overdrive Switch
12
Connector Name/Number
Color Location Fig.
Throttle Position Sensor
BK On Throttle Body
5
Trailer Tow Circuit Breaker
BK Right Rear Quarter Panel
19
Trailer Tow Left Turn Relay
BK Right Rear Quarter Panel
19
Trailer Tow Right Turn Relay
BK Right Rear Quarter Panel
19
Trailer Tow Stop Lamp Relay
BK Right Rear Quarter Panel
19
Transmission Solenoid Assembly
BK Left Side of Transmission
7, 10

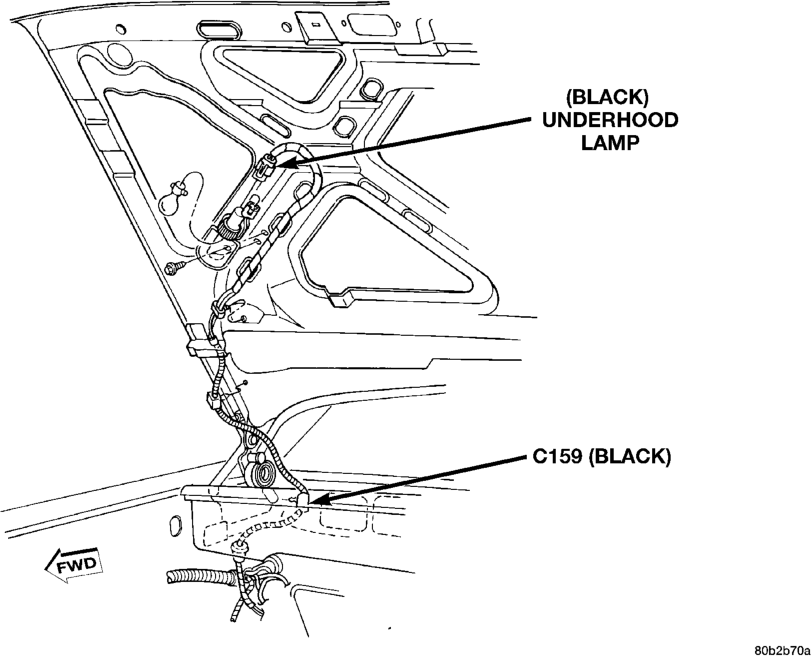

Underhood Lamp
BK On Underside of Hood
21
Upstream Heated Oxygen Sensor
GY Right Front of Transmission
5
Vehicle Speed Control Servo
BK At Servo N/S
Vehicle Speed Control/Horn Switch
NAT On Steering Column
13
Vehicle Speed Sensor
BK Rear of Transfer Case
7, 10
Windshield Washer Fluid Level Sensor
Top of Reservoir
4
Windshield Washer Pump Motor
BK Bottom of Windshield Washer Fluid Reservoir
4
Windshield Wiper Motor
BK Center of Cowl 4
DESCRIPTION AND OPERATION
INTRODUCTION
This section provides illustrations identifying the general location of the splices in this vehicle. A splice index is provided. Use the wiring diagrams in each section for splice number identification. Refer to the index for proper splice number.
Splice Number
Location Fig.
S100 In Injector Harness T/O 1
S101 Near Engine Harness T/O 1
S102 Near Battery Temperature Sensor T/O
1
S103 Near Battery Temperature Sensor T/O (4.0L) Near Body Ground (Diesel)
1
S104 Right Front Corner of Engine Compartment
1
S105 Right Front Corner of Engine Compartment
1
S106 Right Front Corner of Engine Compartment
1
S107 Left Front Corner of Engine Compartment
1
S108 Left Front Corner of Engine Compartment
1
S109 Left Front Corner of Engine Compartment
1
S110 Left Side of Engine Compartment 1
S111 Left Side of Engine Compartment 1
S112 Left Side of Engine Compartment 1
S113 Left Side of Engine Compartment 1
S114 Left Side of Engine Compartment 1
S115 Left Rear of Engine Compartment 1
S116 Near Branch to Brake Warning Switch
1
S117 In Branch to Brake Warning Switch
1
S118 In Branch to Brake Warning Switch
1
S119 Left Rear of Engine Compartment 1
S120 Left Rear of Engine Compartment 1
8W-95 SPLICE LOCATIONS
SPLICE LOCATIONS (LHD0
For splices that are not shown in the figures in this section a N/S is placed in the Fig. column.
Splice Number
Location Fig.
S121 Left Rear of Engine Compartment 1
S122 Near PDC T/O 1
S123 Near Vehicle Speed Control Servo T/O
1
S124 Near PDC T/O 1

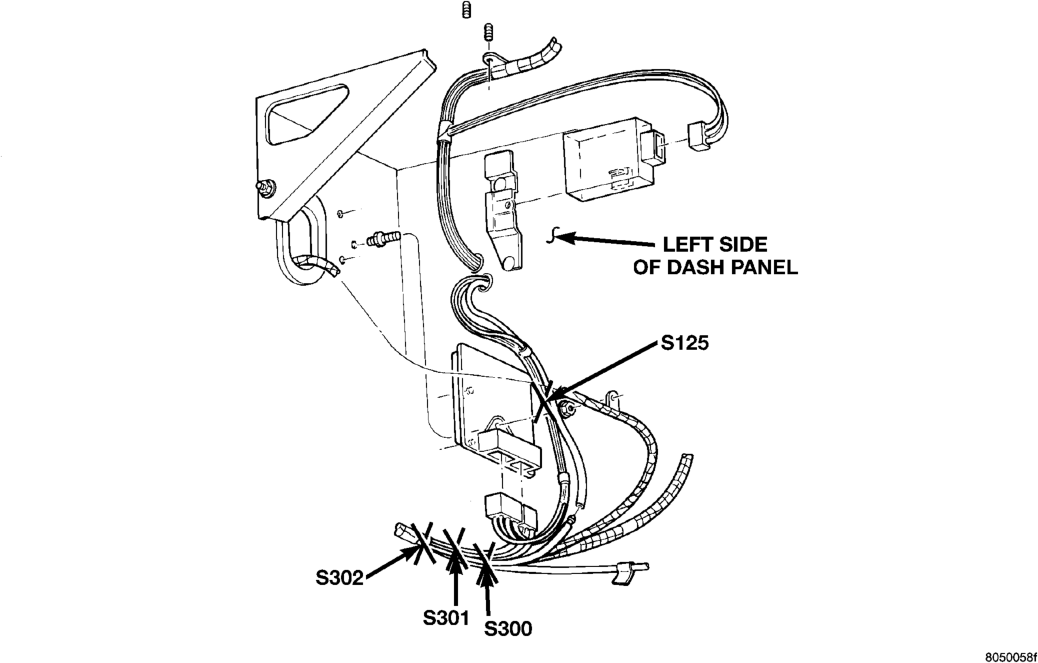

S125 Near Controller, Antilock Brakes 1
S126 Near A/C High Pressure Switch T/O (4.0L Engine)
1
S126 In Branch to Starter Motor (5.2L Engine)
3
S127 Near Injector No. 3 T/O (4.0L Engine)
2
S128 Near Injector No. 5 T/O (4.0L Engine)
2
S128 Near T/Os for Injectors 6 and 8 (5.2L Engine)
3
S128 Near Coolant Level Sensor 4
S129 Rear of Engine (4.0L Engine) 2
S129 Near Injector No. 3 T/O (5.2L Engine)
3
S130 Rear of Engine (4.0L Engine) 2
S130 Near Camshaft Position Sensor T/O (5.2L Engine)
3
S130 Near Crankshaft Position Sensor (Diesel)
4
S131 Near PCM T/O 2
S131 Right Rear of Engine (5.2L Engine)
3
S132 Near Transmission T/O (4.0L Engine)
2
S132 Rear of Engine (5.2L Engine) 3
Splice Number
Location Fig.
S133 In T/O to Oil Pressure Sensor and Crankshaft Position Sensor (4.0L Engine)
2
S133 Near Injector No. 5 T/O (5.2L Engine)
3
S134 Near Branch to Powertrain Control Module (4.0L Engine)
2
S134 Rear of Engine (5.2L Engine) 3
S135 Near Engine Ground T/O (4.0L Engine)
2
S135 Right Rear of Engine (5.2L Engine)
3
S136 Near Injector No. 7 T/O (5.2L Engine)
3
S137 In Generator T/O N/S
S150 Near G110 T/O N/S
S151 In High Speed Cooling Fan T/O N/S
S152 Near Datalink Connector T/O N/S
S153 Near High Pressure Cut-Out Switch T/O (5.2L/5.9L) Near G110 T/O (4.0L)
N/S
S154 Near Datalink Connector T/O (5.2L/5.9L) Near G110 T/O (4.0L)
N/S
S170 In PDC T/O N/S
S171 Near Crankshaft Position Sensor T/O
4
S173 Near Body Ground T/O 1
S174 Near PDC T/O 1
S175 Near PDC T/O 1
S176 Near PDC T/O 1
S177 Near PDC T/O 1
S178 Left Side of Engine Compartment 1
S179 Left Side of Engine Compartment 1
S180 Left Rear of Engine Compartment 1
S181 Near ABS Controller T/O N/S
S182 Near ABS Controller T/O 1
S190 Near Engine Ground T/O 2
S200 In Body Harness T/O 4
S201 Near Rear Wiper/washer Switch T/O
4
S202 Near Stop Lamp Switch T/O 4
S203 Near Stop Lamp Switch T/O 4
S204 Near Branch to Instrument Cluster 4
Splice Number
Location Fig.
S205 Near Branch to Instrument Cluster 4
S206 Near BCM T/O 4
S207 Near Shift Interlock T/O 4
S208 Near Branch to Shift Interlock T/O 4
S209 Near Body Harness T/O 4
S210 Near Shift Interlock T/O 4
S211 Near Branch to Graphic Display Module/Vehicle Information Center
4
S212 Near Cigar Lighter/Power Outlet T/O
4
S214 Near Passenger Airbag T/O 4
S215 Near Shift Interlock T/O 4
S216 Near Cigar Lighter/Power Outlet T/O
4
S218 Near Passenger Airbag T/O 4
S219 Near Branch to Graphic Display Module/Vehicle Information Center
4
S220 Near Passenger Airbag T/O 4

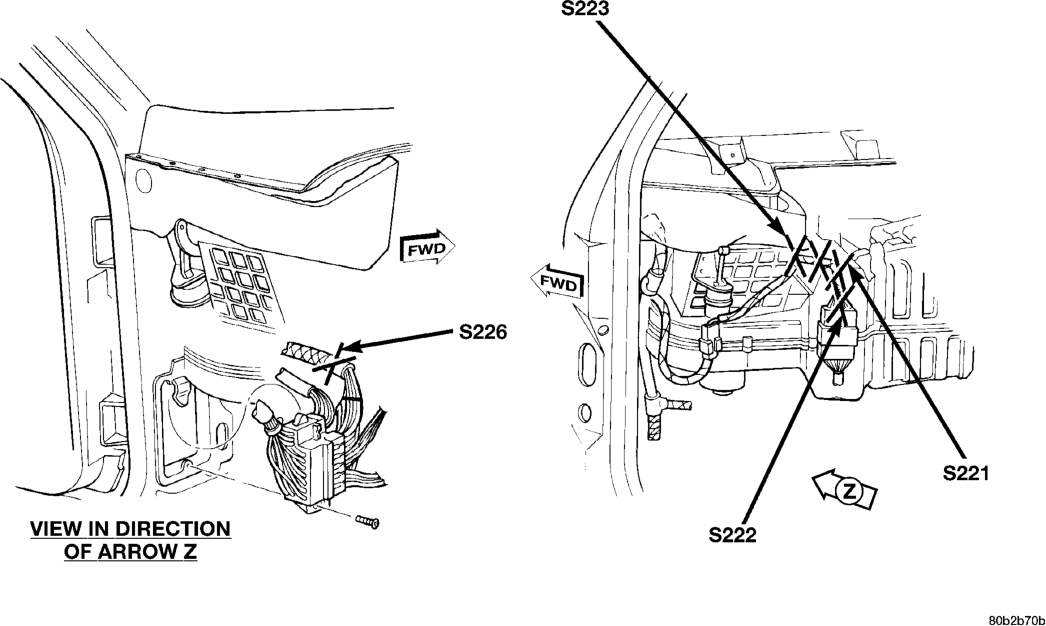

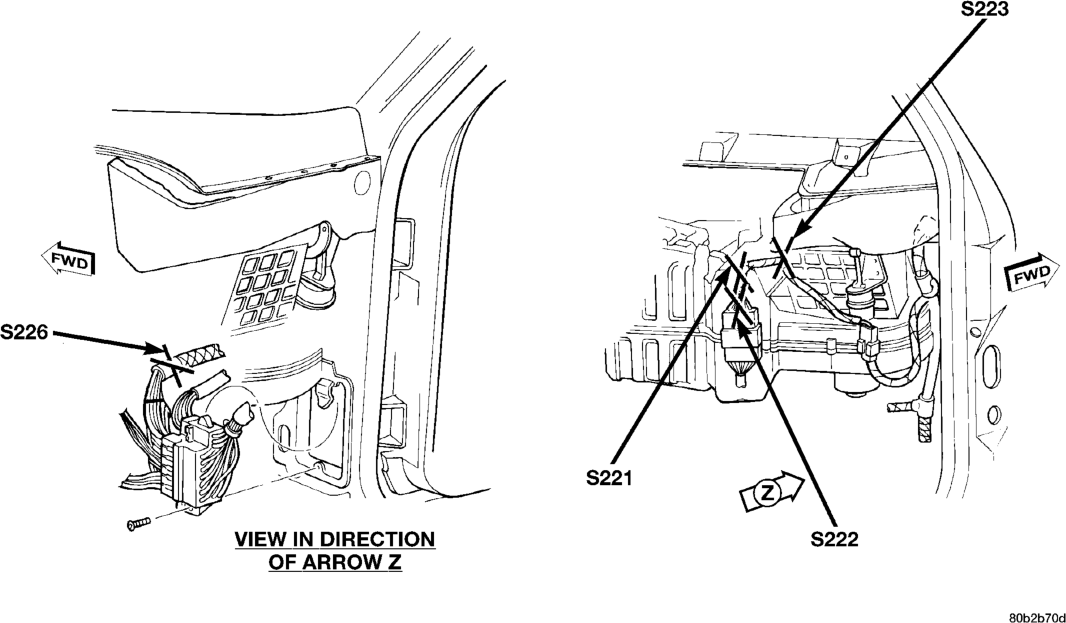

S221 On HVAC Harness 6
S222 On HVAC Harness 6
S223 On HVAC Harness 6
S226 On HVAC Harness 6

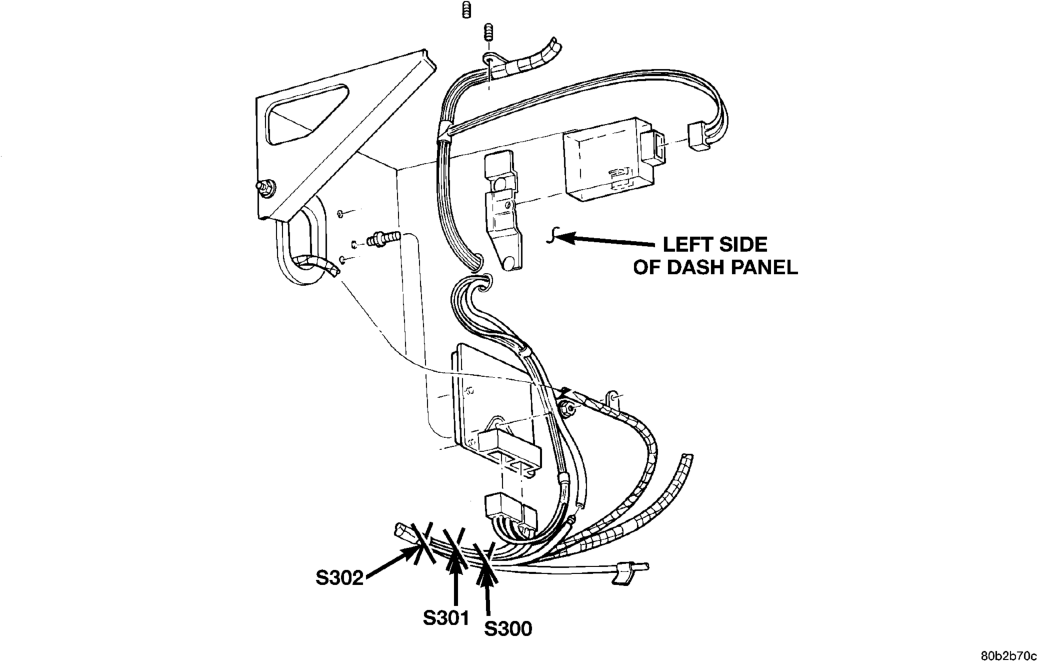

S300 Near Left Kick Panel 5
S301 Near Left Kick Panel 5
S302 Near Left Kick Panel 5
S303 Near T/O to Floor Console 7
S304 Near Amplifier T/O 7
S305 Near Branch to Left Rear Door 7
S306 Near T/O to Left Rear Door 7
S307 Near T/O to Left Rear Door 7
S308 Near T/O to Power Amplifier 7
S309 In T/O to Power Amplifier 7
S310 Near T/O to Power Amplifier 7
S311 Left Rear Quarter Panel 7
S312 Left Rear Quarter Panel 7
S313 Left Rear Quarter Panel 7
S314 Near Trailer Harness T/O 7
S315 Top of Left Rear Quarter Panel 7
S316 Near Right Side T/O for Liftgate 8
S317 In T/O to Power Amplifier 7
S318 In Branch to Power Amplifier 7
S319 Near Branch to Right Rear Door Ajar Switch
8
Splice Number
Location Fig.

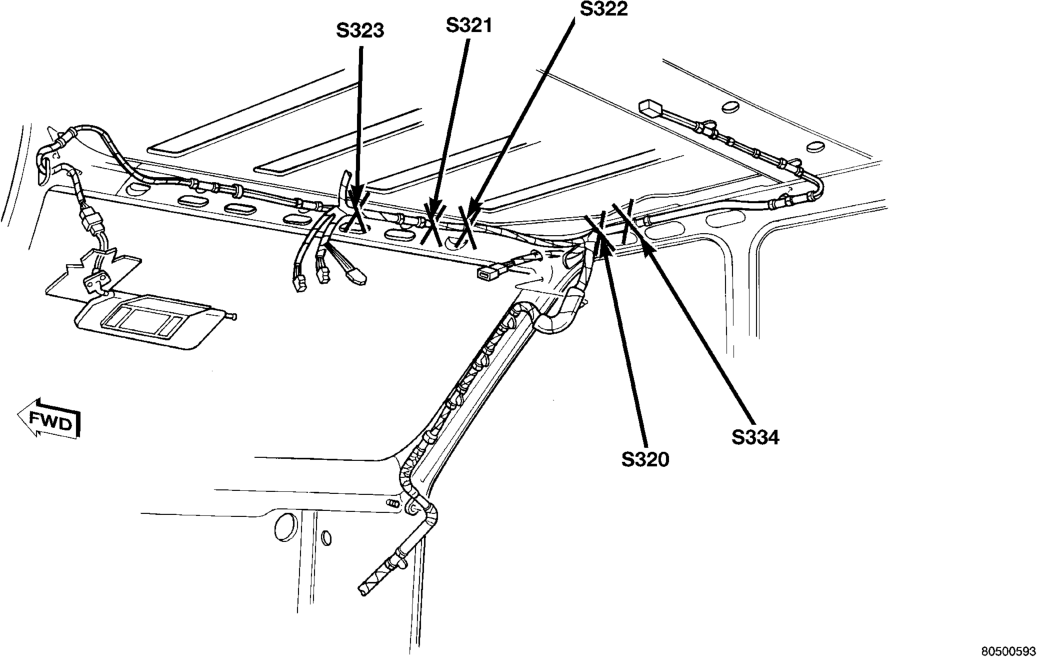

S320 In Branch to Dome/Reading Lamp 10
S321 Between Day/Night Mirror T/O and Right Vanity Mirror T/O
9
S322 Between Day/Night Mirror T/O and Right Vanity Mirror T/O
9
S323 Near Day/Night Mirror T/O 9

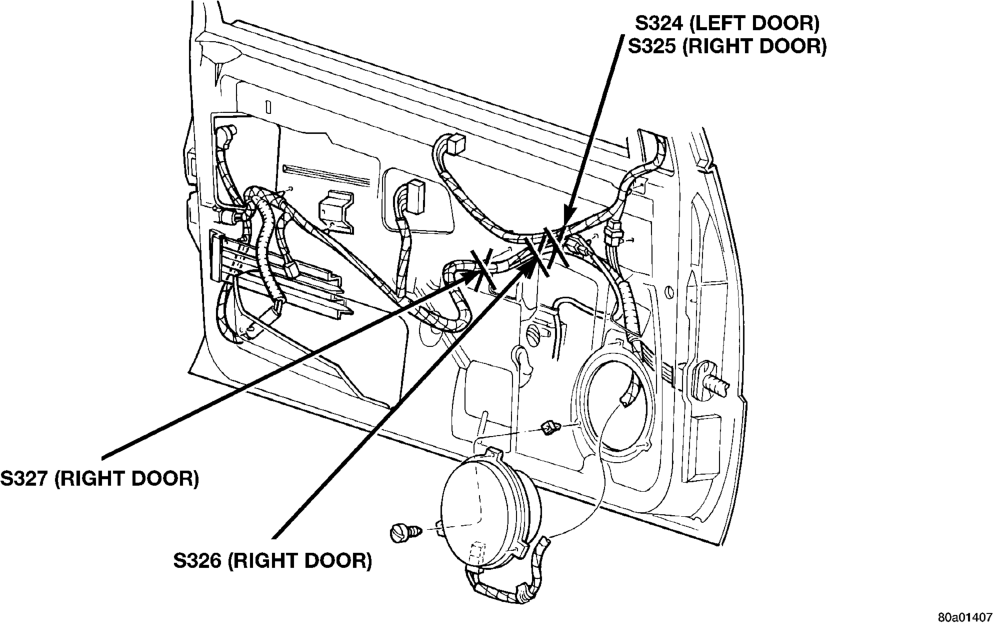

S324 In Left Front Door, Between Power Window Motor T/O and Power Mirror T/O
10
S325 In Right Front Door, Near Power Window Motor T/O
10
S326 In Right Front Door, Near Power Window Motor T/O
10
S327 In Right Front Door, Near Power Window Motor T/O
10
S328 In Liftgate, Near Rear Window Defogger T/O
11
S329 In Liftgate, Near Rear Wiper Motor T/O
11
S330 In Factory Trailer Tow Harness, Near Body Harness Connector
7
S331 In Aftermarket Trailer Tow Harness, Near Trailer Receptacle Harness Connector
N/S
S332 In Liftgate, Near Left Body Connectors
11
S333 Near T/O to Right Power Seat 8
S334 In Branch to Dome Reading Lamp 9
S335 In Branch to Power Amplifier 7
S336 In Liftgate, Between Rear Wiper Motor T/O and Liftgate Lock Motor T/O
11
S400 In Left Power Seat Harness, Near Lumbar Motor T/O
N/S
S401 In Left Power Seat Harness, Near Riser Motor Sensor T/O
N/S
S402 In Left Power Seat Harness, Between Riser Motor Sensor T/O and Heated Seat Module T/O
N/S
Splice Number
Location Fig.
S403 In Left Power Seat Harness, Near Seat Switch T/O
N/S
S404 In Right Power Seat Harness, Near Seat Motor T/Os
N/S
S405 In Right Power Seat Harness, Near Seat Motor T/Os
N/S
S406 In Right Power Seat Harness, In Branch to Seat Switch
N/S
S407 In Left Power Seat Harness, Near Lumbar Motor T/O
N/S
S408 Near Left Front Turn Signal Bulb Socket
N/S
S409 Near Left Front Turn Signal Bulb Socket
N/S
S410 Near Left Front Park Lamp Bulb Socket
N/S
S411 In Left Tail Lamp Harness, Between Body Connector and Grommet
N/S
S412 In Left Tail Lamp Harness, Between Body Connector and Grommet
N/S
S413 Near Right Front Turn Signal Bulb Socket
N/S
S414 Near Left Front Turn Signal Bulb Socket
N/S
S415 Near Right Front Park Lamp Bulb Socket
N/S
S416 In Left Tail Lamp Harness, Between Body Connector and Grommet
N/S
S417 In Right Tail Lamp Harness, Between Body Connector and Grommet
N/S
S418 In License Plate Lamp Harness 11
S419 In License Plate Lamp Harness 11
SPLICE LOCATIONS (RHD)
For splices that are not shown in the figures in this section an N/S is placed in the Fig. column.
Splice Number
Location Fig.
S100 Near Power Distribution Center 1
S101 Near Engine Harness T/O 1
S102 Near Battery Temperature Sensor T/O
1
S103 Near Battery Temperature Sensor T/O (4.0L) Near Body Ground (Diesel)
1
S104 Right Front Corner of Engine Compartment
1
S105 Right Front Corner of Engine Compartment
1
S106 Right Front Corner of Engine Compartment
1
S107 Left Front Corner of Engine Compartment
1
S108 Left Front Corner of Engine Compartment
1
S109 Near A/C Low Pressure T/O 1
S110 Near ABS Controller T/O 1
S111 Near ABS Controller T/O 1
S112 Near ABS Controller T/O 1
S113 Near ABS Controller T/O 1
S114 Near ABS Controller T/O 1
S115 Near ABS Controller T/O 1
S119 Near Low Washer Fluid Level Sensor T/O
1
S120 Near T/O to Low Washer Fluid Level Sensor
1
S121 Near T/O to Low Washer Fluid Level Sensor
1
S122 Near Vehicle Speed Control Servo T/O (4.0L) Near Washer Reservoir (Diesel)
1
S124 Near Washer Reservoir 1
S125 Near Controller, Antilock Brakes 5
S126 Near PDC T/O 3
S127 Near Injector No. 3 T/O (4.0L Engine)
2
S128 Near T/Os for A/C Compressor 4
S129 Rear of Engine (4.0L Engine) 2
Splice Number
Location Fig.
S129 Rear of Engine (Diesel Engine) 4
S130 Rear of Engine (4.0L Engine) 2
S130 Near Crankshaft Position Sensor T/O (Diesel Engine)
3
S131 In Branch to PCM(4.0L Engine) 2
S132 Near Branch to Transmission (4.0L Engine)
2
S133 In Branch to Oil Pressure Sensor and Crankshaft Position Sensor (4.0L Engine)
2
S134 Near Branch to Powertrain Control Module (4.0L Engine)
2
S134 Near Crankshaft Position Sensor T/O (Diesel Engine)
3
S135 Near Branch to PCM (4.0L Engine)
2
S136 Near Crankshaft Position Sensor T/O (Diesel Engine)
3
S137 Near PDC N/S
S138 Near Crankshaft Position Sensor T/O (Diesel Engine)
3
S140 Rear of Engine (Diesel Engine) 3
S141 Rear of Engine (Diesel Engine) 3
S142 Rear of Engine(Diesel) N/S
S150 Near G110 T/O N/S
S152 Near Data Link Connector T/O N/S
S153 Near G110 T/O N/S
S154 Near G110 T/O N/S
S171 Near Crankshaft Position Sensor 3
S173 Near Body Grounds G106 and G107
1
S174 Near Body Grounds G106 and G107
1
S175 Near Engine Harness T/O 1
S176 Near Engine Harness T/O 1
S177 Near Engine Harness T/O 1
S178 Near ABS Controller T/O 1
S179 Near ABS Controller T/O 1
S180 Left Rear of Engine Compartment N/S
Splice Number
Location Fig.
S181 Near ABS Controller T/O 1
S182 Near Engine Harness T/O 1
S183 Near G110 T/O N/S
S201 Near Headlamp Switch T/O 4
S202 Near Stop Lamp Switch T/O 4
S203 Near Stop Lamp Switch T/O 4
S204 Near Branch to Instrument Cluster 4
S205 Near Branch to Instrument Cluster 4
S206 Near Branch to Rear Window Defogger Switch
4
S207 Near Shift Interlock T/O 4
S209 Near Branch to Shift Interlock T/O 4
S210 Near Transfer Case Illumination Lamp T/O
4
S211 Near Branch to Graphic Display Module/Vehicle Information Center
4
S212 Near Stoplamp T/O 4
S214 Near Passenger Airbag T/O 4
S215 Left Side of Steering Column 4
S216 Near Passenger Airbag T/O 4
S218 Near Passenger Airbag T/O 4
S219 Near Branch to Graphic Display Module/Vehicle Information Center
4
S220 Near Passenger Airbag T/O 4
S221 On HVAC Harness 6
S222 On HVAC Harness 6
S223 On HVAC Harness 6
S226 On HVAC Harness 6
S300 Near Left Kick Panel 5
S301 Near Left Kick Panel 5
S302 Near Left Kick Panel 5
S303 Near Branch to Floor Console 7
S304 Near Power Amp T/O 8
S305 Near Branch to Left Rear Door 7
S306 Near Branch to Left Rear Door 7
S307 Near Branch to Left Rear Door 7
S308 Near Branch to Power Amplifier 7
S309 In Branch to Power Amplifier 7
S310 Near Branch to Power Amplifier 7
S311 Left Rear Quarter Panel 7
S312 Left Rear Quarter Panel 7
S314 Top of Left Rear Quarter Panel 7
Splice Number
Location Fig.
S315 Top of Left Rear Quarter Panel 7
S316 Near Right Side T/O for Liftgate 8
S317 In Branch to Power Amplifier 7
S318 In Branch to Power Amplifier 7
S319 Near Branch to Right Rear Door Ajar Switch
8
S320 In Branch to Dome/Reading Lamp 9
S321 Between Day/Night Mirror T/O and Right Vanity Mirror T/O
9
S322 Between Day/Night Mirror T/O and Right Vanity Mirror T/O
9
S323 Near Day/Night Mirror T/O 9
S324 In Left Front Door, Between Power Window Motor T/O and Power Mirror T/O
10
S325 In Right Front Door, Near Power Window Motor T/O
10
S326 In Right Front Door, Near Power Window Motor T/O
10
S327 In Right Front Door, Near Power Window Motor T/O
10
S328 In Liftgate, Near Rear Window Defogger T/O
11
S329 In Liftgate, Near Rear Wiper Motor T/O
11
S330 In Factory Trailer Tow Harness, Near Body Harness Connector
7
S331 In Aftermarket Trailer Tow Harness N/S
S332 In Liftgate, Near Left Body Connectors
11
S333 Near T/O to Right Power Seat 8
S334 In Branch to Dome Reading Lamp 9
S335 In Branch to Power Amplifier 7
S336 In Liftgate, Between Rear Wiper Motor T/O and Liftgate Lock Motor T/O
11
S340 In Aftermarket Trailer Tow Harness N/S
S341 Near Body Harness Connector N/S
S342 Near Body Harness Connector N/S
S343 Near Body Harness Connector N/S
S400 In Right Power Seat Harness, Near Lumbar Motor T/O
N/S
S401 In Right Power Seat Harness, Near Riser Motor Sensor T/O
N/S
Splice Number
Location Fig.
S402 In Right Power Seat Harness, Between Riser Motor Sensor T/O and Heated Seat Module T/O
N/S
S403 In Right Power Seat Harness, Near Seat Switch T/O
N/S
S404 In Left Power Seat Harness, Near Seat Motor T/Os
N/S
S405 In Left Power Seat Harness, Near Seat Motor T/Os
N/S
S406 In Left Power Seat Harness, In Branch to Seat Switch
N/S
S407 In Right Power Seat Harness, Near Lumbar Motor T/O
N/S
S414 Near Left Front Turn Signal Bulb Socket
N/S
S415 Near Right Front Park Lamp Bulb Socket
N/S
Splice Number
Location Fig.
S416 In Left Tail Lamp Harness, Between Body Connector and Grommet
N/S
S417 In Right Tail Lamp Harness, Between Body Connector and Grommet
N/S
S418 In License Plate Lamp Harness 11
S419 In License Lamp Harness 11
S421 Fuse Link at PDC N/S
S430 Behind Drivers Airbag N/S
S431 Behind Drivers Airbag N/S
S432 Behind Drivers Airbag N/S
S433 Behind Drivers Airbag N/S
