8W-63-5 Memory Power Seats

1998 Jeep Grand Cherokee ZJ Export Service Manual — page 837 · 61 machine-read labels

1998 Jeep Grand Cherokee ZJ Export Service Manual — page 837 wiring diagram

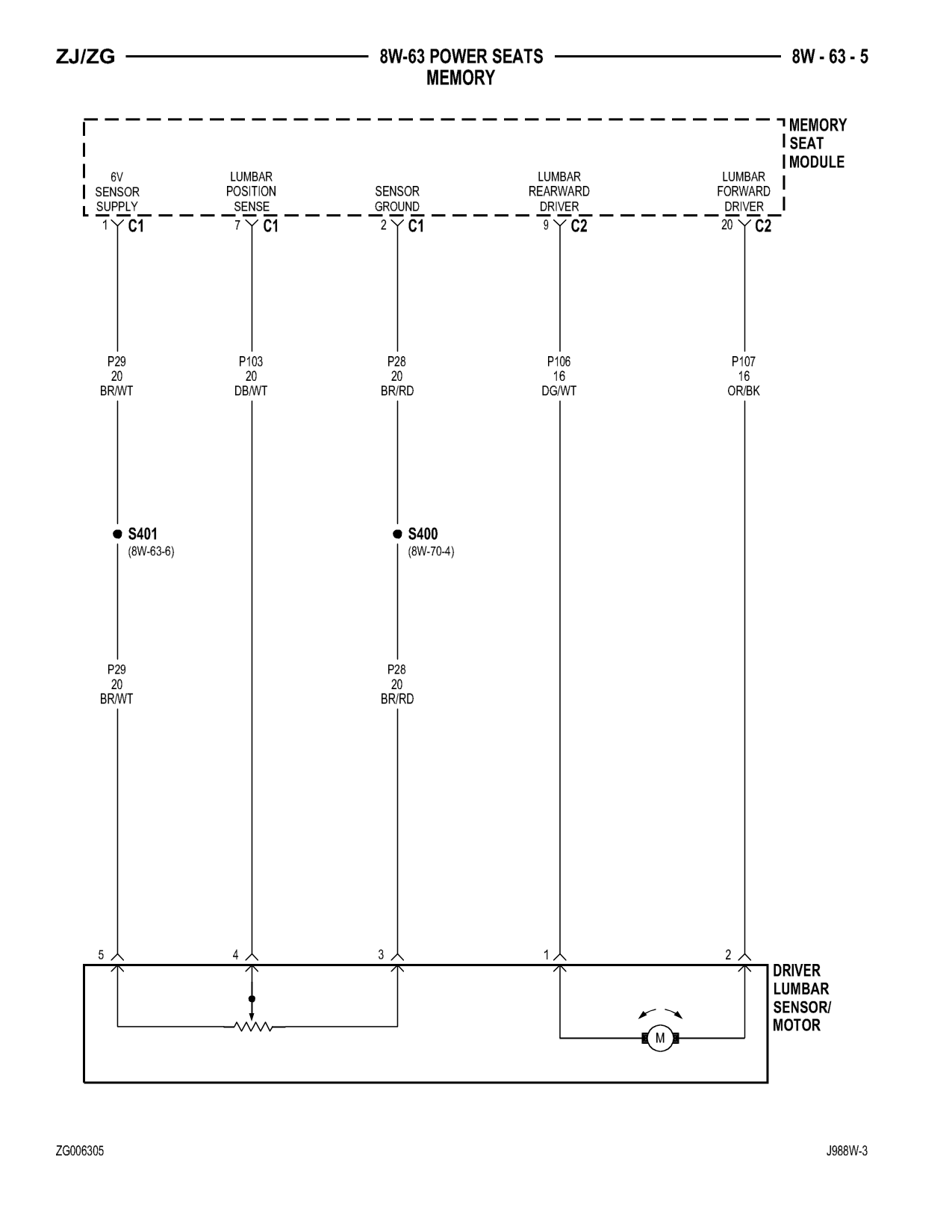

ZJ/ZG8W-63POWERSEATS8W63-5MEMORYeeMEMORYSEATMODULE6VLUMBARLUMBARLUMBARSENSORPOSITIONSENSORREARWARDFORWARDSUPPLYSENSEGROUNDDRIVERDRIVERC1C1C1C220C2P29P103P28P106P1072020201616BRIWTDB/WTBR/RDOR/BKS401$400(8W-63-6)(8W-70-4)P29P282020BRIWTBR/RDDRIVERLUMBARaNSENSOR/MOTORJ988W-3

Labels on this sheet: ZJ/ZG, 8W-63, POWER, SEATS, 8W, 63-5, MEMORY, SEAT, MODULE, 6V, LUMBAR, SENSOR, POSITION, REARWARD, FORWARD, SUPPLY, SENSE, GROUND, DRIVER, C1, C2, 20, P29, P103, P28, P106, P107, 16, BRIWT, BR/RD, S401, (8W-63-6), (8W-70-4), SENSOR/, MOTOR, J988W-3
