8W-12-27 Junction Block

1998 Jeep Grand Cherokee ZJ Export Service Manual — page 619 · 55 machine-read labels

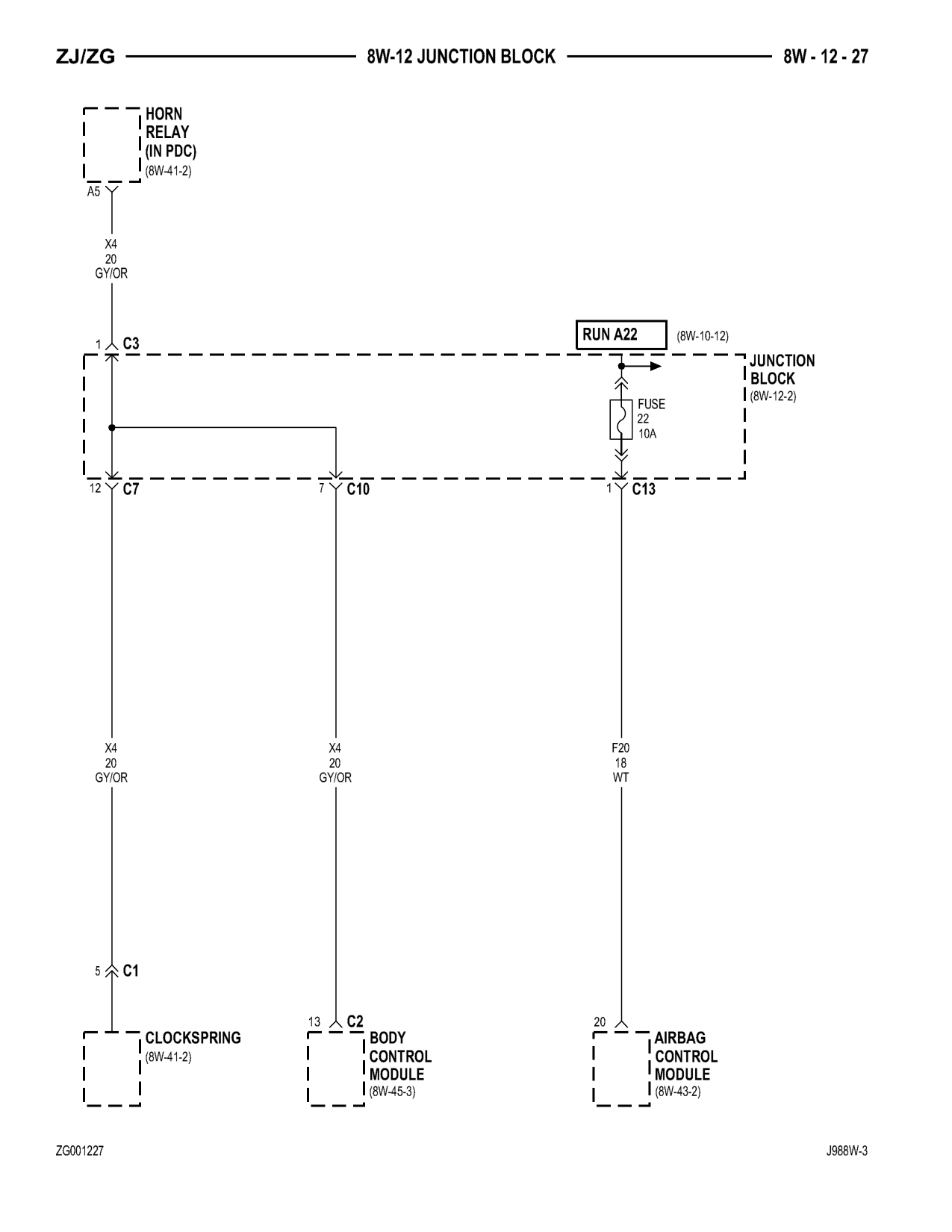

1998 Jeep Grand Cherokee ZJ Export Service Manual — page 619 wiring diagram

ZJ/ZG8W-12JUNCTIONBLOCK8W1227HORNRELAY(INPDC)x420GY/ORC3(8W-10-12)eeJUNCTIONBLOCKFUSE2210A12eeeC7C10C13x4x4F20202018GY/ORGY/ORWT5C113C220BODYAIRBAGCONTROLCONTROL(8W-41-2)MODULEMODULEoolool(8W-45-3)ool(8W-43-2)26001227J988W-3

Labels on this sheet: ZJ/ZG, 8W-12, JUNCTION, BLOCK, 8W, 12, 27, HORN, RELAY, (IN, PDC), 20, GY/OR, C3, (8W-10-12), FUSE, 22, 10A, C7, C10, C13, F20, 18, WT, C1, 13, C2, BODY, AIRBAG, CONTROL, MODULE, (8W-45-3), (8W-43-2), J988W-3
