8W-63-18 With Memory Power Seat Seat

1996 Jeep Grand Cherokee ZJ Service Manual — page 783 · 69 machine-read labels

1996 Jeep Grand Cherokee ZJ Service Manual — page 783 wiring diagram

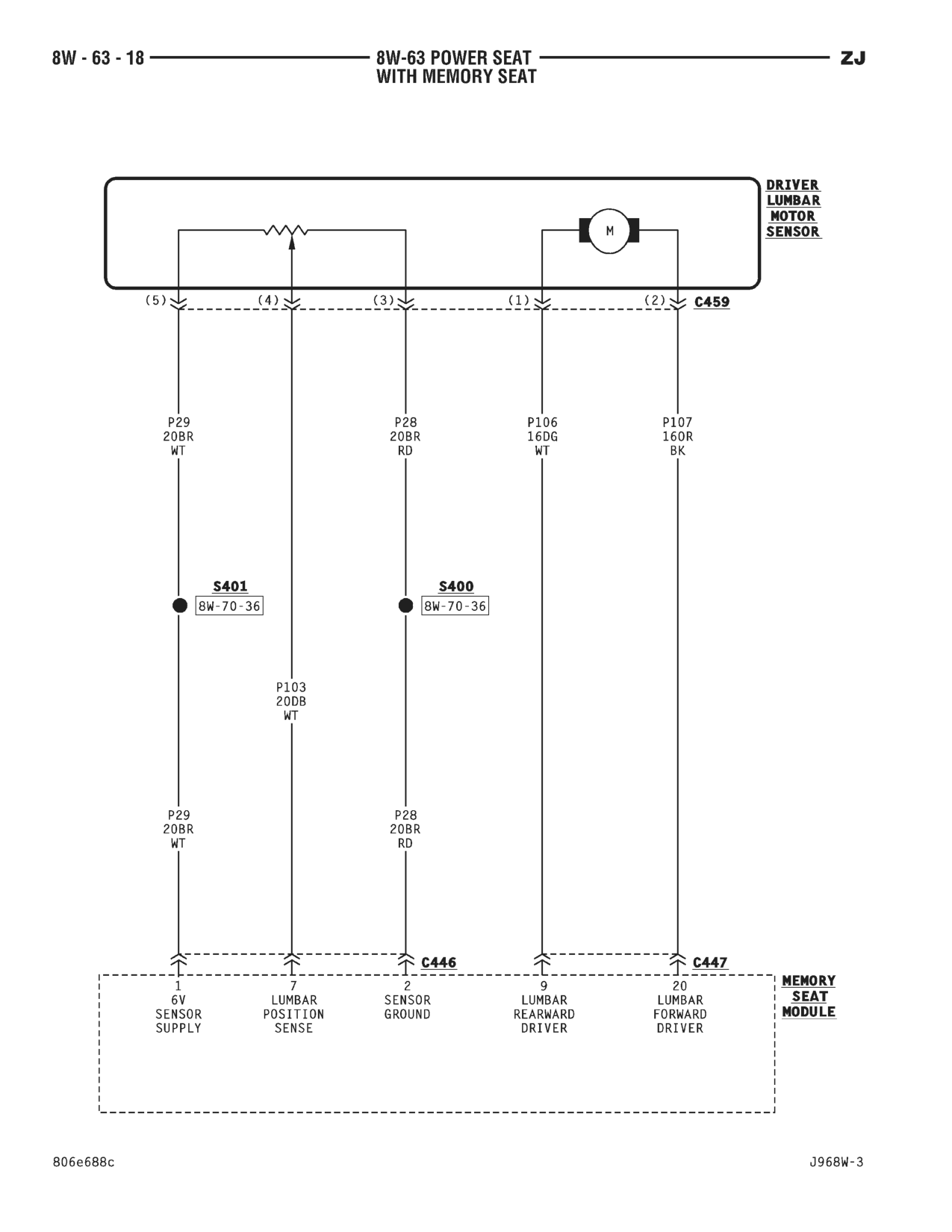

8W63188W-63POWERSEATZJWITHMEMORYSEATDRIVERLUMBARMOTORSENSOR(5)(4)(3)(1)(2)C459P29P28P106P10720BR20BR16DG160RWTRDWTBK$400$401|sw-70-36e@8W-70-36P10320DBWTP29P2820BR20BRWTRDC446TC44720MEMORY6VLUMBARSENSORLUMBARLUMBARSEATSENSORPOSITIONGROUNDREARWARDFORWARDMODULESUPPLYSENSEDRIVERDRIVER806e688cJ968W-3

Labels on this sheet: 8W, 63, 18, 8W-63, POWER, SEAT, ZJ, WITH, MEMORY, DRIVER, LUMBAR, MOTOR, SENSOR, (5), (4), (3), (1), (2), C459, P29, P28, P106, P107, 20BR, 16DG, 160R, WT, RD, BK, $400, $401, P103, 20DB, C446, C447, 20, 6V, POSITION, GROUND, REARWARD, FORWARD, MODULE, SUPPLY, SENSE, J968W-3
