8W-62-6 Power Mirrors

1996 Jeep Grand Cherokee ZJ Service Manual — page 765 · 66 machine-read labels

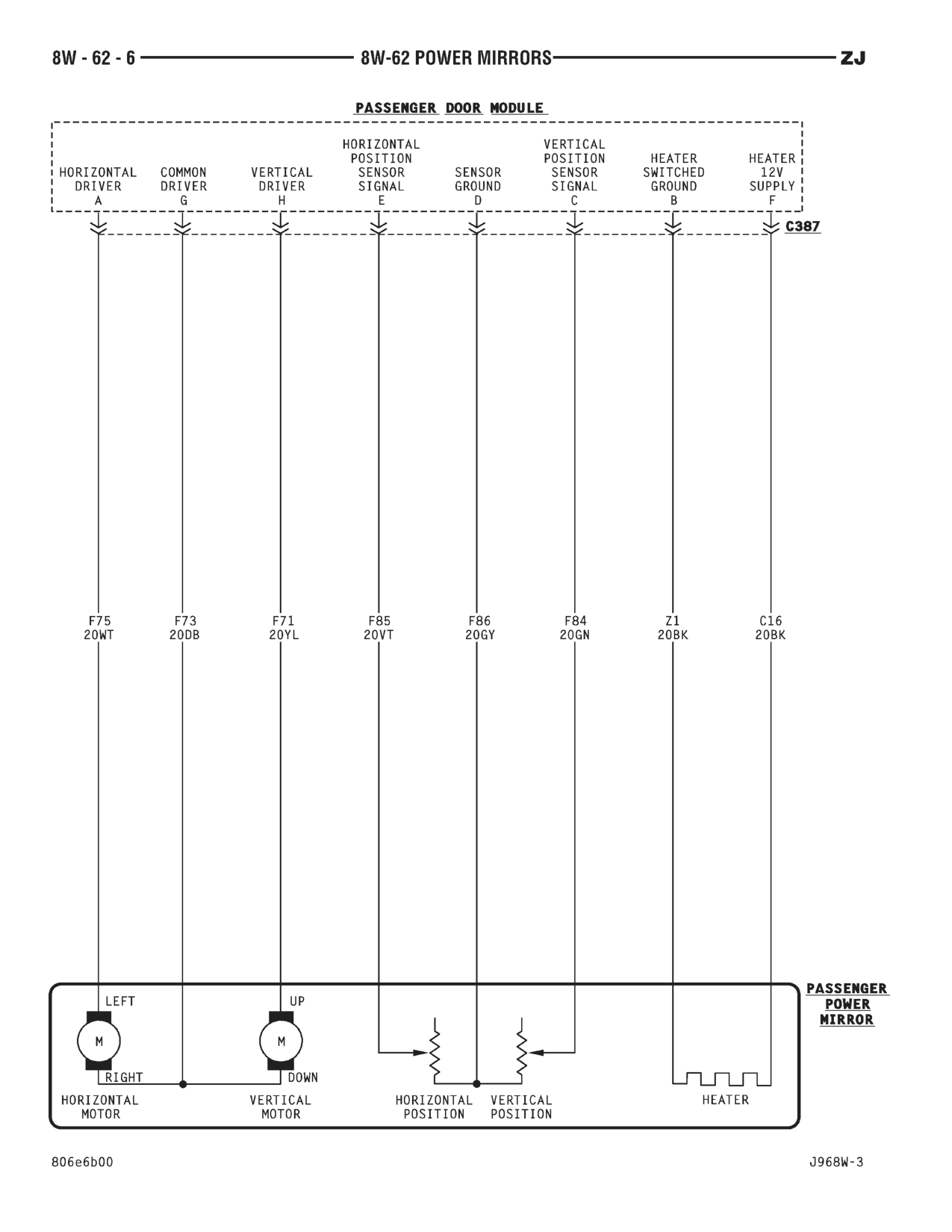

1996 Jeep Grand Cherokee ZJ Service Manual — page 765 wiring diagram

8W62-68W-62POWERMIRRORSZJPASSENGERDOORMODULEHORIZONTALVERTICALPOSITIONPOSITIONHEATERHEATERHORIZONTALCOMMONVERTICALSENSORSENSORSENSORSWITCHED12VDRIVERDRIVERDRIVERSIGNALGROUNDSIGNALGROUNDSUPPLY0387KKF75F73F71F85F86F84Z1C1620WT20DB20YL20VT20GY20GN20BK20BKPASSENGERLEFTUPPOWERMIRRORRIGHTDOWNHORIZONTALVERTICALHORIZONTALVERTICALHEATERMOTORMOTORPOSITIONPOSITION806e6b00

Labels on this sheet: 8W, 62-6, 8W-62, POWER, MIRRORS, ZJ, PASSENGER, DOOR, MODULE, HORIZONTAL, VERTICAL, POSITION, HEATER, COMMON, SENSOR, SWITCHED, 12V, DRIVER, SIGNAL, GROUND, SUPPLY, F75, F73, F71, F85, F86, F84, Z1, C16, 20WT, 20DB, 20YL, 20VT, 20GY, 20BK, LEFT, UP, MIRROR, RIGHT, DOWN, MOTOR, 806e6b00
